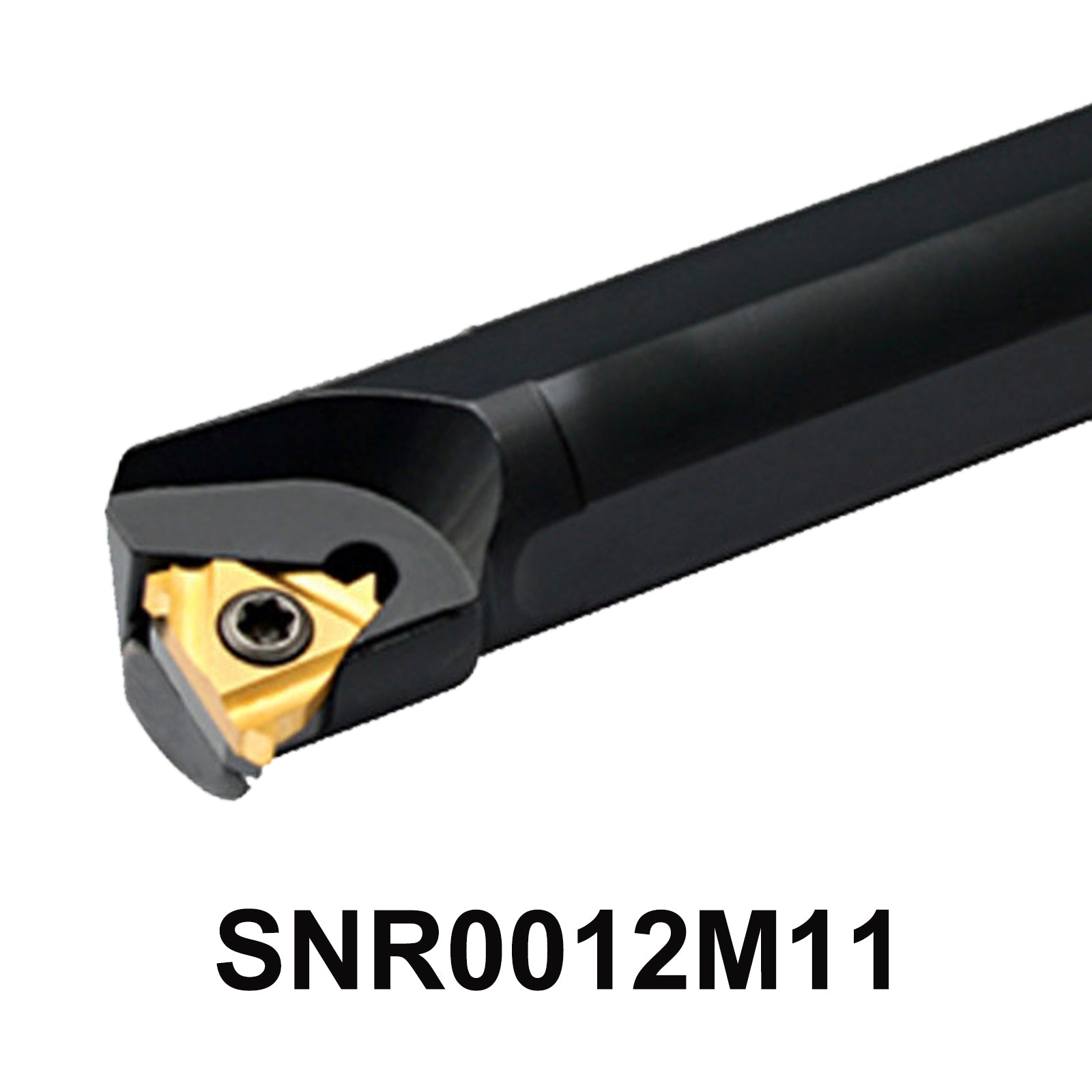

SNR0012M11 Internal Threading Tool | High-Quality CNC Lathe Cutter Holder | Right Cut
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNR0012M11 Internal Threading Turning Tool, expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 16mm and a cutting length of 150mm, compatible with 11NR inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNR0012M11
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Right cut
- Height of tool nose : 00mm
- ΦDmin :16mm
- Φd :12mm
- Width of body of cutting tool : 12mm
- Length of cutting tool : 150mm
- Size of blade :
- 1.Side length of traingle : 11mm
- 2.Incircle : 6.35mm
-
Applicable blade : 11NR
- Screw : M2.5*7
- Wrench : T8
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNR0012M11 Internal Threading Tool
1 * "T" Type wrench
1 * M2.5*7 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNR0012M11 Internal Threading Tool Holder SNR0012M11 SNR0012 SNR0012 M11 CNC Cutter Lathe Shank Carbide Insert
-
Key Features of the SNR0012M11 Internal Threading Tool
-
Why the SNR0012M11 Is Essential for Your CNC Machining Tasks
5-Point Description
-
Precision Internal Threading
The SNR0012M11 is expertly designed for creating internal threads with high accuracy. The right-hand cutting direction and screw compression type pressing plate optimize the threading process, providing clean and precise results. -
Robust Construction and Design
Constructed from high-quality materials, this internal threading tool boasts a sturdy body width of 12mm and a length of 150mm, ensuring durability and stability during rigorous machining tasks. -
User-Friendly Assembly
The package includes essential components like screws (M2.57), a T8 wrench, and a lateral screw (M38C) for hassle-free installation. Enjoy a seamless setup and get to work quickly. -
Versatile Cutting Capability
Compatible with 11NR inserts, this tool is designed to handle various materials and threading requirements, making it an indispensable addition to any machining workshop. -
Enhanced Machining Efficiency
With a minimum diameter (ΦDmin) of 16mm and a triangular blade size that includes an 11mm side length and a 6.35mm incircle, the SNR0012M11 ensures efficient cutting, making your CNC operations faster and more effective.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
