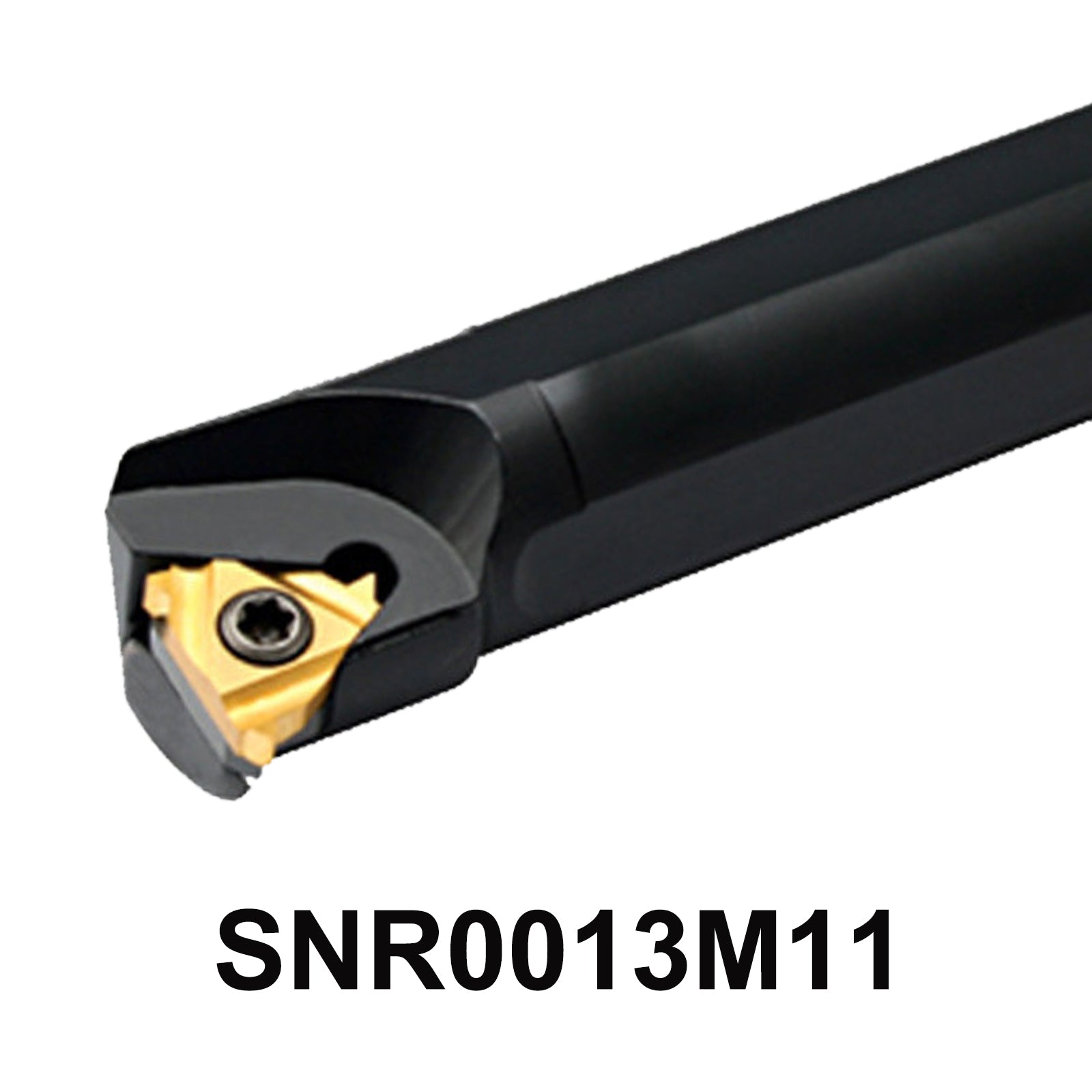

SNR0013M11 CNC Inner Threading Cutter – Right Cut, 150mm Length, Compatible with 11NR Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNR0013M11 Inner Threading Cutter Tool, expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 15mm and a cutting length of 150mm, compatible with 11NR inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNR0013M11
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Right cut
- Height of tool nose : 00mm
- ΦDmin :15mm
- Φd :13mm
- Width of body of cutting tool : 13mm
- Length of cutting tool : 150mm
- Size of blade :
- 1.Side length of traingle : 11mm
- 2.Incircle : 6.35mm
-
Applicable blade : 11NR
- Screw : M2.5*7
- Wrench : T8
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNR0013M11 Inner Threading Cutter Tool
1 * "T" Type wrench
1 * M2.5*7 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNR0013M11 Inner Threading Cutter Tool Holder SNR0013M11 SNR0013 SNR0013 M11 CNC Cutter Lathe Shank Carbide Insert
-
High-Quality CNC Tool Holder for Internal Thread Cutting – Compatible with 11NR Inserts
-
Efficient Right Cut Internal Threading Cutter – Easy Setup and Durable Performance
5-Point Description
-
Precision Internal Threading
The SNR0013M11 is specifically designed for precise internal threading operations. With a right-cutting direction, this tool offers clean, accurate threads every time. Whether you're cutting fine or coarse threads, the SNR0013M11 ensures consistent performance for complex internal thread patterns. -
Durable and Compact Design
Built with a robust tool body, the SNR0013M11 features a 13mm body width and a 150mm length, designed for stability and reduced vibration during cutting. The ΦDmin of 15mm allows for versatility in various internal threading applications, while the high-quality construction guarantees a long tool life, even in demanding environments. -
Compatible with 11NR Inserts
This threading cutter is compatible with 11NR inserts, offering machinists the flexibility to select the appropriate insert for their specific material and threading needs. Inserts are easily replaceable, making this tool versatile for a wide range of internal threading tasks. -
Easy Installation with Included Accessories
The package includes everything you need for quick installation: an M2.5*7 screw, M3*8C lateral screw, and a T8 wrench for easy tool setup. These accessories ensure you can start working immediately with minimal downtime. -
Ideal for CNC Lathe Operations
The SNR0013M11 threading cutter is ideal for CNC lathe operators looking for a reliable and easy-to-use tool for internal threading. Its high cutting precision, ease of use, and compatibility with 11NR inserts make it the perfect choice for professionals seeking quality and performance in their machining tasks.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
