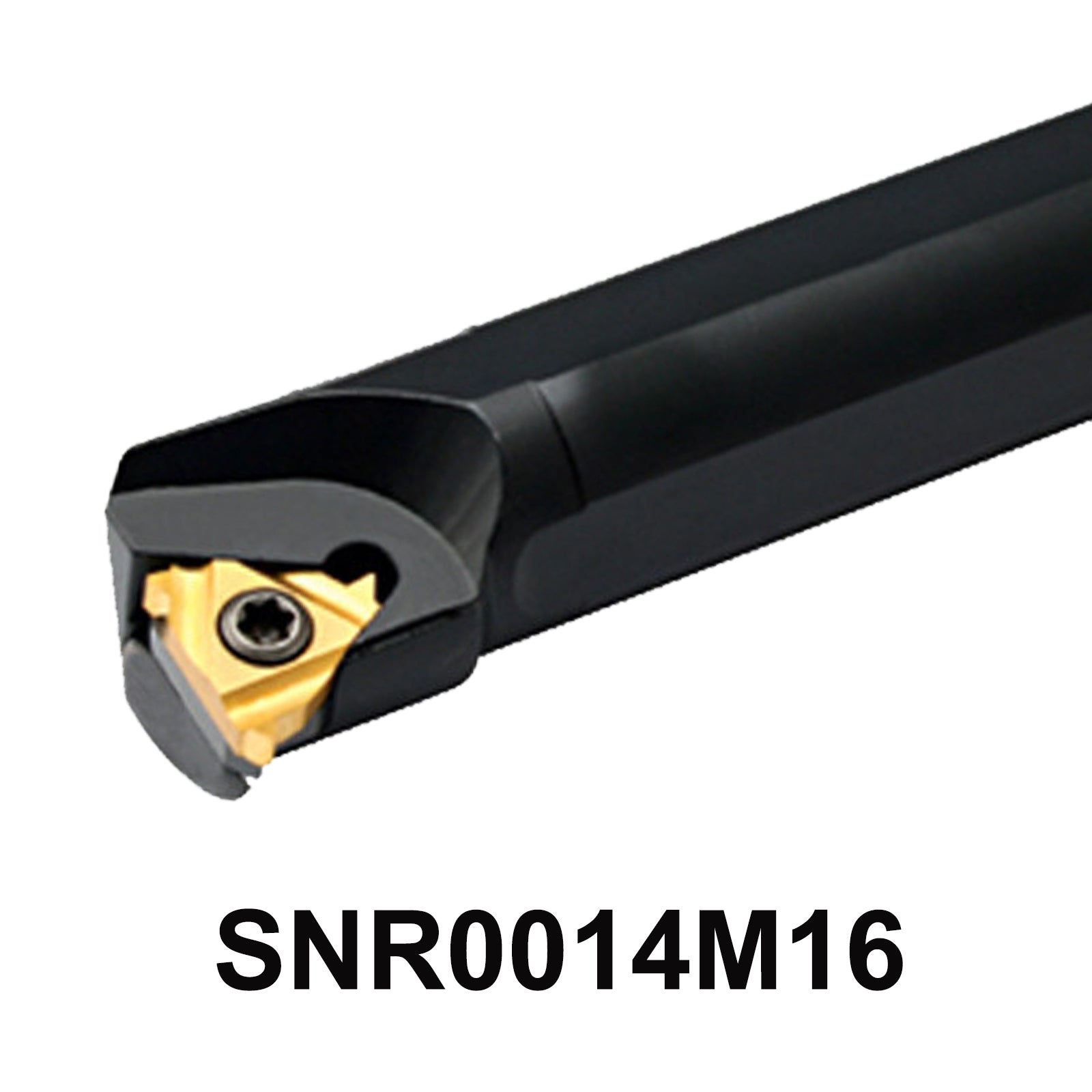

SNR0014M16 Inner Threading Cutter for CNC – High-Precision Tool with 16NR Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNR0014M16 Inner Threading Cutter, expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 17mm and a cutting length of 150mm, compatible with 16NR inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNR0014M16
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Right cut
- Height of tool nose : 00mm
- ΦDmin :17mm
- Φd :14mm
- Width of body of cutting tool : 14mm
- Length of cutting tool : 150mm
- Size of blade :
- 1.Side length of traingle : 16mm
- 2.Incircle : 9.525mm
-
Applicable blade : 16NR
- Screw : M3.5*10
- Wrench : T15
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNR0014M16 Inner Threading Cutter
1 * "T" Type wrench
1 * M3.5*10 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNR0014M16 Inner Threading Cutter SNR0014M16 SNR0014 SNR0014 M16 CNC Cutter Lathe Shank Carbide Insert
-
Achieve High-Quality Internal Thread Cuts with the SNR0014M16 Cutter
-
Optimized for Efficiency and Durability in CNC Lathe Operations
5-Point Description
-
Precise Internal Threading: The SNR0014M16 Inner Threading Cutter is designed specifically for internal thread cutting with a right-cutting direction, ensuring clean and accurate threads every time.
-
High-Quality Construction: Built with durable materials and featuring a screw compression-type pressing plate, this tool delivers reliable performance and long-lasting durability for heavy-duty machining applications.
-
Compatible with 16NR Inserts: The cutter uses 16NR inserts, which offer superior cutting performance and versatility, providing high efficiency in a range of threading applications.
-
Comprehensive Tool Kit: The package includes everything you need for installation, including the M3.5*10 screws, M3*8C lateral screw, and T15 wrench, ensuring hassle-free setup and operation.
-
Efficient Design for CNC Lathes: With a 150mm cutting tool length, 14mm body width, and 17mm minimum diameter, this cutter is specifically designed for CNC lathes, optimizing performance in precision machining.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
