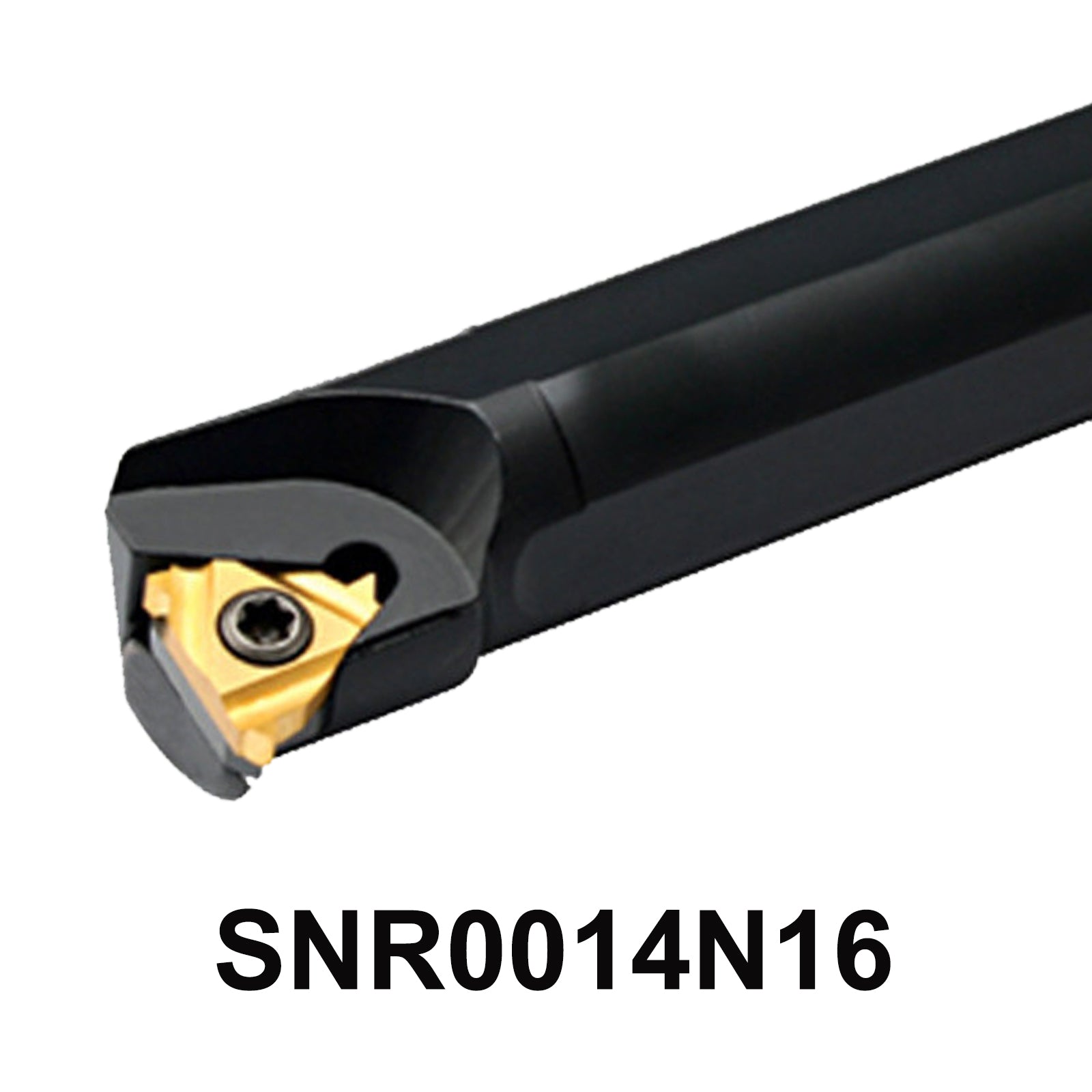

SNR0014N16 CNC Threading Tool Holder – Right Cut Internal Thread Tool for 16NR Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNR0014N16 Lathe Threading Tools, expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 17mm and a cutting length of 160mm, compatible with 16NR inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNR0014N16
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Right cut
- Height of tool nose : 00mm
- ΦDmin :17mm
- Φd :14mm
- Width of body of cutting tool : 14mm
- Length of cutting tool : 160mm
- Size of blade :
- 1.Side length of traingle : 16mm
- 2.Incircle : 9.525mm
-
Applicable blade : 16NR
- Screw : M3.5*10
- Wrench : T15
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNR0014N16 Lathe Threading Tools
1 * "T" Type wrench
1 * M3.5*10 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNR0014N16 Internal Threading Turning Tools Holder SNR0014N16 SNR0014 SNR0014 N16 CNC Cutter Lathe Shank Carbide Insert
-
High-Performance CNC Threading Tool for Reliable Internal Threading Operations
-
Key Features of the SNR0014N16 CNC Tool Holder
5-Point Description
-
Precision Internal Threading: The SNR0014N16 CNC Threading Tool is designed for high-precision internal threading with a right-cut direction. Whether you're working on small or large batches, this tool ensures clean, accurate threads every time, making it an essential part of any CNC lathe setup.
-
Durable and Sturdy Construction: Crafted with a 14mm body width and 160mm overall length, this tool holder offers exceptional rigidity and durability, even under heavy cutting forces. The ΦDmin of 17mm and Φd of 14mm dimensions make it suitable for a wide range of machining applications.
-
Compatible with 16NR Inserts: The SNR0014N16 is compatible with 16NR inserts, designed with a 16mm side length and 9.525mm incircle for superior cutting performance. These inserts provide enhanced cutting efficiency and increased tool life, ensuring optimal performance during internal threading operations.
-
Complete Tooling Package: The package includes the tool holder, M3.5*10 screws, M3*8C lateral screw, and T15 wrench, making it a complete, ready-to-use solution. These accessories allow for quick and easy tool setup, reducing downtime and increasing productivity on the shop floor.
-
Versatile and Reliable for Various Applications: The SNR0014N16 CNC threading tool is versatile, offering high-quality performance in a variety of machining scenarios. Its robustness and precision make it ideal for both low and high-volume production runs, providing consistent results and minimizing tool wear.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
