Description:

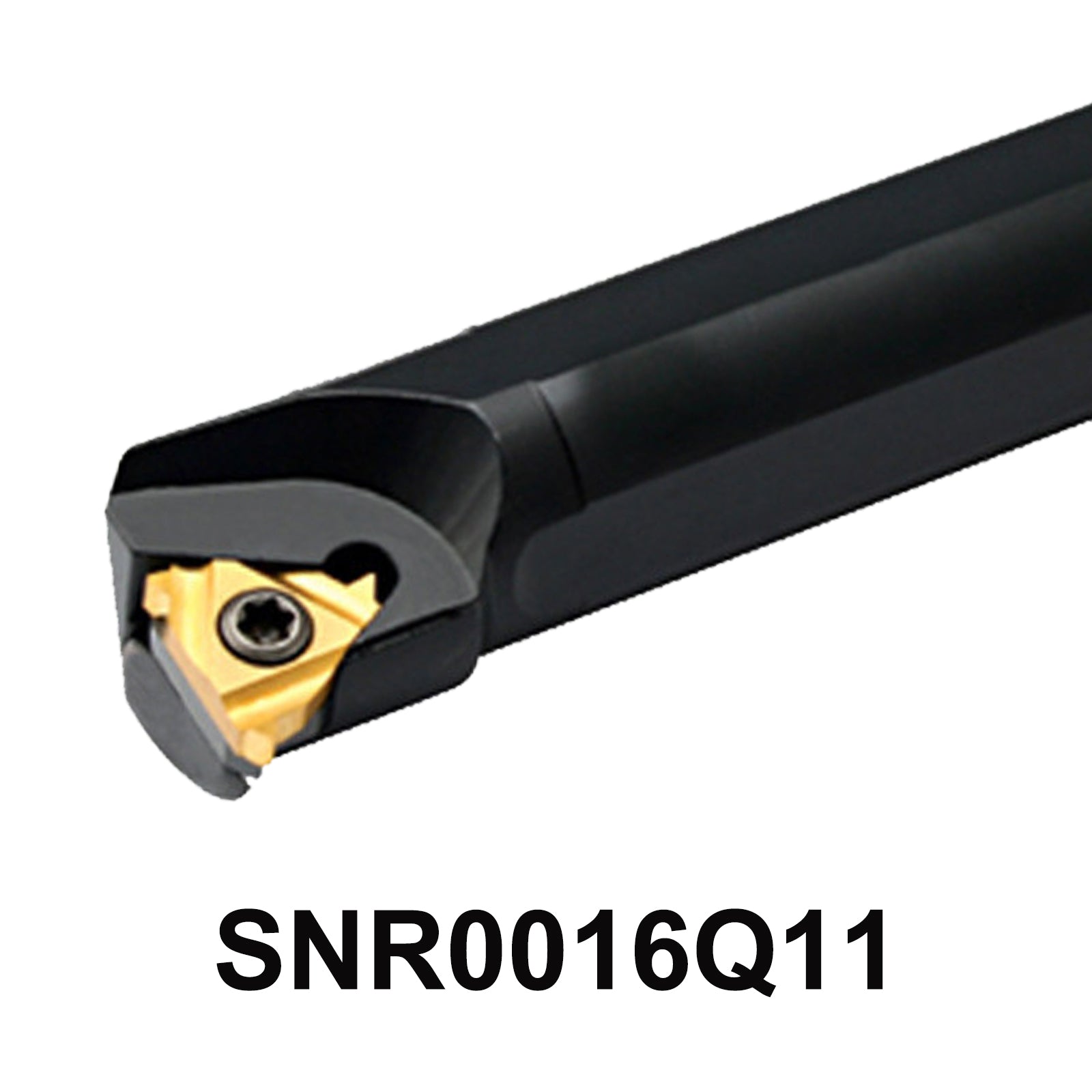

Introducing the SNR0016Q11 Inner Threading Cutter Tool, expertly crafted for precision machining and reliability in internal threading applications

This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 16mm and a cutting length of 180mm, compatible with 11NR inserts ,allowing for accurate and efficient internal cuttings

Product parameters:

• Tool Holder Model:  SNR0016Q11

• Tool Holder Material : Carbide Steel, Carbon Steel

• Model of Pressing plate :  Screw compession type
• Thread form : Internal thread
• Cutting direction : Right cut
• Height of tool nose : 00mm
• ΦDmin :18mm
• Φd :16mm
• Width of body of cutting tool : 16mm
• Length of cutting tool : 180mm
• Size of blade :
• 1.Side length of traingle : 11mm
• 2.Incircle : 6.35mm
• Applicable blade : 11NR

• Screw : M2.5*7
• Wrench : T8
• Lateral screw : M3*8C
• Detailed Dimensions of the tool holder : as pictured

Package Contents:

1 * SNR0016Q11 Internal Threading Bars

1 * "T" Type wrench

1 * M2.5*7 Type Screw

1 * M3*8C Type Lateral Screw

Features:

1.High-Quality Construction,ensures longevity and reliability

2.Unparalleled performance and tight tolerances

3.High grip, strong impact resistance, obvious speed advantage

4.Designed for precise grooving, ideal for complex machining tasks

5.The user can easily clamp and replace the blade and gasket with just a wrench

BEYOND SNR0016Q11 Internal Threading Bars SNR0016Q11 SNR0016 SNR0016 Q11 CNC Cutter Lathe Shank Carbide Insert

• Superior Quality Internal Threading Tool with Durable Holder and Accessories

• Complete Internal Threading Solution – Includes Tool Holder, Screws, and Wrench

5-Point Description

1. Precision Internal Threading: The SNR0016Q11 internal threading bar is designed for accurate right-cut threading operations on CNC lathes. With a tool length of 150mm and a body width of 13mm, it delivers precise, clean threads every time.

2. Durable Construction: Built from high-quality materials, this threading bar is engineered for durability and longevity, ensuring reliable performance even in the most demanding machining conditions.

3. Complete Kit for Quick Setup: The tool package includes the SNR0016Q11 tool holder, M2.57 screws, M38C lateral screw, and a T8 wrench, providing everything needed for quick installation and seamless operation.

4. Versatile Blade Compatibility: Compatible with the 11NR insert series, the threading bar supports various cutting applications and provides flexibility for a range of threading tasks, especially internal threads.

5. Easy Maintenance and Adjustment: The tool features a user-friendly design that simplifies maintenance and adjustments. The lateral screw and wrench included in the package ensure quick and easy tool changes.
