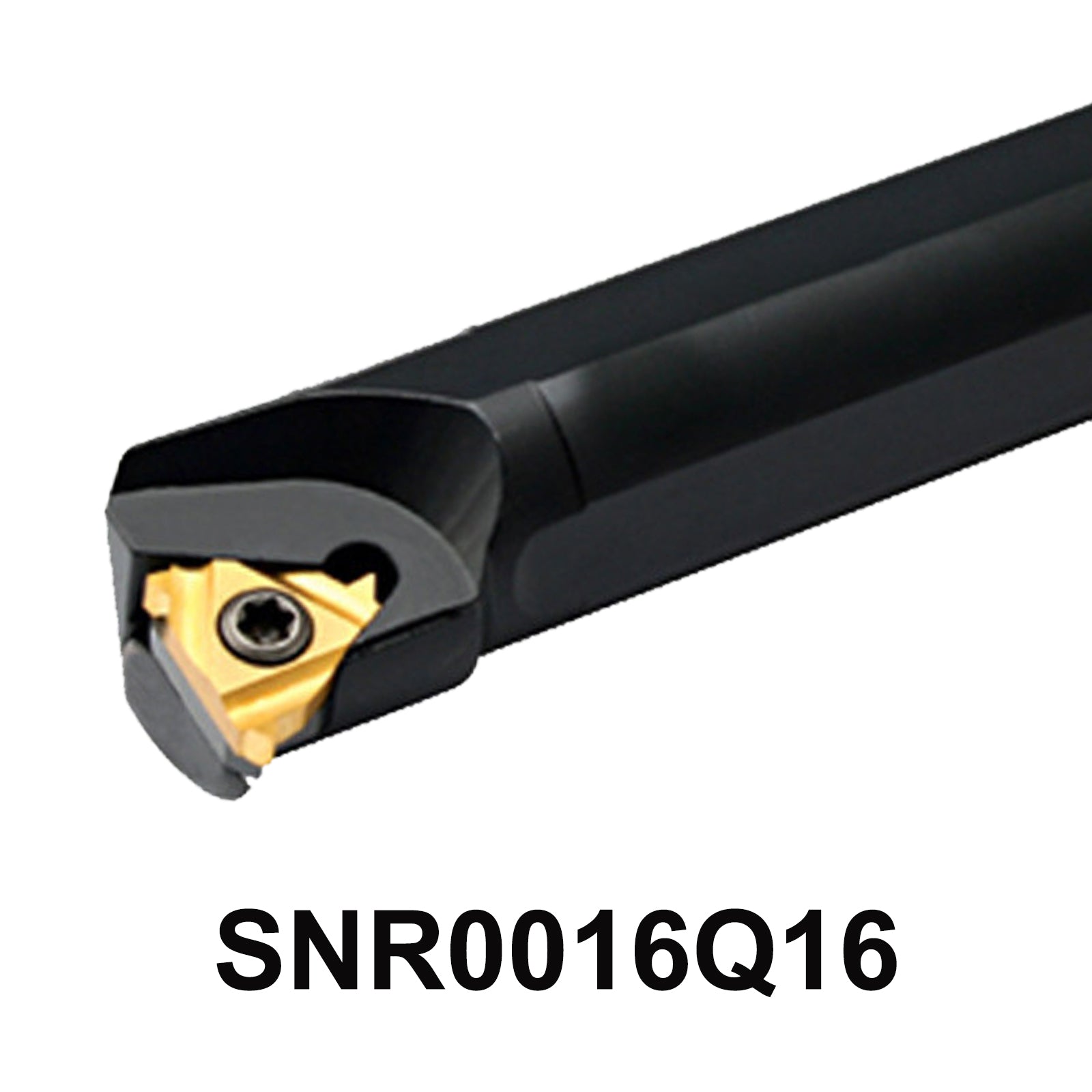

SNR0016Q16 Internal Threading Bar for CNC Lathes – Right Cut, 16NR Inserts, 180mm Length, High-Quality Tool Holder
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNR0016Q16 Internal Threading Bars expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 20mm and a cutting length of 180mm, compatible with 16NR inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNR0016Q16
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Right cut
- Height of tool nose : 00mm
- ΦDmin :20mm
- Φd :16mm
- Width of body of cutting tool : 16mm
- Length of cutting tool : 180mm
- Size of blade :
- 1.Side length of traingle : 16mm
- 2.Incircle : 9.525mm
-
Applicable blade : 16NR
- Screw : M3.5*10
- Wrench : T15
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNR0016Q16 Internal Threading Bars
1 * "T" Type wrench
1 * M3.5*10 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNR0016Q16 Internal Threading Bars SNR0016Q16 SNR0016 SNR0016 Q16 CNC Cutter Lathe Shank Carbide Insert
-
Maximize Precision and Durability with the SNR0016Q16 Internal Threading Bar
-
Key Features and Benefits of the SNR0016Q16 CNC Threading Tool
5-Point Description
-
Right-Cut Internal Threading: The SNR0016Q16 is designed specifically for internal threading applications with a right-cut direction, ensuring precise, clean cuts even in challenging materials. Perfect for CNC lathe operations requiring high accuracy in internal threading.
-
Optimized Tool Dimensions: The tool features a 16mm width and 180mm length, providing excellent stability and rigidity during operations. The ΦDmin (minimum diameter) of 20mm and Φd (tool shank diameter) of 16mm make it suitable for a variety of internal threading applications.
-
Compatible with 16NR Inserts: This threading bar is designed to work with 16NR inserts, offering versatility and performance across a range of materials. The inserts are easy to install and replace, making maintenance simple and cost-effective.
-
Durable and High-Quality Construction: Constructed from high-quality materials, the SNR0016Q16 tool holder ensures long-lasting durability and optimal performance. The screw compression-type pressing plate ensures a secure fit, preventing movement during operation.
-
Easy Setup and Installation: The package includes all necessary components for quick setup, including M3.5*10 screws, M3*8C lateral screw, and a T15 wrench for fast and hassle-free assembly. Get started with minimal downtime and achieve consistent threading results.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
