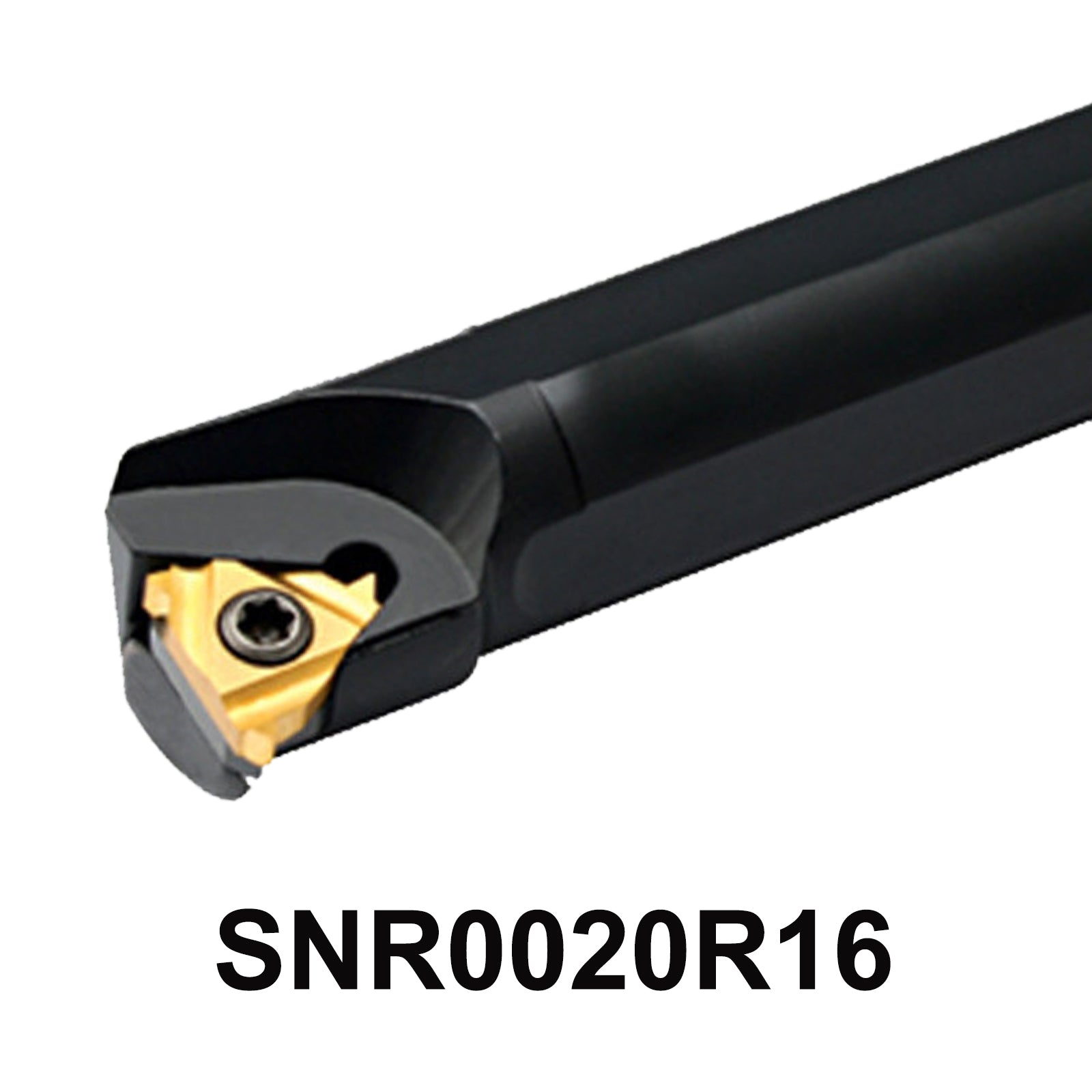

SNR0020R16 Thread Tool for CNC Lathe – Precision Right-Cut Internal Thread Tool with 16NR Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNR0020R16 Thread Tool For Lathe expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 24mm and a cutting length of 200mm, compatible with 16NR inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNR0020R16
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Right cut
- Height of tool nose : 00mm
- ΦDmin :24mm
- Φd : 20mm
- Width of body of cutting tool : 20.mm
- Length of cutting tool : 200mm
- Size of blade :
- 1.Side length of traingle : 16mm
- 2.Incircle : 9.525mm
-
Applicable blade : 16NR
- Screw : M3.5*10
- Wrench : T15
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNR0020R16 Thread Tool For Lathe
1 * "T" Type wrench
1 * M3.5*10 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNR0020R16 Thread Tool For Lathe SNR0020R16 SNR0020 SNR0020 R16 CNC Cutter Lathe Shank Carbide Insert
-
SNR0020R16 Thread Tool – Reliable CNC Lathe Cutter for Internal Threading Applications
-
Maximize CNC Lathe Efficiency with the SNR0020R16 Right-Cut Thread Tool for Precise Internal Threading
5-Point Description
-
Right-Cut Internal Threading Tool: The SNR0020R16 is designed for right-cut internal threading tasks, ensuring clean, precise threads every time. Ideal for a variety of CNC lathe operations, it is built to handle tough materials with ease.
-
High-Quality Construction: With a 20mm body width and 200mm length, this tool is robust and durable, designed to withstand heavy cutting conditions while providing reliable performance over extended use.
-
Compatible with 16NR Inserts: The tool is optimized for use with 16NR inserts, known for their excellent cutting edge stability and long tool life. These inserts provide smooth, precise threading and reduce the need for frequent tool changes.
-
Complete Package for Convenience: The SNR0020R16 comes with a tool holder, M3.5*10 screws, a T15 wrench, and M3*8C lateral screws, making it easy to integrate into your CNC setup and get started quickly without needing additional accessories.
-
Versatile and Precise: With an outer diameter minimum of 24mm (ΦDmin) and an incircle size of 9.525mm for the blade, this tool excels in both general and precision machining applications, making it perfect for diverse internal threading needs.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
