SNR0020R22 CNC Thread Tool Holder | Right Cut Internal Thread Lathe Tool
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

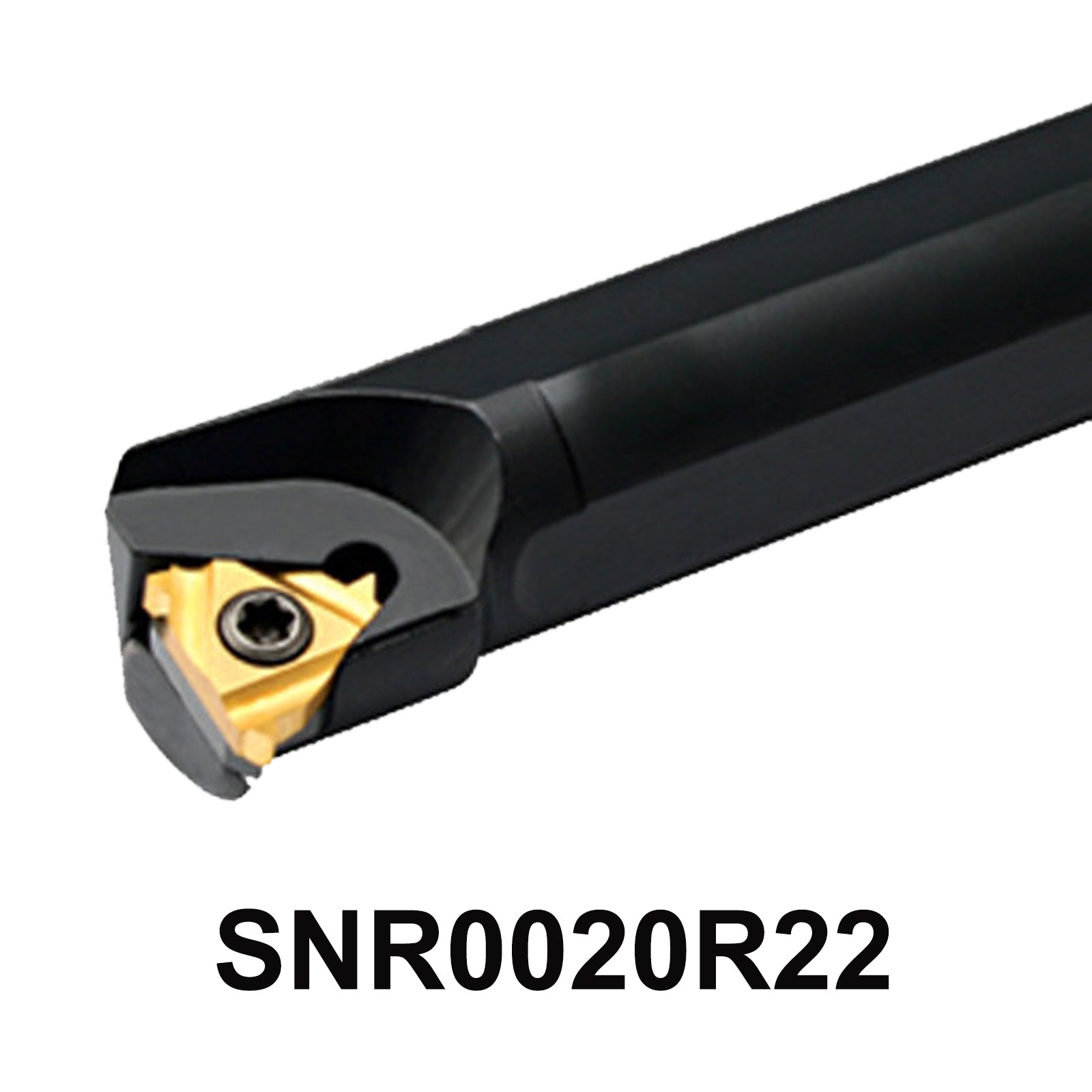

Introducing the SNR0020R22 Thread Tool For Lathe, expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 24mm and a cutting length of 200mm, compatible with 22NR inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNR0020R22
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Right cut
- Height of tool nose : 00mm
- ΦDmin :24mm
- Φd :20mm
- Width of body of cutting tool : 20mm
- Length of cutting tool : 200mm
- Size of blade :
- 1.Side length of traingle : 22mm
- 2.Incircle : 12.7mm
-
Applicable blade : 22NR
- Shim: STM22T3R
- Screw : M4*14
- Wrench : T15
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNR0020R22 Thread Tool For Lathe
1 * STM22T3R Shim
1 * "T" Type wrench
1 * M4*14 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNR0020R22 Thread Tool For Lathe SNR0020R22 SNR0020 SNR0020 R22 CNC Cutter Lathe Shank Carbide Insert
-
Precision Threading Performance for CNC Lathes with Right-Cut Design
-
Key Features for High-Efficiency Thread Cutting and Tool Longevity
5-Point Description
-
Right-Cut Internal Threading: Designed for right-cut internal threading, the SNR0020R22 provides superior precision and efficiency in creating clean, accurate threads for a wide range of materials.
-
Sturdy and Reliable Construction: With a 200mm tool length and a body width of 20mm, this tool holder offers excellent rigidity and durability, ensuring high-performance cutting over extended periods.
-
Versatile Insert Compatibility: The SNR0020R22 is compatible with 22NR inserts, making it highly versatile for different threading applications and material types.
-
Complete Setup Package: The tool holder comes with essential components for quick installation, including M414 screws, M38C lateral screws, STM22T3R shim, and a T15 wrench, ensuring you have everything you need to get started right away.
-
Precision Blade Design: The included insert features a side length of 22mm and an incircle diameter of 12.7mm, providing optimal cutting geometry for consistent, high-quality results.
