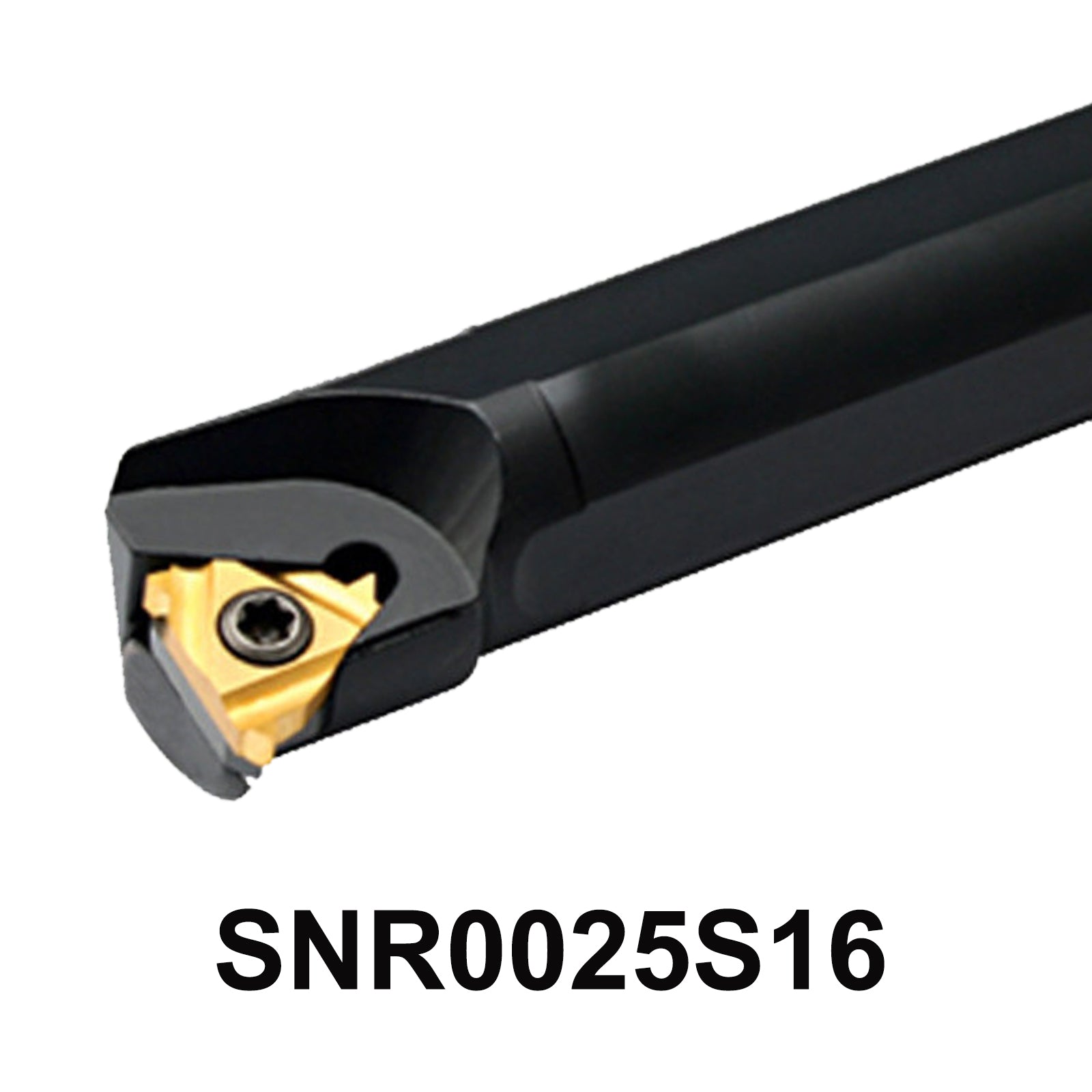

SNR0025S16 CNC Lathe Threading Tool – Internal Thread Cutting Toolholder for 16NR Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNR0025S16 Lathe Threading Tools expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 29mm and a cutting length of 250mm, compatible with 16NR inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNR0025S16
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Right cut
- Height of tool nose : 00mm
- ΦDmin :29mm
- Φd : 25mm
- Width of body of cutting tool : 25mm
- Length of cutting tool : 250mm
- Size of blade :
- 1.Side length of traingle : 16mm
- 2.Incircle : 9.525mm
-
Applicable blade : 16NR
- Shim : STM1603R
- Screw : M3.5*10
- Wrench : T15
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNR0025S16 Lathe Threading Tools
1 * STM1603R Shim
1 * "T" Type wrench
1 * M3.5*10 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNR0025S16 Lathe Threading Tools SNR0025S16 SNR0025 SNR0025 S16 CNC Cutter Lathe Shank Carbide Insert
-
Precision Threading Toolholder for Internal Threads | SNR0025S16
-
Key Features of the SNR0025S16 CNC Lathe Threading Tool
5-Point Description
-
Optimized for Internal Threads: The SNR0025S16 is designed for precise internal threading operations with a right-hand cut direction. Ideal for creating smooth, accurate internal threads on a variety of materials, this toolholder ensures optimal performance for CNC machining.
-
Durable and High-Quality Construction: Made from premium materials, the toolholder features a robust design that ensures long-lasting durability and minimal wear. It is engineered to handle tough machining environments, maintaining high cutting efficiency.
-
Complete Tool Kit: The package includes everything you need for easy setup, including the SNR0025S16 toolholder, M3.512 screws, M38C lateral screw, STM1603R shim, and T15 wrench. Quick and simple to install, reducing downtime.
-
Compatible with 16NR Inserts: This toolholder works with 16NR inserts, providing excellent cutting performance for internal threading. Enjoy enhanced cutting speeds and precision with compatible, high-quality inserts.
-
Versatile Dimensions: With a cutting length of 250mm and a body width of 25mm, this toolholder offers optimal stability and control for a wide range of internal threading tasks, enhancing machining accuracy.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
