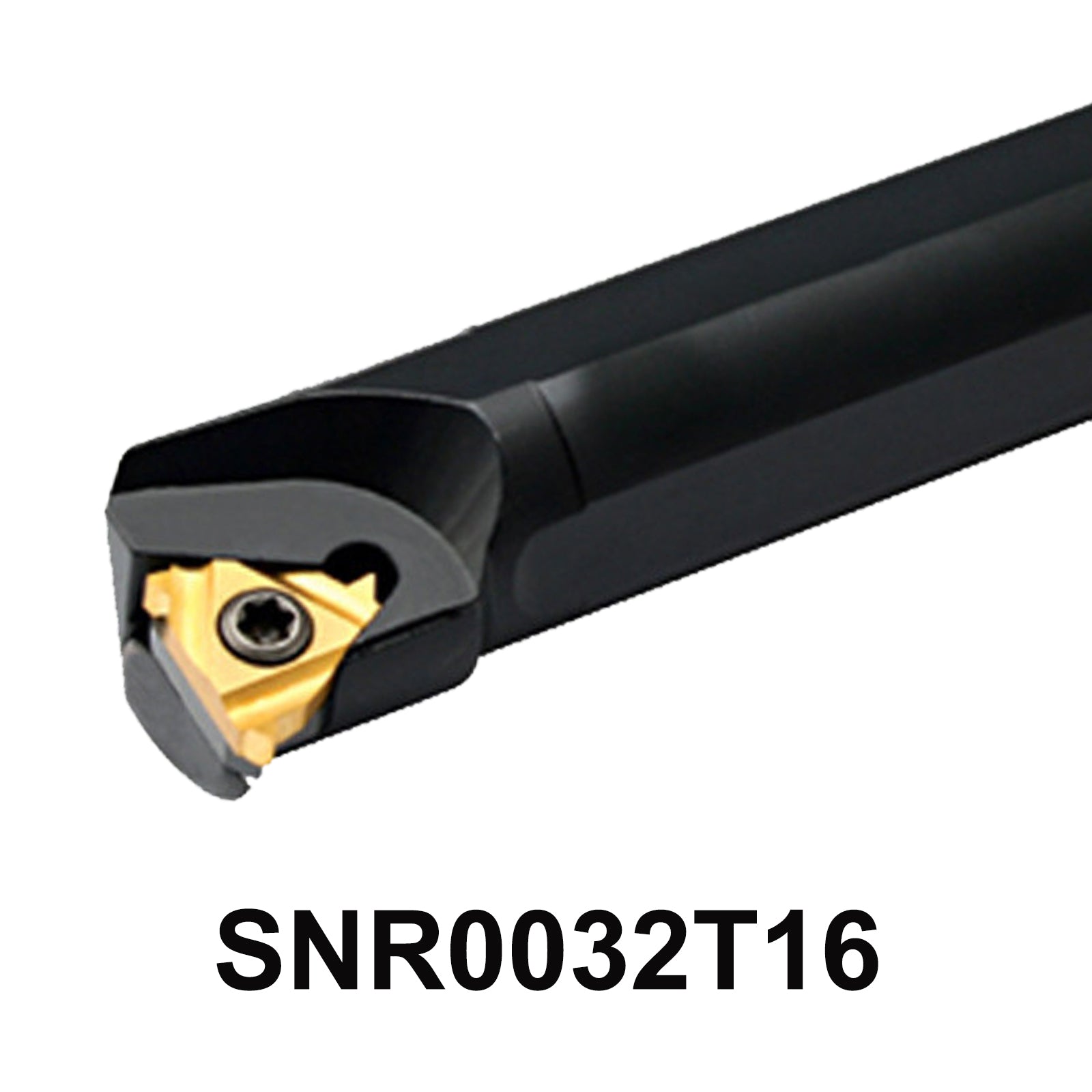

SNR0032T16 Internal Threading Turning Tool – High-Quality CNC Lathe Tool with Right Cut for Internal Threads
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNR0032T16 Internal Threading Turning Tools expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 36mm and a cutting length of 300mm, compatible with 16NR inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNR0032T16
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Right cut
- Height of tool nose : 00mm
- ΦDmin :36mm
- Φd : 32mm
- Width of body of cutting tool : 32mm
- Length of cutting tool : 300mm
- Size of blade :
- 1.Side length of traingle : 16mm
- 2.Incircle : 9.525mm
-
Applicable blade : 16NR
- Shim : STM1603R
- Screw : M3.5*10
- Wrench : T15
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNR0032T16 Internal Threading Turning Tools
1 * STM1603R Shim
1 * "T" Type wrench
1 * M3.5*10 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNR0032T16 Internal Threading Turning Tools SNR0032T16 SNR0032 SNR0032 T16 CNC Cutter Lathe Shank Carbide Insert
-
Top Features of the SNR0032T16 Internal Threading Tool – High Performance and Precision
-
Why Choose the SNR0032T16 for Your CNC Lathe Threading Needs?
5-Point Description
-
Precision Internal Threading
The SNR0032T16 Internal Threading Turning Tool is designed for high-precision internal threading on CNC lathes. Its screw compression type pressing plate and right-cutting direction make it ideal for creating clean, accurate internal threads. -
Robust and Durable Construction
With a tool body width of 32mm and a length of 300mm, this tool is built for durability and long-lasting performance in demanding machining environments. -
Compatible with 16NR Inserts
This tool is specifically designed to work with 16NR inserts, ensuring superior cutting performance and reliability for various internal threading operations. -
Comprehensive Package for Easy Setup
The SNR0032T16 includes a tool holder, M3.5*12 screws, lateral screws, shim (STM1603R), and a T15 wrench – everything you need to get started quickly and easily. -
Ideal for Professional CNC Machinists
Whether you're a professional machinist or a workshop looking to optimize your internal threading operations, the SNR0032T16 provides unmatched precision, making it an essential tool for high-quality CNC machining.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
