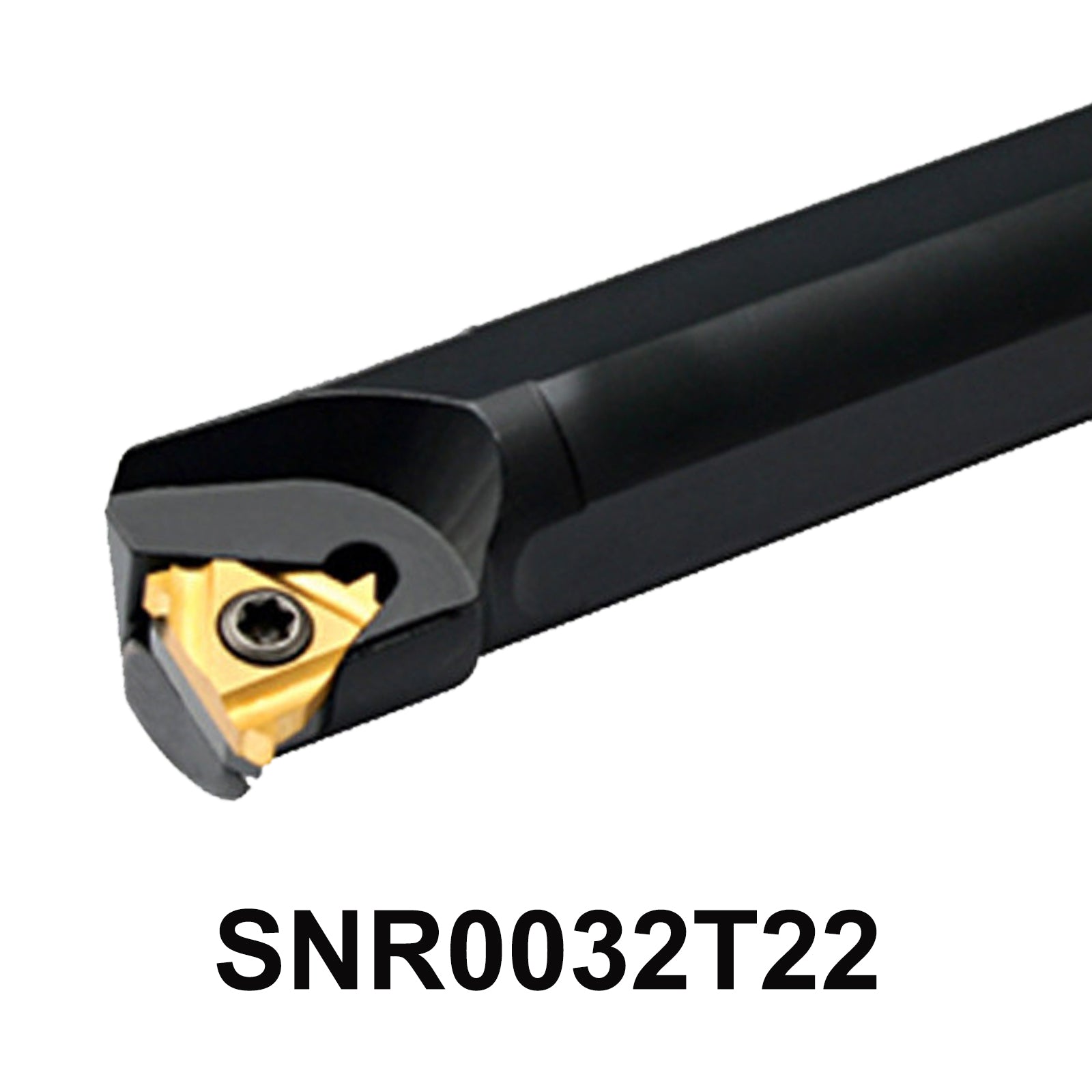

SNR0032T22 Internal Threading Tool for CNC Lathes - Precision Right-Cut Cutter with 22NR Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
Introducing the SNR0032T22 CNC Threading Tool, expertly crafted for precision machining and reliability in internal threading applications
This high-quality CNC lathe cutter holder features a robust design with a minimum diameter of 38mm and a cutting length of 300mm, compatible with 22NR inserts ,allowing for accurate and efficient internal cuttings
Product parameters:
-
Tool Holder Model: SNR0032T22
-
Tool Holder Material : Carbide Steel, Carbon Steel
- Model of Pressing plate : Screw compession type
- Thread form : Internal thread
- Cutting direction : Right cut
- Height of tool nose : 00mm
- ΦDmin :38mm
- Φd :32mm
- Width of body of cutting tool : 32mm
- Length of cutting tool : 300mm
- Size of blade :
- 1.Side length of traingle : 22mm
- 2.Incircle : 12.7mm
-
Applicable blade : 22NR
- Shim: STM22T3R
- Screw : M4*14
- Wrench : T15
- Lateral screw : M3*8C
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * SNR0032T22 CNC Threading Tool
1 * STM22T3R Shim
1 * "T" Type wrench
1 * M4*14 Type Screw
1 * M3*8C Type Lateral Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND SNR0032T22 Internal Threading Turning Tools Holder SNR0032T22 SNR0032 SNR0032 T22 CNC Cutter Lathe Shank Carbide Insert
High-Quality CNC Internal Threading Tool – Designed for 22NR Inserts with Right-Cut Functionality
Durable SNR0032T22 CNC Lathe Cutter Holder – Complete Set for Efficient Internal Thread Cutting
5-Point Description
-
Precision Internal Thread Cutting: The SNR0032T22 Internal Threading Tool is designed for high-precision internal thread cutting on CNC lathes. With its right-hand cutting direction, this tool provides smooth and accurate threading for various industrial applications.
-
Versatile Insert Compatibility: Compatible with 22NR inserts, this tool ensures excellent cutting performance, producing high-quality threads with enhanced tool life and minimal maintenance.
-
Heavy-Duty Construction: Featuring a sturdy tool holder with a 32mm body width and a 300mm length, the tool is built for durability and can handle demanding operations in both small and large-scale CNC machining projects.
-
Complete Kit for Easy Setup: The package includes the tool holder, appropriate screws (M414), lateral screw (M38C), shim (STM22T3R), and a T15 wrench, making it easy to set up and start using right away.
-
Optimized for Professional CNC Users: Whether you're working on precision parts or large production runs, the SNR0032T22 Internal Threading Tool is the ideal solution for achieving accurate, high-quality internal threads with ease.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
