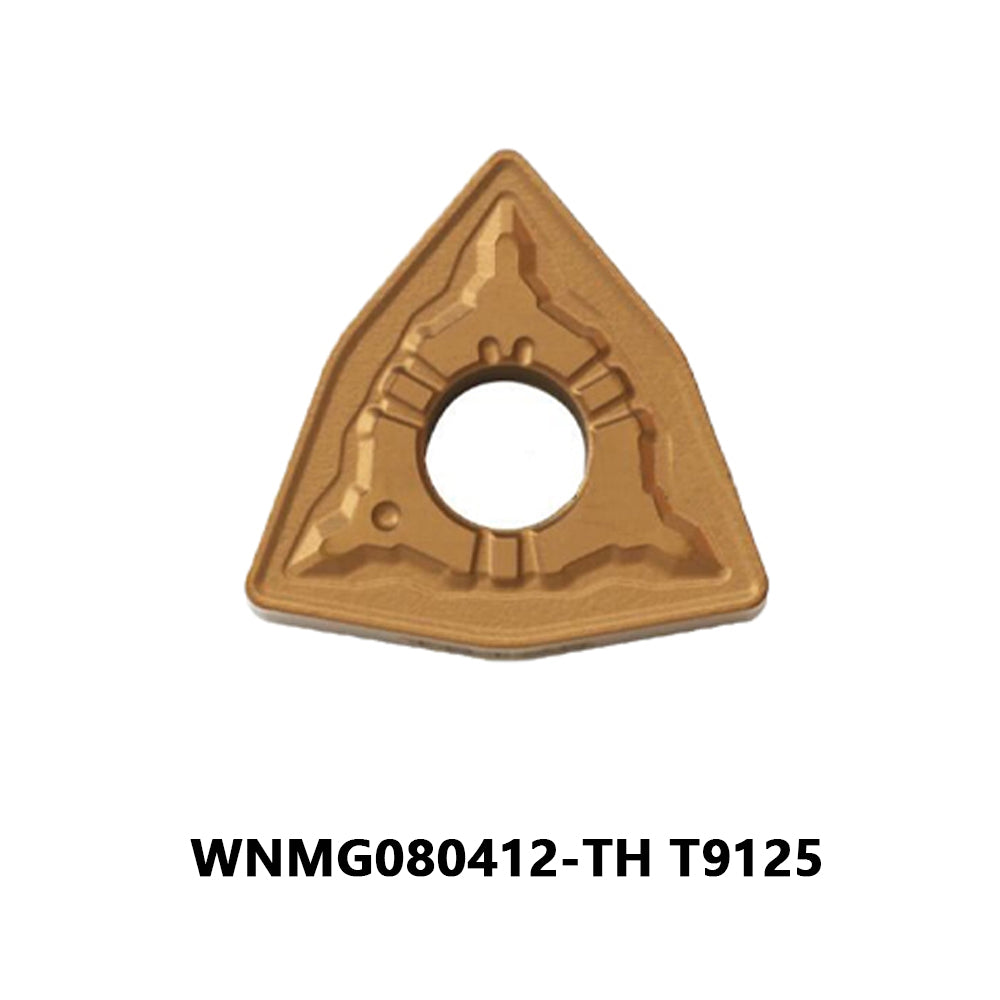

Tungaloy WNMG080412-TH T9125 Carbide Turning Insert – PVD Coated for Steel Semi-Finishing & Roughing

$75.27 USD

Price shown is a starting point. Contact us for a precise quote based on your requirements.

american expressmasterpaypalvisaapple paygoogle payshopify pay
Order in the next [totalHours] hours %M minutes to get it between and
Description
ISO WNMG T9125 Grade PVD TiAlN Coated R1.2 Corner TH Chipbreaker Tungaloy

Tungaloy WNMG080412-TH T9125 Carbide Turning Insert – PVD Coated for Steel Semi-Finishing & Roughing with R1.2

An 80° trigon carbide insert with R1.2 corner radius and TH chipbreaker, engineered for productive semi-finishing and light roughing of carbon steel and alloy steel. The largest corner radius in the WNMG08 series delivers maximum edge strength, highest feed rates, and superior tool life in demanding production environments.

Product Overview

"Which WNMG insert gives the longest tool life and handles the highest feed rates for steel semi-finishing and roughing?"

The Tungaloy WNMG080412-TH T9125 is the highest-feed, most robust variant in the Tungaloy WNMG080408 family. The R1.2 corner radius — the largest available in the WNMG08 series — provides maximum edge strength, superior chip thinning at high feeds, and the best tool life in semi-finishing and light roughing conditions. Combined with the T9125 grade (PVD TiAlN, enhanced toughness substrate) and TH chipbreaker (medium-to-heavy feed geometry), this insert is built for high-productivity turning where material removal rate (MRR) and tool life are the primary objectives.

The R1.2 corner is particularly effective in high-feed turning strategies — the larger nose radius creates a chip thinning effect that allows the actual chip thickness to remain manageable even at fn 0.40–0.60 mm/rev, enabling significantly higher productivity than R0.4 or R0.8 variants without proportionally increasing cutting forces.

Corner Radius Positioning in WNMG080412 vs. 080408 vs. 080404: R1.2 = maximum productivity & tool life for semi-finishing/roughing. R0.8 = balanced semi-finishing. R0.4 = precision finishing. Choose R1.2 when MRR and tool life matter most.

Search Keywords:

WNMG080412-TH T9125 Tungaloy carbide insert WNMG 08 04 12 R1.2 turning insert PVD coated turning insert TH chipbreaker T9125 grade steel roughing insert high feed turning insert alloy steel semi-finishing CNC lathe insert WNMG insert for steel ISO P25 carbide tough carbide grade

Model Code Decoder – WNMG080412-TH T9125

Every character in the ISO insert designation carries precise engineering meaning:

WInsert Shape
80° Trigon (W)
NClearance Angle
0° (Negative)
MTolerance Class
±0.05–0.13mm
GFixing Method
Hole + Chip Groove (Double-sided)
08Cutting Edge Length
8.0mm (IC 9.525mm)
04Insert Thickness
4.76mm
12Corner Radius
1.2mm (R1.2)
THChipbreaker
Tungaloy Heavy / Medium-Feed
TBrand Prefix
Tungaloy Grade
91Grade Number
PVD TiAlN Series
25ISO Application
P25 – Steel Semi-Finishing

R1.2 Corner Radius & TH Chipbreaker – Engineering Advantages

  • R1.2 chip thinning effect: At fn = 0.40 mm/rev with R1.2, the actual chip thickness is approximately 0.28 mm — equivalent to running R0.4 at fn = 0.12 mm/rev. This allows dramatically higher feed rates without proportionally increasing cutting forces or surface roughness.
  • Maximum edge strength: The R1.2 corner distributes cutting forces over a larger arc, reducing stress concentration at the nose — critical for interrupted cuts, forged surfaces, and high-depth-of-cut operations.
  • TH wide chip groove: Accommodates the heavy chip loads generated at fn 0.25–0.60 mm/rev, producing controlled, short chips that evacuate cleanly even at high MRR.
  • Reinforced T-land edge: Wider micro-hone on the cutting edge provides superior resistance to chipping under mechanical shock — essential for semi-finishing of forged and cast steel.
  • Surface finish trade-off: R1.2 achieves Ra 3.2 µm easily at high feeds; Ra 1.6 µm achievable at optimized parameters. For Ra ≤ 0.8 µm, use R0.4 or R0.8 variants.

Key Features

🔷 R1.2 Corner Radius – Maximum ProductivityLargest corner in the WNMG08 series — enables fn up to 0.60 mm/rev via chip thinning effect, maximizing material removal rate and tool life in semi-finishing and roughing.
🔷 Enhanced Toughness T9125 SubstrateTougher carbide substrate than T9115 — superior resistance to micro-chipping and edge fracture under heavy chip loads, interrupted cuts, and forged surface conditions.
🔷 PVD TiAlN Multi-Layer CoatingOxidation resistance up to 900°C with excellent adhesion. Maintains coating integrity under the heavy mechanical loads of semi-finishing and light roughing.
🔷 TH Heavy-Feed ChipbreakerWide groove with reinforced edge land — designed for fn 0.25–0.60 mm/rev with reliable chip control and minimal chip jamming at high MRR.
🔷 80° Trigon Insert Shape (W)Strong, versatile geometry for external turning and facing. The 80° included angle provides excellent edge strength for demanding semi-finishing conditions.
🔷 Double-Sided Insert (4 Edges)G-type double-sided insert with 4 usable cutting edges — maximizes cost efficiency and reduces tooling cost per part by up to 4x vs. single-sided inserts.

Technical Specifications

Metric & Imperial Dimensions

Parameter Metric Imperial
Insert Shape 80° Trigon (W) 80° Trigon (W)
Inscribed Circle (IC) 9.525 mm 3/8 in
Cutting Edge Length (L) 8.0 mm 0.315 in
Insert Thickness (S) 4.76 mm 0.1875 in
Corner Radius (rε) 1.2 mm 3/64 in
Clearance Angle 0° (Negative) 0° (Negative)
Tolerance Class M (±0.05–0.13 mm) M (±0.002–0.005 in)
Hole Diameter 3.81 mm 0.150 in
Grade T9125 T9125
Coating PVD TiAlN Multi-Layer PVD TiAlN Multi-Layer
ISO Application P20–P35, M20–M30 P20–P35, M20–M30
Chipbreaker TH (Medium-to-Heavy Feed) TH (Medium-to-Heavy Feed)
Usable Cutting Edges 4 edges (double-sided) 4 edges (double-sided)
Packaging 10 pcs / box 10 pcs / box

Recommended Cutting Parameters

Workpiece Material Cutting Speed Vc (m/min) Cutting Speed Vc (SFM) Feed Rate fn (mm/rev) Feed Rate fn (in/rev) Depth of Cut ap (mm)
Carbon Steel (P) 130–250 427–820 0.25–0.55 0.010–0.022 1.0–4.0
Alloy Steel (P) 100–220 328–722 0.20–0.50 0.008–0.020 1.0–3.5
Cast Steel (P/K) 90–180 295–591 0.20–0.45 0.008–0.018 1.0–3.0
Stainless Steel (M) 70–140 230–459 0.15–0.35 0.006–0.014 0.5–2.0

* Parameters are starting recommendations. R1.2 corner enables higher feed rates via chip thinning. Reduce speed by 10–20% for interrupted cuts or forged surfaces with hard skin.

Corner Radius Full Comparison – WNMG08 Series

Parameter R0.4 (080404) R0.8 (080408) R1.2 (080412) ✓
Corner Radius 0.4 mm 0.8 mm 1.2 mm
Max Feed Rate (fn) 0.20 mm/rev 0.40 mm/rev 0.60 mm/rev
Best Surface Finish Ra ≤ 0.4 µm Ra ≤ 0.8 µm Ra ≤ 1.6 µm
Edge Strength Good Better Best
Chip Thinning Effect Low Moderate High
Tool Life (same conditions) Baseline +20–30% +40–60%
Best Application Precision finishing Semi-finishing Semi-finishing / Roughing
Min. Depth of Cut 0.2 mm 0.3 mm 1.0 mm (avoid ≤ rε)

* Important: When using R1.2, ensure depth of cut ap > 1.2 mm to avoid rubbing on the corner radius. For ap < 1.0 mm, use R0.4 or R0.8.

🔧 Compatible Tool Holders (WNMG080412)

The WNMG080412 insert uses the same MWLNR/L 08-pocket holders as WNMG080404 and WNMG080408. For R1.2 heavy-feed applications, 20mm+ shank holders are recommended for maximum rigidity:

MWLNR/L 2020K08
20mm shank, heavy-duty external turning
MWLNR/L 2525M08
25mm shank, high-rigidity semi-finishing
MWLNR/L 3232P08
32mm shank, heavy-duty roughing
DWLNR/L 2525M08
25mm shank, 93° lead angle, facing & turning
MWLNR/L 4040R08
40mm shank, heavy roughing on large lathes
A32R-MWLNR08
Boring bar, 32mm bore, internal turning

For R1.2 high-feed applications, always use the largest shank size your machine turret accepts to maximize rigidity and minimize vibration.

Applications

High-Feed Semi-FinishingProductive semi-finishing of carbon and alloy steel shafts, axles, and cylinders at fn 0.30–0.55 mm/rev for maximum MRR before finishing operations.
Forged Steel RoughingLight roughing of forged crankshafts, connecting rods, and flanges with hard skin and variable stock — R1.2 edge strength handles the impact without chipping.
Large Diameter TurningSemi-finishing of large-diameter shafts, rolls, and cylinders where high feed rates are essential to maintain productive cycle times.
Cast Steel & Cast IronSemi-finishing of cast steel housings, pump bodies, and valve bodies with variable hardness — R1.2 absorbs the shock of hard spots and inclusions.
Heavy Automotive & Truck PartsSemi-finishing of truck axles, heavy-duty gearbox shafts, differential housings, and wheel hubs in medium-carbon alloy steel.
Pre-Finishing Stock RemovalEfficient stock removal pass before final finishing — use WNMG080412-TH for semi-finishing, then switch to WNMG080404-TSF for the finishing pass.

Tungaloy Grade Comparison – Steel Turning

Grade Coating ISO Range Best For Toughness
T9105 PVD TiAlN P05–P15 High-speed finishing, hardened steel ★☆☆☆☆
T9115 PVD TiAlN P10–P25 Finishing to semi-finishing, steel & SS ★★☆☆☆
T9125 ✓ PVD TiAlN P20–P35 Semi-finishing, interrupted cuts, roughing ★★★☆☆
AH725 CVD P15–P30 Semi-finishing to roughing, steel ★★★★☆
AH8015 CVD P25–P40 Heavy roughing, severe interrupted cuts ★★★★★
T9115 (M) PVD TiAlN M10–M25 Stainless steel finishing ★★☆☆☆

✓ = Current product. T9125 + R1.2 + TH = the highest-productivity combination in the Tungaloy WNMG PVD lineup for steel semi-finishing and roughing.

Why Choose Us

🏭
Authorized Distributor100% genuine Tungaloy products with full manufacturer quality assurance.
🚀
Fast Global ShippingWorldwide dispatch with full tracking and reliable delivery timelines.
🔬
Technical ExpertiseExpert application support to help you optimize grade, geometry, and cutting parameters for your specific conditions.
📦
Bulk PricingCompetitive volume discounts for production quantities. Contact us for a quote.
Guaranteed GenuineEvery insert sourced directly from Tungaloy — zero counterfeits, zero compromises.

Customer Reviews

★★★★★
David K.
🇺🇸 United States

"Running WNMG080412-TH T9125 on 4340 alloy steel shafts at fn 0.45 mm/rev. Tool life is outstanding — we’re getting 40% more parts per edge compared to our previous R0.8 inserts. The R1.2 corner handles the high feeds without any chipping. Game changer for our production line."

★★★★★
Hans M.
🇩🇪 Germany

"Perfekt für die Halbschlichtbearbeitung großer Wellen aus 42CrMo4. Mit fn 0.40 mm/rev und R1.2 erreichen wir eine deutlich höhere Zerspanungsleistung als mit R0.8. Standzeit und Prozesssicherheit überzeugen auch bei Schmiedeteilen."

★★★★★
Marco T.
🇮🇹 Italy

"Utilizzo WNMG080412-TH per la semi-finitura di alberi in acciaio bonificato di grande diametro. Il raggio R1.2 permette avanzamenti elevati con ottima vita utensile. Ideale per operazioni di sgrossatura leggera prima della finitura."

★★★★☆
Kenji S.
🇯🇵 Japan

"SCM440の大径軟の半仕上げ加工に使用。R1.2のチップ薄化効果で送り量を大幅に上げられ、サイクルタイムが30%短縮。工具寿命も安定しており、大批量生産に最適です。"

★★★★★
James R.
🇬🇧 United Kingdom

"We use WNMG080412-TH T9125 for semi-finishing large cast steel rolls. The R1.2 corner absorbs the shock from hard spots and inclusions that were destroying our R0.8 inserts. Consistent tool life across the whole batch — highly recommended for cast steel."

★★★★★
Chen H.
🇨🇳 China

"用于42CrMo大径轴半精加工,进给0.45mm/rev,切削速度180m/min。R1.2圆弧的薄屑效果非常明显,刷刀次数比R0.8多50%以上。生产效率大幅提升,强烈推荐。"

★★★★☆
Pedro S.
🇧🇷 Brazil

"Excelente inserto para desbaste leve de aço forjado. O raio R1.2 aguenta bem os impactos da pele de forja e permite avancos muito maiores que R0.8. Vida de ferramenta muito consistente na produção em série de eixos pesados."

Frequently Asked Questions

Q1: When should I choose WNMG080412 (R1.2) over R0.8 or R0.4?
Choose R1.2 (080412) when your priority is maximum material removal rate (MRR) and tool life in semi-finishing or light roughing. R1.2 allows fn up to 0.60 mm/rev via chip thinning, and provides the strongest edge for interrupted cuts and forged surfaces. Important: ensure depth of cut ap > 1.2 mm — if ap < 1.0 mm, use R0.8 or R0.4 to avoid rubbing on the corner radius. Choose R0.8 for balanced semi-finishing; R0.4 for precision finishing.
Q2: What is the chip thinning effect and why does R1.2 benefit from it?
The chip thinning effect occurs when the corner radius is large relative to the depth of cut — the actual chip thickness becomes less than the programmed feed rate. With R1.2 at fn = 0.40 mm/rev and ap = 2.0 mm, the actual chip thickness is approximately 0.28 mm, equivalent to running R0.4 at fn = 0.12 mm/rev. This means you can program 3–4x higher feed rates while maintaining similar cutting forces and surface finish — dramatically improving productivity without overloading the insert.
Q3: Can I use the same tool holder for WNMG080412 as for WNMG080404 and WNMG080408?
Yes — all three corner radius variants (R0.4, R0.8, R1.2) use the same MWLNR/L 08-pocket tool holder. The insert body dimensions are identical; only the corner radius changes. However, for R1.2 high-feed applications, we recommend using a 25mm or 32mm shank holder for maximum rigidity to handle the higher cutting forces at elevated feed rates.
Q4: What surface finish can I expect with WNMG080412-TH T9125?
At typical semi-finishing parameters (fn 0.30–0.45 mm/rev), expect Ra 1.6–3.2 µm. At optimized lower feeds (fn 0.20–0.25 mm/rev), Ra 1.6 µm is achievable. For Ra ≤ 0.8 µm, switch to WNMG080404-TSF T9115 for the finishing pass. The WNMG080412-TH is designed for productive stock removal, not ultra-fine surface finish.
Q5: How many cutting edges does the WNMG080412 have?
The WNMG080412 is a double-sided insert with 4 usable cutting edges (G-type). Rotate or flip the insert when one edge is worn. With T9125’s enhanced toughness and R1.2’s superior edge strength, each of the 4 edges delivers consistent, high-productivity performance throughout its full tool life — reducing your tooling cost per part by up to 75% vs. single-sided inserts.

💡 Corner Radius & Grade Selection Tips – Tungaloy WNMG Series

  • Corner Radius Selection Rule: R0.4 = finishing (Ra ≤ 0.4 µm, fn ≤ 0.20, ap ≥ 0.2 mm) | R0.8 = semi-finishing (Ra ≤ 0.8 µm, fn ≤ 0.40, ap ≥ 0.5 mm) | R1.2 = semi-finishing/roughing (Ra ≤ 1.6 µm, fn ≤ 0.60, ap ≥ 1.2 mm).
  • Critical R1.2 rule: Always ensure ap > rε (depth of cut greater than corner radius). For R1.2, minimum recommended ap = 1.5 mm. Running ap < rε causes rubbing, vibration, and premature wear.
  • T9115 (PVD): Best for finishing to semi-finishing of steel and stainless. Use with TSF chipbreaker and R0.4 or R0.8.
  • T9125 (PVD) — This Product: Enhanced toughness for semi-finishing and roughing with interrupted cuts. Use with TH chipbreaker and R0.8 or R1.2.
  • AH725 (CVD): Step up from T9125 for heavier roughing conditions or when dry cutting at high speeds is required.
  • AH8015 (CVD): Maximum toughness for severe interrupted cuts and heavy roughing. Last resort when T9125 still chips.
  • Two-pass strategy: Use WNMG080412-TH T9125 for semi-finishing (high MRR), then WNMG080404-TSF T9115 for finishing (high surface quality) — optimal productivity and quality combination.
