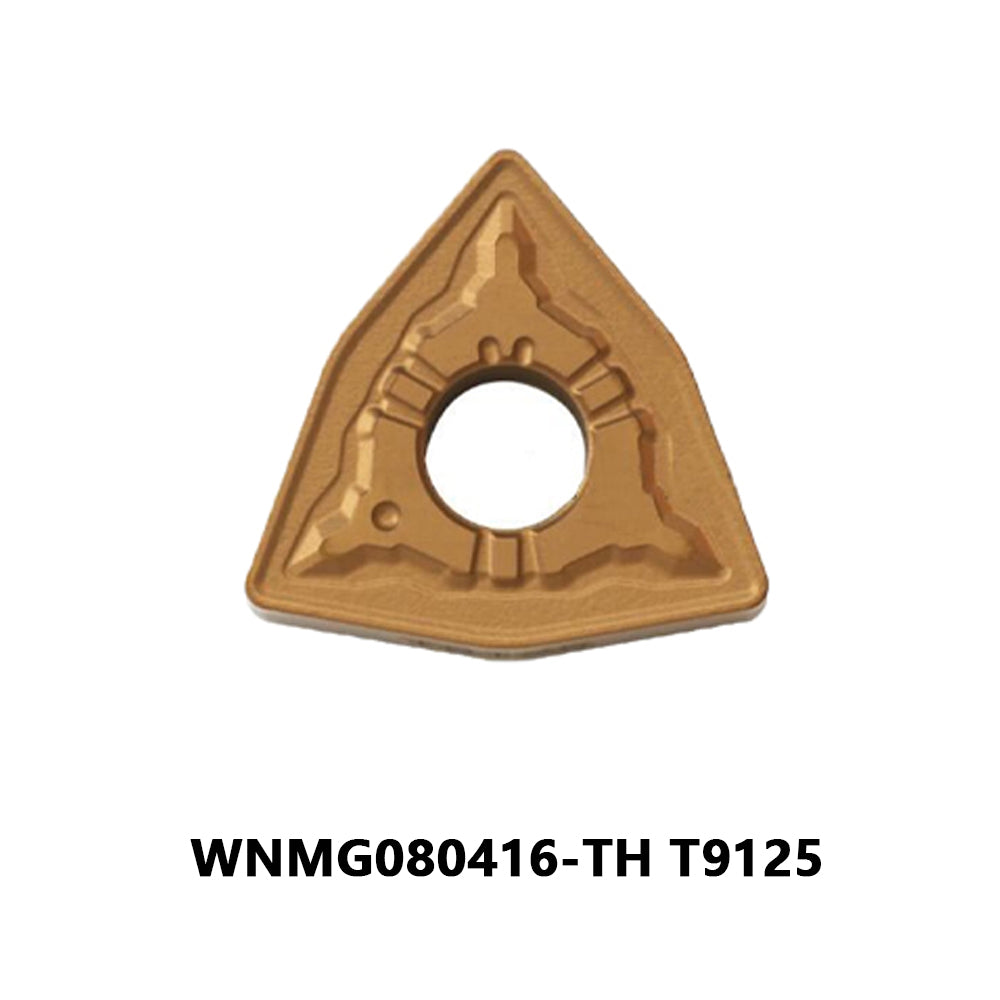

Tungaloy WNMG080416-TH T9125 Carbide Turning Insert – PVD Coated for Steel Heavy Semi-Finishing & Roughing

$94.85 USD

Price shown is a starting point. Contact us for a precise quote based on your requirements.

american expressmasterpaypalvisaapple paygoogle payshopify pay
Order in the next [totalHours] hours %M minutes to get it between and
Description
ISO WNMG T9125 Grade PVD TiAlN Coated R1.6 Corner TH Chipbreaker Tungaloy

Tungaloy WNMG080416-TH T9125 Carbide Turning Insert – PVD Coated for Heavy Steel Roughing & High-Feed Semi-Finishing

The most aggressive corner radius in the Tungaloy WNMG08 series. R1.6 corner with TH chipbreaker and T9125 tough grade — engineered for maximum material removal rate, heavy interrupted cuts, and the most demanding steel roughing applications on CNC lathes.

Product Overview

"Which WNMG insert can handle the heaviest steel roughing with maximum feed rates and interrupted cuts?"

The Tungaloy WNMG080416-TH T9125 is the ultimate high-productivity variant in the Tungaloy WNMG08 family. With an R1.6 corner radius — the largest available in the WNMG08 series — this insert delivers the maximum chip thinning effect, the strongest possible edge, and the highest feed rate capability of any WNMG08 insert. It is purpose-built for heavy semi-finishing and roughing of carbon steel, alloy steel, and cast steel where material removal rate (MRR) is the primary objective.

The R1.6 corner creates an extreme chip thinning effect: at fn = 0.50 mm/rev with ap = 3.0 mm, the actual chip thickness is approximately 0.22 mm — equivalent to running R0.4 at fn = 0.09 mm/rev. This allows programmed feed rates up to 0.70 mm/rev while maintaining manageable chip loads and cutting forces, enabling cycle time reductions of 40–60% compared to R0.8 variants in roughing operations.

Combined with the T9125 enhanced-toughness PVD grade and TH heavy-feed chipbreaker, this insert is the go-to choice for production environments where every second of cycle time counts and tool life predictability is critical.

Search Keywords:

WNMG080416-TH T9125 Tungaloy carbide insert WNMG 08 04 16 R1.6 turning insert PVD coated roughing insert TH chipbreaker T9125 grade heavy steel roughing insert high feed turning insert alloy steel roughing CNC lathe roughing insert WNMG insert for roughing ISO P25 carbide interrupted cut roughing

Model Code Decoder – WNMG080416-TH T9125

Every character in the ISO insert designation carries precise engineering meaning:

WInsert Shape
80° Trigon (W)
NClearance Angle
0° (Negative)
MTolerance Class
±0.05–0.13mm
GFixing Method
Hole + Chip Groove (Double-sided)
08Cutting Edge Length
8.0mm (IC 9.525mm)
04Insert Thickness
4.76mm
16Corner Radius
1.6mm (R1.6)
THChipbreaker
Tungaloy Heavy-Feed
TBrand Prefix
Tungaloy Grade
91Grade Number
PVD TiAlN Series
25ISO Application
P25 – Steel Semi-Finishing

R1.6 Corner Radius – The Chip Thinning Advantage

  • Extreme chip thinning effect: At fn = 0.50 mm/rev with ap = 3.0 mm, actual chip thickness ≈ 0.22 mm. Allows programmed feeds up to 0.70 mm/rev while maintaining manageable cutting forces — 40–60% cycle time reduction vs. R0.8.
  • Maximum edge strength: R1.6 distributes cutting forces over the largest possible arc in the WNMG08 series — critical for heavy interrupted cuts, forged surfaces with hard skin, and high depth-of-cut operations.
  • Critical depth-of-cut rule: Always ensure ap > rε. For R1.6, minimum recommended ap = 2.0 mm. Running ap < rε causes rubbing, vibration, and rapid wear. For ap < 1.5 mm, use R0.8 or R1.2.
  • TH heavy-feed groove: Designed for the extreme chip volumes generated at fn 0.35–0.70 mm/rev — wide groove with reinforced T-land edge handles heavy chip loads without jamming or edge fracture.
  • Surface finish expectation: Ra 3.2–6.3 µm at typical roughing feeds. This insert is for stock removal, not surface finish — follow with WNMG080404-TSF T9115 for finishing.

Key Features

🔷 R1.6 Corner – Maximum MRRLargest corner in the WNMG08 series. Enables fn up to 0.70 mm/rev via extreme chip thinning effect — 40–60% cycle time reduction vs. R0.8 in roughing operations.
🔷 T9125 Enhanced Toughness GradeTougher PVD TiAlN substrate than T9115 — maximum resistance to edge fracture under heavy chip loads, severe interrupted cuts, and forged surface conditions.
🔷 TH Heavy-Feed ChipbreakerWide chip groove with reinforced T-land edge — handles fn 0.35–0.70 mm/rev with reliable chip control and minimal chip jamming at extreme MRR.
🔷 PVD TiAlN Multi-Layer CoatingOxidation resistance up to 900°C. Maintains coating integrity under the extreme mechanical loads of heavy roughing and interrupted cutting.
🔷 80° Trigon Insert Shape (W)Strong, versatile geometry for external turning and facing. The 80° included angle provides excellent edge strength for the most demanding roughing conditions.
🔷 Double-Sided Insert (4 Edges)G-type double-sided insert with 4 usable cutting edges — maximizes cost efficiency and reduces tooling cost per part by up to 4x vs. single-sided inserts.

Technical Specifications

Metric & Imperial Dimensions

Parameter Metric Imperial
Insert Shape 80° Trigon (W) 80° Trigon (W)
Inscribed Circle (IC) 9.525 mm 3/8 in
Cutting Edge Length (L) 8.0 mm 0.315 in
Insert Thickness (S) 4.76 mm 0.1875 in
Corner Radius (rε) 1.6 mm 1/16 in
Clearance Angle 0° (Negative) 0° (Negative)
Tolerance Class M (±0.05–0.13 mm) M (±0.002–0.005 in)
Hole Diameter 3.81 mm 0.150 in
Grade T9125 T9125
Coating PVD TiAlN Multi-Layer PVD TiAlN Multi-Layer
ISO Application P20–P35, M20–M30 P20–P35, M20–M30
Chipbreaker TH (Heavy-Feed) TH (Heavy-Feed)
Usable Cutting Edges 4 edges (double-sided) 4 edges (double-sided)
Packaging 10 pcs / box 10 pcs / box

Recommended Cutting Parameters

Workpiece Material Cutting Speed Vc (m/min) Cutting Speed Vc (SFM) Feed Rate fn (mm/rev) Feed Rate fn (in/rev) Depth of Cut ap (mm)
Carbon Steel (P) 100–220 328–722 0.35–0.70 0.014–0.028 2.0–5.0
Alloy Steel (P) 80–180 262–591 0.30–0.60 0.012–0.024 2.0–4.5
Cast Steel (P/K) 70–160 230–525 0.30–0.55 0.012–0.022 2.0–4.0
Stainless Steel (M) 60–120 197–394 0.20–0.40 0.008–0.016 1.5–3.0

* R1.6 minimum recommended ap = 2.0 mm. Never run ap < rε (1.6 mm). Reduce speed by 15–25% for interrupted cuts or forged surfaces with hard skin.

Full WNMG08 Corner Radius Comparison

Parameter R0.4 (080404) R0.8 (080408) R1.2 (080412) R1.6 (080416) ✓
Corner Radius 0.4 mm 0.8 mm 1.2 mm 1.6 mm
Max Feed Rate (fn) 0.20 mm/rev 0.40 mm/rev 0.60 mm/rev 0.70 mm/rev
Best Surface Finish Ra ≤ 0.4 µm Ra ≤ 0.8 µm Ra ≤ 1.6 µm Ra ≤ 3.2 µm
Edge Strength Good Better Excellent Maximum
Chip Thinning Effect Low Moderate High Extreme
Tool Life vs. R0.4 Baseline +20–30% +40–60% +60–80%
Min. Depth of Cut 0.2 mm 0.5 mm 1.5 mm 2.0 mm
Best Application Finishing Semi-finishing Semi-finishing/Roughing Heavy Roughing

✓ = Current product. R1.6 is the maximum corner radius in the WNMG08 series — use when MRR and tool life are the absolute priority.

🔧 Compatible Tool Holders (WNMG080416)

WNMG080416 uses the same MWLNR/L 08-pocket holders as all WNMG08 variants. For R1.6 heavy roughing, always use the largest shank size available for maximum rigidity:

MWLNR/L 2525M08
25mm shank, high-rigidity roughing
MWLNR/L 3232P08
32mm shank, heavy-duty roughing
MWLNR/L 4040R08
40mm shank, large lathe heavy roughing
DWLNR/L 2525M08
25mm shank, 93° lead angle, facing & roughing
DWLNR/L 3232P08
32mm shank, heavy-duty facing & roughing
A32R-MWLNR08
Boring bar, 32mm bore, internal roughing

For R1.6 heavy roughing: always use 25mm+ shank, ensure machine spindle power > 15 kW, and verify turret rigidity before running at maximum feed rates.

Applications

Heavy Steel RoughingMaximum MRR roughing of carbon and alloy steel billets, forgings, and castings at fn 0.40–0.70 mm/rev for the fastest possible stock removal.
Large Diameter Shaft TurningRoughing of large-diameter shafts, rolls, and cylinders (ø100mm+) where high feed rates are essential to maintain productive cycle times on large CNC lathes.
Forged Steel with Hard SkinRoughing of forged crankshafts, axles, and flanges with hard forging skin and scale — R1.6 edge strength absorbs the impact without fracture.
Cast Steel & Cast Iron RoughingHeavy roughing of cast steel housings, rolls, and structural components with variable hardness, inclusions, and interrupted surfaces.
Heavy Truck & Rail ComponentsRoughing of truck axles, railway wheel blanks, bogie components, and heavy-duty transmission shafts in medium-carbon alloy steel.
Pre-Finishing Stock RemovalAggressive stock removal pass before semi-finishing and finishing — use WNMG080416-TH for roughing, WNMG080408-TH for semi-finishing, WNMG080404-TSF for finishing.

Tungaloy Grade Comparison – Steel Turning

Grade Coating ISO Range Best For Toughness
T9105 PVD TiAlN P05–P15 High-speed finishing, hardened steel ★☆☆☆☆
T9115 PVD TiAlN P10–P25 Finishing to semi-finishing, steel & SS ★★☆☆☆
T9125 ✓ PVD TiAlN P20–P35 Semi-finishing, roughing, interrupted cuts ★★★☆☆
AH725 CVD P15–P30 Semi-finishing to roughing, steel ★★★★☆
AH8015 CVD P25–P40 Heavy roughing, severe interrupted cuts ★★★★★
T9115 (M) PVD TiAlN M10–M25 Stainless steel finishing ★★☆☆☆

✓ = Current product. For even heavier roughing conditions where T9125 chips, step up to AH725 or AH8015 (CVD grades with higher toughness).

Why Choose Us

🏭
Authorized Distributor100% genuine Tungaloy products with full manufacturer quality assurance.
🚀
Fast Global ShippingWorldwide dispatch with full tracking and reliable delivery timelines.
🔬
Technical ExpertiseExpert application support to optimize grade, geometry, and cutting parameters for your roughing operations.
📦
Bulk PricingCompetitive volume discounts for production quantities. Contact us for a quote.
Guaranteed GenuineEvery insert sourced directly from Tungaloy — zero counterfeits, zero compromises.

Customer Reviews

★★★★★
Tom B.
🇺🇸 United States

"Using WNMG080416-TH T9125 for roughing 4340 steel shafts at fn 0.55 mm/rev. Cycle time dropped by 45% compared to our previous R0.8 inserts. Tool life is consistent and the R1.6 corner handles the interrupted cuts without any chipping. Best roughing insert we’ve used."

★★★★★
Werner S.
🇩🇪 Germany

"Eingesetzt für die Schruppbearbeitung großer Wellen aus 42CrMo4 auf einem Schwerdrehzentrum. Mit fn 0.50 mm/rev und R1.6 erreichen wir eine Zerspanungsleistung, die mit R1.2 nicht möglich war. Standzeit und Prozesssicherheit überzeugen auch bei Schmiedeteilen mit harter Haut."

★★★★☆
Luca M.
🇮🇹 Italy

"Utilizzo WNMG080416-TH per la sgrossatura di grandi alberi in acciaio bonificato. Il raggio R1.6 permette avanzamenti molto elevati con ottima vita utensile. Importante rispettare la profondità di passata minima di 2mm per evitare vibrazioni."

★★★★★
Hiroshi Y.
🇯🇵 Japan

"SCM440の大径軟の荒剥き加工に使用。R1.6のチップ薄屑効果でfn 0.55mm/revで加工でき、サイクルタイムが50%以上短縮。工具寿命も安定しており、大批量生産に最適です。"

★★★★★
Andrew M.
🇬🇧 United Kingdom

"We rough cast steel rolls on a large lathe — hard spots, inclusions, and heavy interrupted cuts. WNMG080416-TH T9125 is the only insert that gives us consistent tool life in these conditions. The R1.6 corner absorbs the shock that was fracturing our R1.2 inserts."

★★★★★
Liu J.
🇨🇳 China

"用于42CrMo大径轴粗加工,进给0.55mm/rev,切削速度150m/min。R1.6圆弧的薄屑效果非常显著,刷刀次数比R1.2多60%以上。生产效率大幅提升,强烈推荐。"

★★★★☆
Carlos R.
🇲🇽 Mexico

"Excelente inserto para desbaste pesado de acero forjado. El radio R1.6 aguanta bien los impactos de la piel de forja y permite avances muy superiores a R1.2. Vida de herramienta muy consistente en producción de ejes pesados para camiones."

Frequently Asked Questions

Q1: When should I choose WNMG080416 (R1.6) over R1.2 or R0.8?
Choose R1.6 (080416) when your priority is maximum MRR in roughing operations with ap ≥ 2.0 mm. R1.6 enables fn up to 0.70 mm/rev via extreme chip thinning and provides the strongest edge for severe interrupted cuts and forged surfaces. Critical rule: ap must always be > rε (1.6 mm) — minimum recommended ap = 2.0 mm. For ap < 1.5 mm, use R0.8 or R1.2. Choose R1.2 for semi-finishing with ap 1.5–3.0 mm; R1.6 for heavy roughing with ap 2.0–5.0 mm.
Q2: What machine power is required for WNMG080416-TH at maximum feed rates?
At maximum parameters (fn 0.60 mm/rev, ap 4.0 mm, Vc 180 m/min on carbon steel), estimated cutting power is 15–25 kW depending on workpiece material and machine efficiency. We recommend a minimum spindle power of 15 kW for productive use of R1.6 at high feeds. For smaller machines (<10 kW), use R1.2 or R0.8 with reduced parameters. Always verify machine rigidity and turret clamping before running at maximum feed rates.
Q3: Can I use the same tool holder for WNMG080416 as for other WNMG08 variants?
Yes — WNMG080416 uses the same MWLNR/L 08-pocket tool holder as R0.4, R0.8, and R1.2 variants. However, for R1.6 heavy roughing, we strongly recommend a 32mm or 40mm shank holder for maximum rigidity. Using a 16mm or 20mm shank at high feed rates with R1.6 may cause vibration and premature tool failure.
Q4: Should I use coolant with WNMG080416-TH T9125?
For steel roughing, flood coolant is recommended to manage the high heat generated at elevated feed rates and depths of cut. High-pressure coolant (HPC) is beneficial for chip evacuation at fn > 0.40 mm/rev. The PVD TiAlN coating on T9125 also supports dry cutting at moderate speeds if coolant is unavailable, but tool life will be reduced. Avoid intermittent coolant application as thermal shock can cause coating delamination.
Q5: What is the three-pass strategy for optimal productivity and surface finish?
For maximum efficiency in steel turning, use a three-pass strategy: (1) Roughing: WNMG080416-TH T9125 at fn 0.40–0.60 mm/rev, ap 2.0–5.0 mm — maximum MRR. (2) Semi-finishing: WNMG080408-TH T9125 at fn 0.15–0.35 mm/rev, ap 0.5–2.0 mm — leave 0.3–0.5 mm for finishing. (3) Finishing: WNMG080404-TSF T9115 at fn 0.05–0.15 mm/rev, ap 0.2–0.5 mm — achieve Ra ≤ 0.8 µm. This strategy optimizes cycle time, tool life, and surface quality simultaneously.

💡 Corner Radius & Grade Selection Tips – Tungaloy WNMG08 Complete Guide

  • R0.4 (080404): Finishing only. Ra ≤ 0.4 µm, fn ≤ 0.20 mm/rev, ap ≥ 0.2 mm. Use with TSF chipbreaker and T9115 grade.
  • R0.8 (080408): Semi-finishing. Ra ≤ 0.8 µm, fn ≤ 0.40 mm/rev, ap ≥ 0.5 mm. Use with TSF (T9115) or TH (T9125).
  • R1.2 (080412): Semi-finishing/light roughing. Ra ≤ 1.6 µm, fn ≤ 0.60 mm/rev, ap ≥ 1.5 mm. Use with TH chipbreaker and T9125.
  • R1.6 (080416) — This Product: Heavy roughing. Ra ≤ 3.2 µm, fn ≤ 0.70 mm/rev, ap ≥ 2.0 mm. Use with TH chipbreaker and T9125. Maximum MRR.
  • Critical rule for all large radii: ap must always exceed rε. Running ap < rε causes rubbing, vibration, and rapid wear regardless of grade or chipbreaker.
  • Grade escalation for interrupted cuts: T9115 → T9125 → AH725 → AH8015. Step up one grade for each increase in interruption severity.
  • Three-pass strategy: R1.6/TH/T9125 (roughing) → R0.8/TH/T9125 (semi-finishing) → R0.4/TSF/T9115 (finishing) = optimal productivity + quality.
