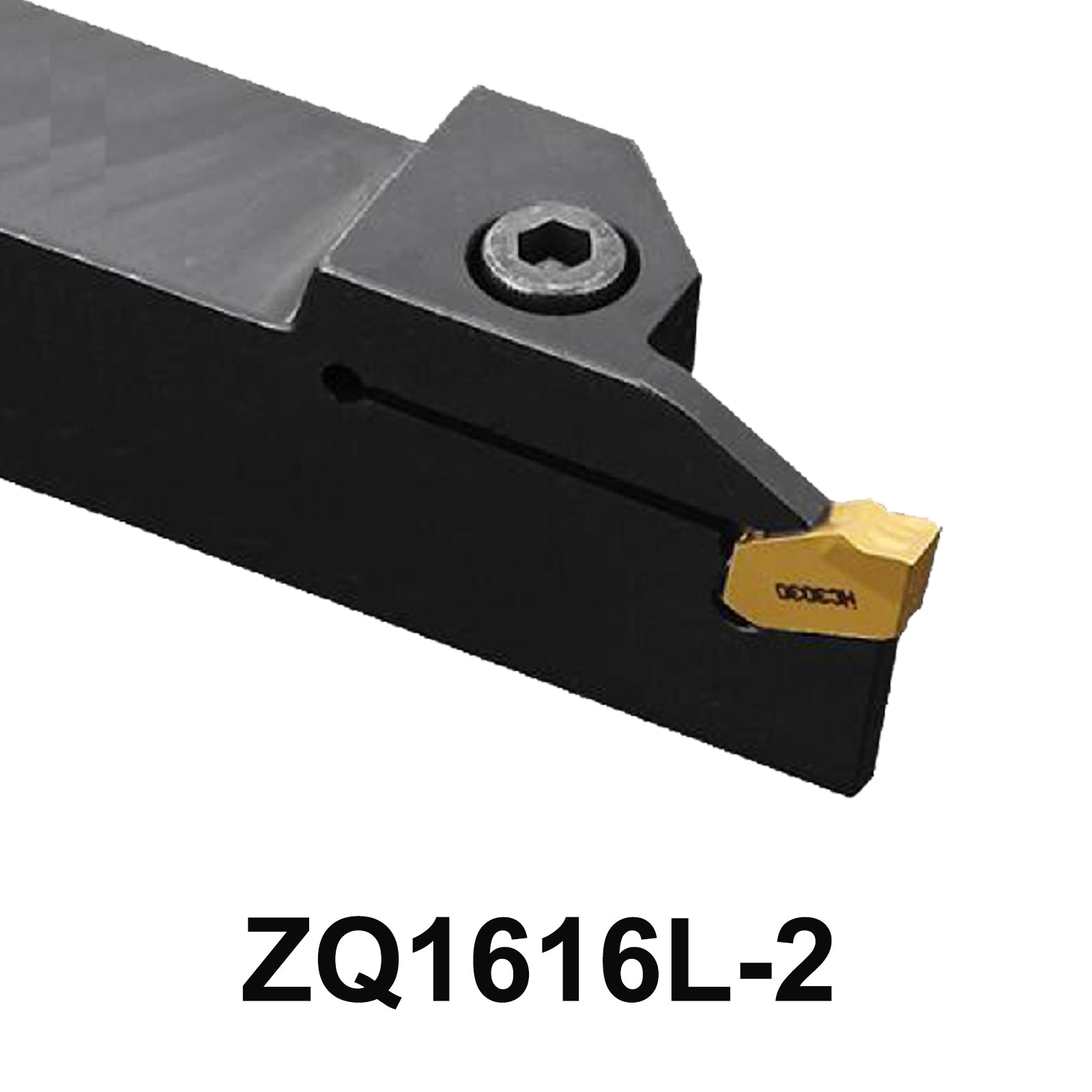

Shop ZQ1616L-2 External Grooving Toolholder – Precision Engineering for CNC Machining
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
ZQ1616L-2 External Grooving Toolholder, engineered for optimal performance in CNC machining applications. With a robust size of 16x16x100mm and a cutting width of 2mm
Compatible with ZQMX2N11-1E SP200 inserts, is perfect for professionals seeking reliable and high-quality tooling solutions.
Product parameters:
-
Tool Holder Model: ZQ1616L-2
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 16 * 16 * 100mm
- Tmax : 16mm
- Cutting width : About 2 mm
-
Applicable blade : ZQMX2N11-1E SP200
-
Screw : M5*20
-
Wrench : L4
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * ZQ1616L-2 External Grooving Toolholder
1 * "L" Type wrench
1 * M5*50 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND ZQ1616L-2 External Grooving Toolholder ZQ1616L-2 ZQ1616 ZQ1616 L-2 CNC Lathe Cutter Holder Machine Metal Tool
Enhance Your CNC Lathe Efficiency with the ZQ1616L-2 Tool Holder
Features and Benefits of the ZQ1616L-2 External Grooving Toolholder
5-Point Description
-
Precision Design: The ZQ1616L-2 External Grooving Toolholder is meticulously crafted with a size of 16x16x100mm and a cutting width of 2mm, ensuring exceptional precision in every cut.
-
Enhanced Compatibility: Designed to work seamlessly with ZQMX2N11-1E SP200 inserts, this tool holder maximizes versatility and performance for a variety of machining tasks.
-
Complete Package: Each package includes the tool holder along with necessary screws (M5*20) and a wrench (L4), providing a hassle-free setup and ensuring you have everything you need to get started.
-
Durable Construction: Made from high-quality materials, the ZQ1616L-2 is built to withstand rigorous machining conditions, ensuring longevity and reliability in your operations.
-
Improved Efficiency: Optimize your CNC lathe performance with the ZQ1616L-2, designed to enhance cutting speed and accuracy, making it an essential tool for any professional machinist.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
