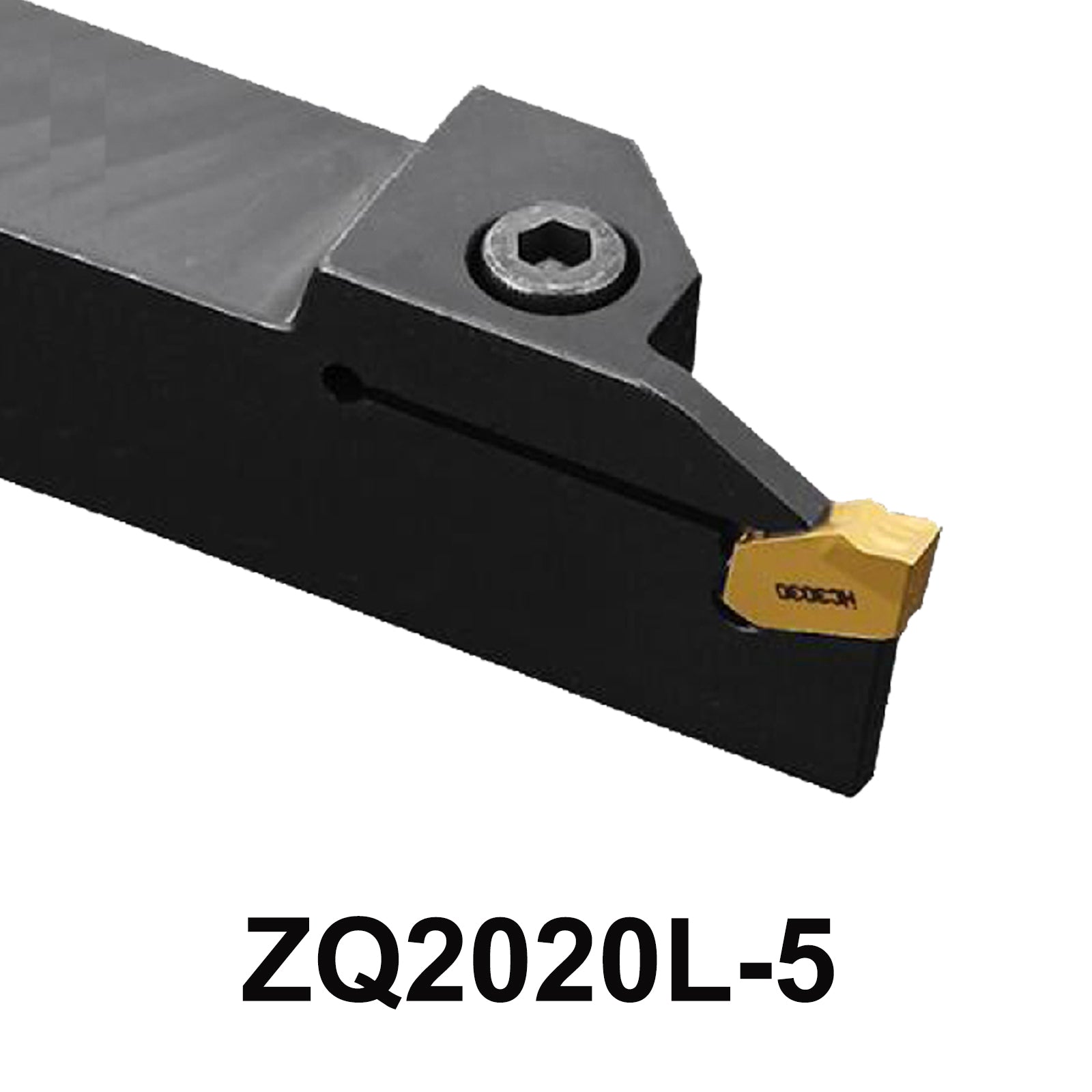

ZQ2020L-5 Grooving Turning Tool Holder – Precision CNC Tool for Efficient Machining
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
ZQ2020L-5 Grooving Turning Tool Holder, engineered for optimal performance in CNC machining applications. With a robust size of 20x20x125mm and a cutting width of 5.125mm
Compatible with ZQMX5N11-1E SP500 inserts, is perfect for professionals seeking reliable and high-quality tooling solutions.
Product parameters:
-
Tool Holder Model: ZQ2020L-5
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 20 * 20 * 125mm
- Tmax : 25mm
- Cutting width : About 5.125 mm
-
Applicable blade : ZQMX5N11-1E SP500
-
Screw : M6*22
-
Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * ZQ2020L-5 Grooving Turning Tool Holder
1 * "L" Type wrench
1 * M6*22 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND ZQ2020L-5 Grooving Turning Tool Holder ZQ2020L-5 ZQ2020 ZQ2020 L-5 CNC Lathe Cutter Holder Machine Metal Tool
Key Features of the ZQ2020L-5 Grooving Turning Tool Holder
Why the ZQ2020L-5 is Your Best Choice for CNC Grooving
5-Point Description
-
Superior Cutting Capacity: With a cutting width of 5.125mm and a maximum depth of 25mm, the ZQ2020L-5 Grooving Turning Tool Holder is engineered for precision grooving, making it perfect for a variety of machining applications.
-
Robust and Reliable Design: Measuring 20*20*125mm, this tool holder is constructed for durability, ensuring it withstands the demands of high-performance CNC operations.
-
Complete Tool Package: Each purchase includes essential M6*22 screws and an L5 wrench, providing everything you need for quick and easy installation right out of the box.
-
Versatile Insert Compatibility: Designed to work with ZQMXW5N11-1E and SP500 inserts, this holder offers the flexibility needed to tackle different materials and project requirements.
-
Ideal for Professionals: Crafted for CNC machining experts, the ZQ2020L-5 Grooving Turning Tool Holder delivers high-quality performance, ensuring precision and efficiency in every cut.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
