Buy ZQ2525R-4 Slotting Machine Cutting Tools | High-Quality CNC Tool Holder
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:

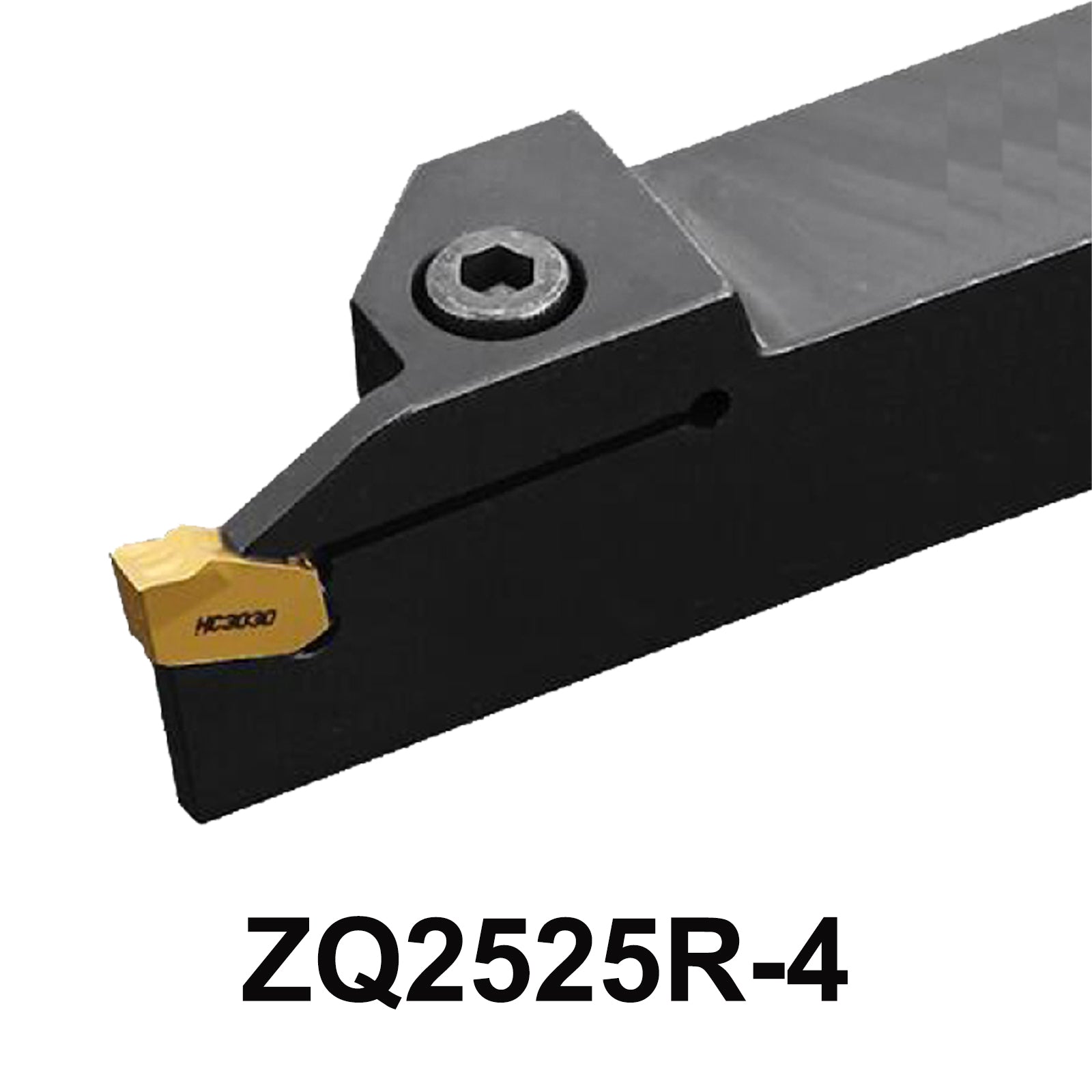

ZQ2525R-4 Grooving and Cut-Off Tools, engineered for optimal performance in CNC machining applications. With a robust size of 25x25x150mm and a cutting width of 4.125mm
Compatible with ZQMX4N11-1E SP400 inserts, is perfect for professionals seeking reliable and high-quality tooling solutions.
Product parameters:
-
Tool Holder Model: ZQ2525R-4
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 25 * 25 * 150mm
- Tmax : 20mm
- Cutting width : About 4.125 mm
-
Applicable blade : ZQMX4N11-1E SP400
-
Screw : M6*20
-
Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * ZQ2525R-4 Slotting Machine Cutting Tools
1 * "L" Type wrench
1 * M6*20 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND ZQ2525R-4 Slotting Machine Cutting Tools ZQ2525R-4 ZQ2525 ZQ2525 R-4 CNC Lathe Cutter Holder Machine Metal Tool
-
Enhance Your Machining Efficiency with the ZQ2525R-4 Tool Holder
-
ZQ2525R-4: The Ultimate Solution for Accurate Slotting
5-Point Description
-
Precision Engineering: The ZQ2525R-4 Slotting Machine Cutting Tools is designed for exceptional accuracy, ensuring clean and precise slots in various materials, enhancing your machining output.
-
Durable Construction: Made from high-quality materials, this cutting tool holder is built to withstand demanding applications, ensuring long-lasting reliability and performance.
-
Versatile Compatibility: The toolholder accommodates ZQMXW4N11-1E SP400 inserts, providing flexibility for diverse machining tasks and enabling you to tackle a variety of projects with ease.
-
Complete Tool Package: Each order includes the tool holder, M6*20 screws, and an L5 wrench, offering everything needed for a quick and efficient setup right out of the box.
-
Optimal Dimensions for Efficiency: With a lathe size of 25*25*150mm and a cutting maximum of 20mm, the ZQ2525R-4 is engineered for optimal performance, allowing you to achieve superior results in your slotting applications.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
