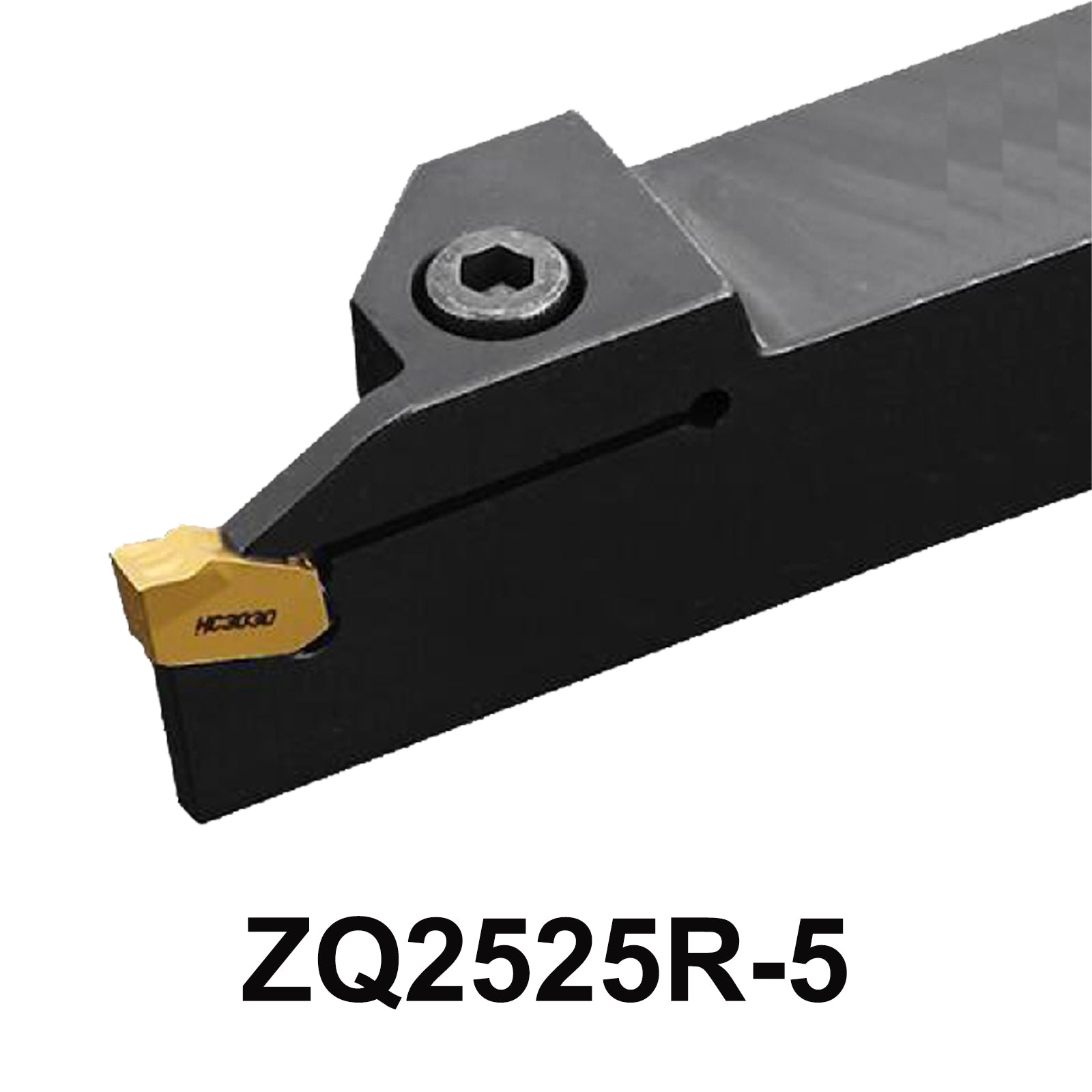

Buy ZQ2525R-5 CNC Lathe Grooving Tool Holder - Durable and Efficient
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Description:
ZQ2525R-5 CNC Lathe Grooving Tool Holder, engineered for optimal performance in CNC machining applications. With a robust size of 25x25x150mm and a cutting width of 5.125mm
Compatible with ZQMX5N11-1E SP500 inserts, is perfect for professionals seeking reliable and high-quality tooling solutions.
Product parameters:
-
Tool Holder Model: ZQ2525R-5
-
Tool Holder Material : Carbide Steel, Carbon Steel
-
Tool Holder Size : About 25 * 25 * 150mm
- Tmax : 25mm
- Cutting width : About 5.125 mm
-
Applicable blade : ZQMX5N11-1E SP500
-
Screw : M6*22
-
Wrench : L5
- Detailed Dimensions of the tool holder : as pictured
Package Contents:
1 * ZQ2525R-5 CNC Lathe Grooving Tool Holder
1 * "L" Type wrench
1 * M6*22 Type Screw
Features:
1.High-Quality Construction,ensures longevity and reliability
2.Unparalleled performance and tight tolerances
3.High grip, strong impact resistance, obvious speed advantage
4.Designed for precise grooving, ideal for complex machining tasks
5.The user can easily clamp and replace the blade and gasket with just a wrench
BEYOND ZQ2525R-5 External Grooving Turning Tools ZQ2525R-5 ZQ2525 ZQ2525 R-5 CNC Lathe Cutter Holder Machine Metal Tool
Maximize Efficiency with the ZQ2525R-5 Grooving Tool Holder
Exceptional Features of the ZQ2525R-5 CNC Tool Holder
5-Point Description
-
Robust Construction: The ZQ2525R-5 boasts a lathe size of 2525150mm, designed for stability and durability to withstand demanding machining tasks.
-
Precision Cutting: With a cutting width of 5.125mm and a maximum depth of 25mm, this tool holder delivers precise grooves, ensuring high-quality finishes in various materials.
-
Versatile Insert Compatibility: This tool holder is compatible with ZQMXW5N11-1E and SP500 inserts, providing flexibility for different applications and enhancing your machining capabilities.
-
User-Friendly Setup: The package includes M6*22 screws and an L5 wrench, making installation quick and effortless, so you can get to work without delay.
-
Brand New Quality: Crafted to high standards, the ZQ2525R-5 is a reliable addition to your CNC lathe equipment, perfect for professional and industrial use.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
