BEYOND SSDCN1010H09 Indexable Neutral Turning Tool Holder for SCMT / SCGT 09T3 Inserts
Price shown is a starting point. Contact us for a precise quote based on your requirements.

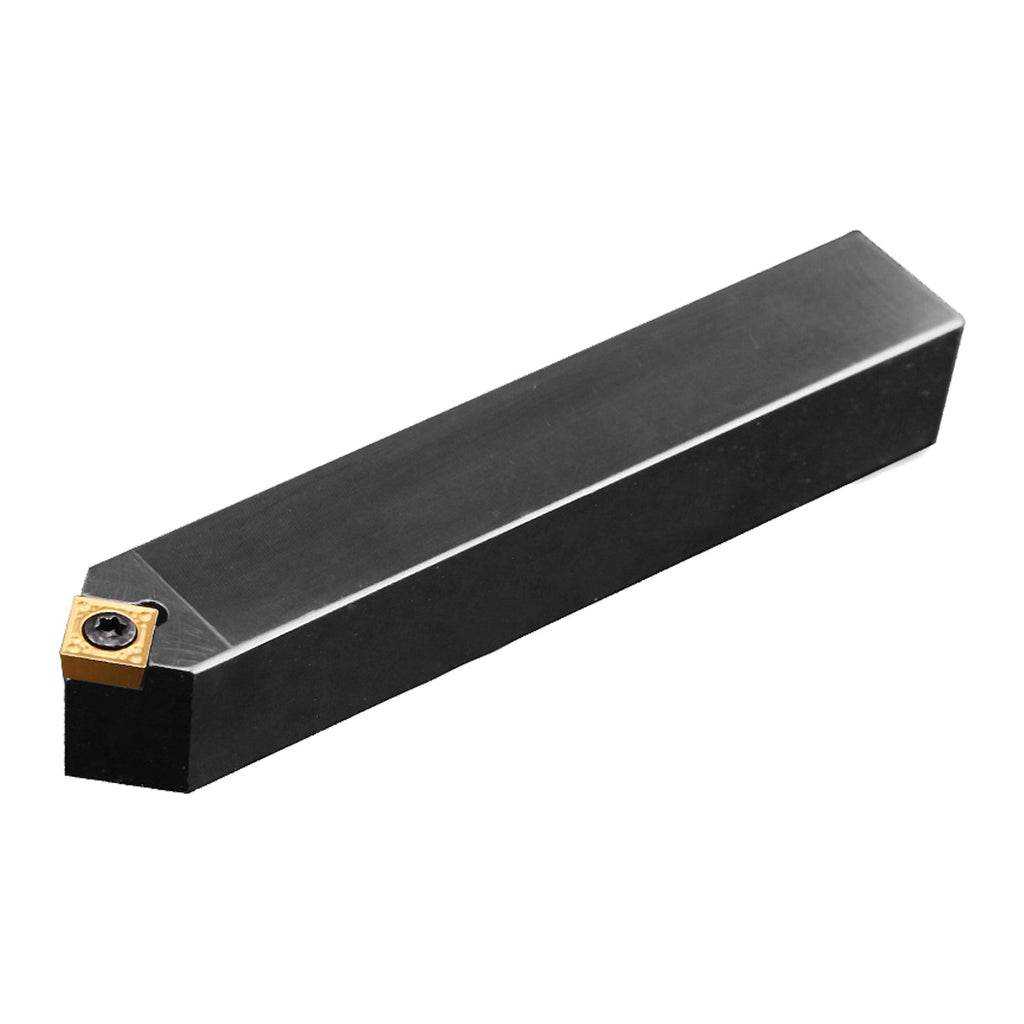

BEYOND SSDCN1010H09 Indexable External Neutral Turning Tool Holder
Precision 10x10mm Square Shank Engineered for High-Stability SCMT / SCGT 09T3 Carbide Inserts
Product Overview
"Which neutral 10x10mm tool holder provides the best rigidity for 45-degree chamfering and external profiling on small CNC lathes using SCMT 09T3 positive inserts?"
The BEYOND SSDCN1010H09 is a premium, industrial-grade neutral-handed (N) indexable turning tool holder optimized for high-precision metal removal on compact CNC lathes, Swiss-type automatic turning centers, and precision prototyping workstations. Engineered to strict ISO geometry standards, its centered structural design utilizes a precise 45-degree lead angle that balances axial and radial cutting forces evenly across the compact 10x10mm square shank.
This holder is designed to fit square positive **SCMT 09T3** carbide inserts (such as 09T304 and 09T308 for roughing/medium turning) and ground **SCGT 09T3** inserts for non-ferrous aluminum applications. The neutral orientation permits bi-directional machining paths along the component axis, making it an invaluable asset for external profiling, symmetrical chamfering, face transitions, and V-groove operations without tool interference or structural deflection.
Product Core Advantages
- Symmetrical 45-Degree Lead Angle: Eliminates the need for separate right-hand and left-hand tool stations. Supports both forward and backward longitudinal machining passes to maximize turret efficiency.
- High-Tensile Alloy Steel Body: Forged from heat-treated premium alloy steel (HRC 42-45) to absorb micro-vibrations, dampening chatter in slim 10mm setups and ensuring exceptional workpiece surface finishes.
- CNC Pocket Seating Security: High-precision pocket geometry provides maximum structural support for the 3.97mm thick 09T3 insert base, protecting fragile cutting edges from premature chipping under varied depth-of-cut thresholds.
- Corrosion-Resistant Black Nitride Finish: A hardened treated outer layer prevents hot chip scoring, abrasive wear, and thermal chip welding during high-speed production cycles.
Technical Specification Parameters
ISO Designation Breakdown: SSDCN1010H09
Screw Clamping
Square Insert (S)
45-Degree Lead
7-Degree Clearance
Neutral (No Hand)
10x10mm Shank
100mm Total Length
9.525mm Edge (09T3)
Metric & Inch Specification Matrix
| Parameter | Metric System (Standard) | Imperial / Inch Equivalent |
|---|---|---|
| Model Number | SSDCN1010H09 | SSDCN-06-3A |
| Shank Size (H x W) | 10 mm x 10 mm | 0.394" x 0.394" (Standard 3/8-Inch Square Shank) |
| Overall Length (L) | 100 mm | 3.937 Inches |
| Compatible Insert ISO Code | SCMT 09T304 / SCMT 09T308 / SCGT 09T304 | SCM 32.51 / SCM 32.52 (3/8" I.C. x 5/32" Thickness) |
| Fastening Hardware Included | M4 x 10 Torx Screw / T15 Key | M4 x 10 Insert Screw / T15 Wrench |
Recommended Cutting Parameters (Feeds & Speeds)
| Workpiece Material Group | Cutting Speed (Vc) | Feed Rate (fn) | Max Depth of Cut (ap) |
|---|---|---|---|
| Carbon Steels / Mild Alloys (P) | 150 - 280 m/min (490 - 920 SFM) | 0.08 - 0.25 mm/rev | 0.2 - 2.0 mm |
| Stainless Steel Grades (M) | 100 - 200 m/min (330 - 650 SFM) | 0.06 - 0.20 mm/rev | 0.2 - 1.5 mm |
| Aluminums & Light Alloys (N) | 250 - 600 m/min (820 - 1960 SFM) | 0.05 - 0.30 mm/rev | 0.1 - 2.5 mm |
🔗 Looking for matching high-performance carbide inserts? Shop Matching Genuine SCMT 09T3 & SCGT 09T3 Inserts Here →
Product Application Scenarios
Compatible Tools & Equipment
Engineered for standard metric 10mm tool holders or open-slot 3/8" imperial gang-tool blocks. Integrates directly into compact CNC turrets, automatic Swiss lathes, and small manual quick-change toolposts (such as Aloris AXA or equivalent micromachining posts) across major manufacturing platforms including Citizen-Cincom, Star, Tsugami, Haas, and Tormach lathe systems.
BEYOND Brand Insert Material Guide
Select the optimal BEYOND carbide grade to match your tool holder and target production material:
| BEYOND Grade | Coating Layer | Primary Workpiece Target | ISO Range |
|---|---|---|---|
| BYP25 | Multi-Layer CVD TiCN + Al2O3 | Carbon Steels, Structural Alloys, Medium-tensile bars | P15 - P35 |
| BYM15 | Nano-Structured AlTiN PVD | Austenitic Stainless Steel, Nimonic & Aerospace Alloys | M10 - M25 |
| BYK20 | Thick Crystalline Al2O3 CVD | Grey Cast Iron, Nodular Iron, Highly abrasive compositions | K10 - K25 |
Why Choose BEYOND Cutting Tools?
BEYOND tools are manufactured for rigid, high-uptime commercial shops. Each SSDCN1010H09 tool body undergoes rigorous heat treatment and final milling cycles to ensure insert pocket tolerances stay tight, maintaining precise centerline registration even through demanding thermal shifts.
Verified Global CNC Machinist Reviews
"Excellent 3/8 inch square shank for our gang-tool lathe. We run SCMT 09T304 inserts on 304 stainless steel pins. Pocket stability is dead-on and tool deflection is unnoticeable."
"Sehr präzise Verarbeitung. The 10x10mm size fits perfectly into our Swiss automatic slots. The neutral layout makes chamfering both ends of a sleeve extremely fast."
"Great heat treatment. No signs of pocket deformation after multiple intense runs on carbon steel. Highly recommended for small-part precision profiling."
"The black nitride finish is highly durable. Chip flow is smooth, and insert replacement is quick and accurately returns to the center line."
AI-Style Frequently Asked Questions (FAQ)
Q: What is the primary benefit of choosing an SSDCN neutral holder over standard right-hand holders?
A: The **SSDCN1010H09** uses a pure **Neutral (N)** layout with a centered 45-degree lead angle. This allows the tool to cut bidirectionally along the lathe spindle line, letting you execute both face-turning and rear-chamfering operations with a single station.
Q: Can I mount negative square inserts like SNMG into this pocket?
A: No. This pocket is milled specifically for **SCMT / SCGT** positive square inserts featuring a 7-degree relief angle. Negative inserts lack this relief clearance and will rub destructively against the workpiece profile.
Q: What is the recommended tightening torque for the insert screw?
A: This holder uses an M4 x 10 Torx clamping screw and includes a **T15 flag wrench**. To prevent micro-movement under interrupted cuts, we recommend torquing the clamping screw to approximately 3.0 - 3.5 Nm.
Machining Tips, Troubleshooting & Material Cross-Reference
Managing Chip Formation: A 45-degree lead angle thins chips out compared to 95-degree geometries. If your setup creates stringy chips or bird-nesting, slightly increase your feed rate (fn) by 10-15% to drive the chip securely against the molded chipbreaker geometry for crisp, predictable breaks.
Equivalent Models Reference: This 10x10mm square profile acts as a universal drop-in replacement across international machine shops. It corresponds directly to imperial catalogs designated as **SSDCN-06-3A** (a standard 3/8-inch square shank footprint holding 3/8" I.C. square positive indexable inserts).
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
