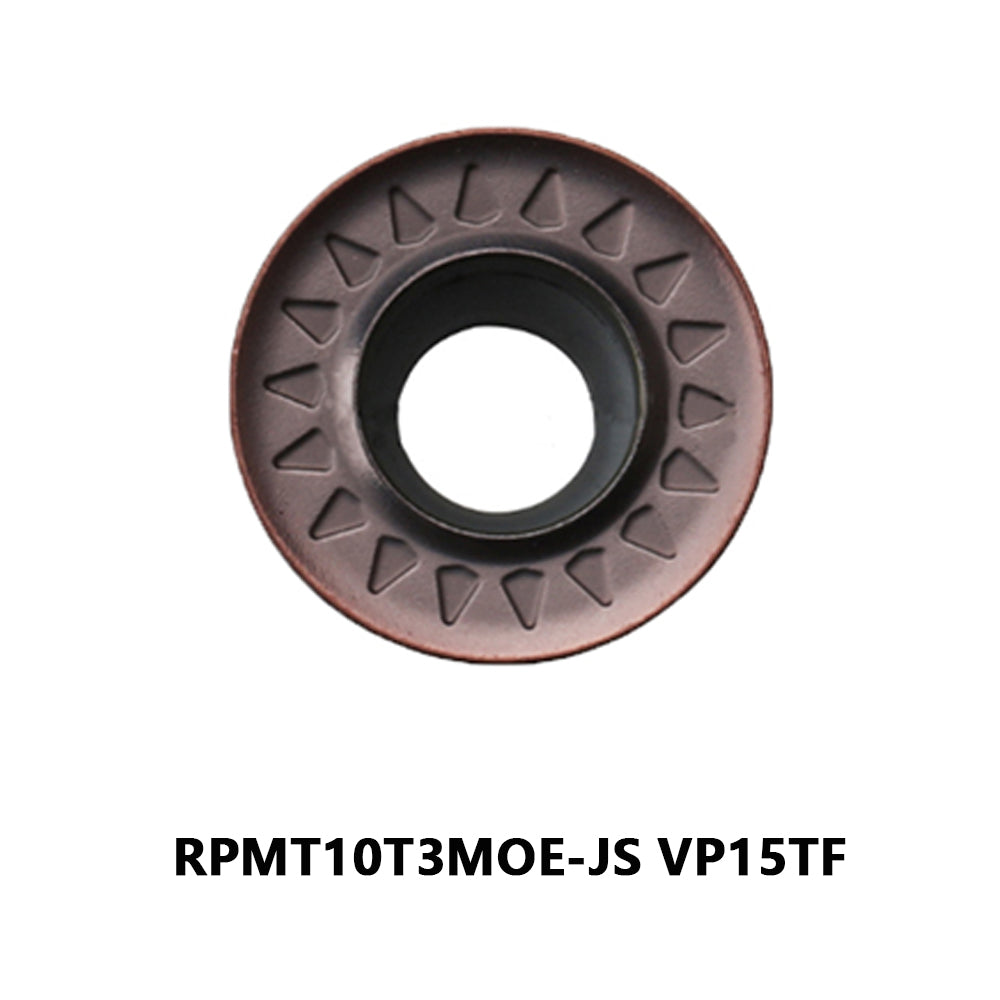

RPMT10T3MOE-JS VP15TF
Mitsubishi Materials | Precision Miracle Coated Round Milling Insert
The Mitsubishi RPMT10T3MOE-JS VP15TF is a heavy-duty round milling insert (10mm diameter) engineered for superior versatility in copy milling and profiling. Combining the high-performance VP15TF Miracle PVD coating with the precision-ground JS chipbreaker, this insert excels in machining stainless steel, carbon steel, and difficult-to-cut alloys. It is the professional's choice for reducing cutting resistance while maintaining long tool life in high-vibration environments.
Technical Specifications
| ISO Designation | RPMT10T3MOE-JS |
|---|---|
| ANSI Designation | RPMT 3.53 MOE-JS |
| Grade Category | VP15TF (Miracle Al-Ti-N PVD) |
| Diameter ($IC$) | 10.0 mm (0.394") |
| Thickness ($S$) | 3.97 mm (0.156") |
VP15TF Miracle Grade
The VP15TF grade utilizes Mitsubishi’s proprietary PVD coating technology. It offers an excellent balance between toughness and wear resistance. This grade is specifically designed to handle interrupted cuts in stainless steel milling and is highly resistant to welding and chip adhesion, a common issue in gummy materials.
JS Low-Resistance Slot
The JS chipbreaker features a 3D sharp-edged geometry. In indexable milling, the JS design focuses on lowering cutting resistance and preventing work hardening. Its smooth chip-evacuation path makes it ideal for 3D profiling and deep pocketing where heat buildup must be controlled.
Recommended Cutting Parameters
Optimized for Versatile Milling (P20 - M30)
| Workpiece Material | Cutting Speed ($v_c$) | Feed per Tooth ($f_z$) |
|---|---|---|
| Mild/Alloy Steel | 120 - 220 m/min | 0.12 - 0.30 mm/t |
| Stainless Steel (304/316) | 80 - 150 m/min | 0.10 - 0.25 mm/t |
| Nodular Cast Iron | 100 - 180 m/min | 0.15 - 0.35 mm/t |
SRM / SRF CUTTER COMPATIBILITY
The RPMT10T3 is engineered for high-performance Mitsubishi SRM series round insert cutters.
View Milling Tool Holders →Metric vs. Inch Cross-Reference
| Feature | Metric (ISO) | Inch (ANSI) |
|---|---|---|
| Insert Size | 10 (10.0 mm) | 3.5 (3/8" or 0.394") |
| Thickness | T3 (3.97 mm) | 3 (5/32" or 0.156") |
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
