Reasons for Choosing:

Choose the S16Q-SDJCR11 for its superior precision, durable alloy steel build, and versatile compatibility with various carbide inserts. Its design ensures stable performance, making it an excellent choice for intricate internal machining tasks.

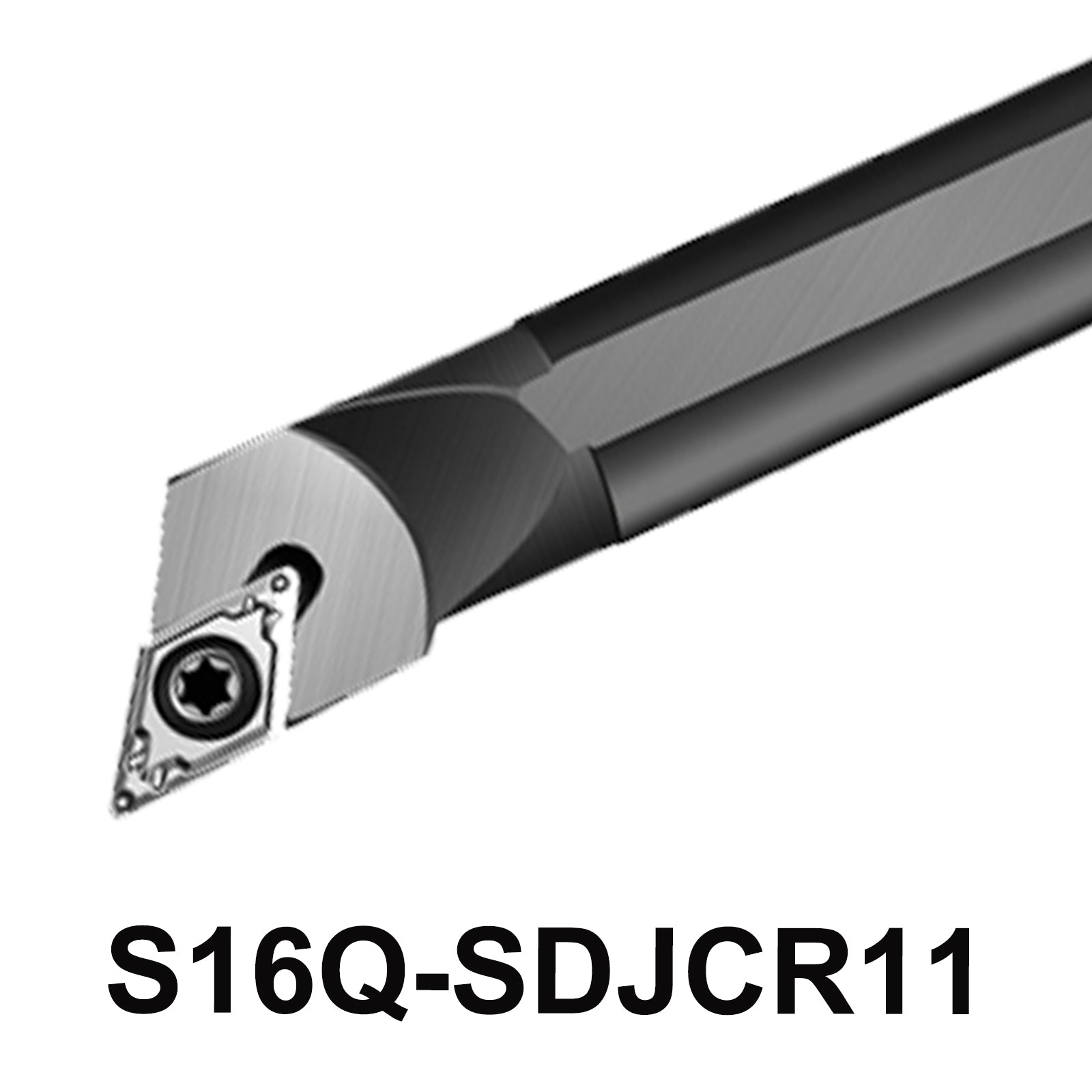

S16Q-SDJCR11 CNC Internal Boring Bar Tool Holder S16Q SDJCR11carbide boring bars

• Superior Design for Precise Internal Boring

• Robust and Versatile Tool Holder

• Optimal Performance for CNC Machining

• Detailed Specifications and Dimensions

• High-Quality Alloy Material and Construction

• Compatibility with Various DCMT Inserts

Overview

The S16Q-SDJCR11 CNC internal boring bar tool holder is engineered for precision and durability, making it an essential tool for mechanical lathes and CNC machines. With a 93° cutting edge angle and a 7° relief angle, this tool holder ensures high-accuracy internal machining. Its 16mm handle diameter and 180mm length provide excellent stability, while the compatibility with DCMT carbide inserts enhances its versatility.

Key Features

• Cutting Edge Angle: 93°
• Relief Angle: 7°
• Material: Alloy Steel
• Handle Diameter: 16mm
• Total Length: 180mm
• Blade Length: 11mm
• Compatible Inserts: DCMT11T302,DCMT11T304,DCMT11T308, DCMT3(2.5)0, DCMT3(2.5)1,DCMT3(2.5)2
• Includes: M4*10 Screws, T15 Wrench

5-Point Description:

• High Precision: 93° cutting edge angle with 7° blade relief for accurate internal turning.
• Durable Material: Constructed from high-quality alloy steel for enhanced longevity.
• Stable Design: 16mm handle diameter and 180mm length for reliable performance.
• Versatile Compatibility: Works with DCMT11T302, DCMT11T304, DCMT11T308, and other DCMT inserts.
• Convenient Tooling: Includes M4*10 screw and T15 wrench for easy adjustments.

Application:

The S16Q-SDJCR11 is ideal for internal boring and turning tasks in CNC machines and mechanical lathes, offering precise and reliable performance across various applications.

Advantages:

• Precision Cutting: Accurate internal machining with minimal error.
• Robust Construction: Alloy steel ensures durability and a long tool life.
• Versatile Use: Compatible with multiple DCMT carbide inserts.
• Enhanced Stability: Designed for stable and efficient operation.
• Ease of Maintenance: Comes with necessary tools for quick adjustments.
