Description

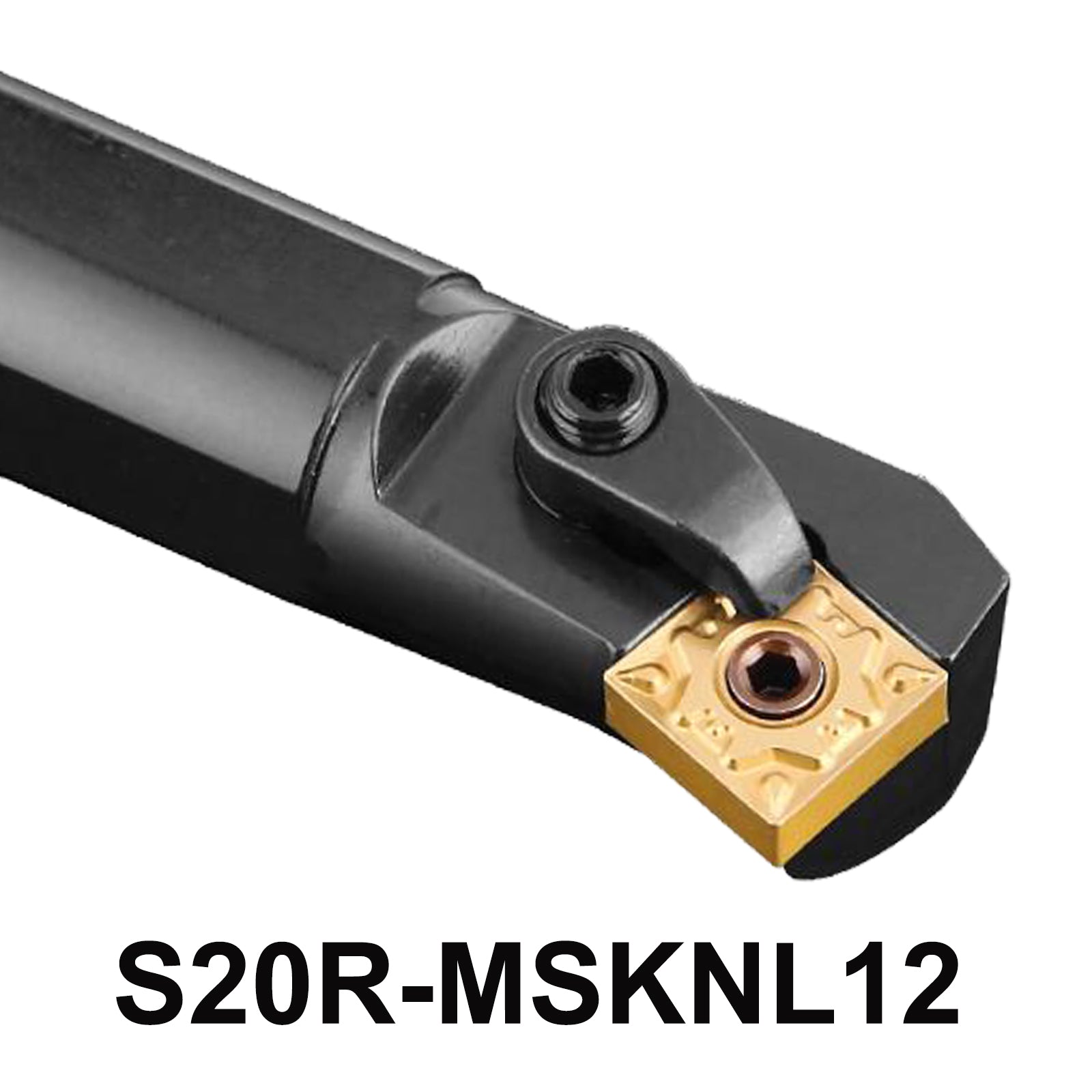

S20R-MSKNL12 Internal Boring Bar Tool Holder for CNC Lathes S20R MSKNL12  small boring bar


Precision Tool Holder for Internal Turning Operations


Product Name:S20R-MSKNL12 Internal Boring Bar Tool Holder - CNC Lathe Cutter

Product Overview:The S20R-MSKNL12 is a robust internal boring bar tool holder designed for CNC lathes and machining centers. Crafted from durable alloy steel, it features a 20mm diameter handle and a 12mm cutting blade length. Equipped with an M-type multi-lock system.This tool holder supports a range of SNMG carbide inserts (SNMG120404, SNMG120408, SNMG120412, SNMG120416, SNMG431, SNMG432, SNMG433, SNMG434)

Key Features:

  • Tool Cutting Edge Angle: 75°
  • Relief Angle of Blade:
  • Material: Alloy Steel
  • Total Length: 200mm
  • Diameter handle:20mm
  • Length of Cutting Blade: 12mm
  • Includes Pin: CTM613,
  • Clamp: HL1810,
  • Screw: ML0620,
  • Wrench: L3.0
  • Carbide inserts: SNMG120404, SNMG120408, SNMG120412, SNMG120416, SNMG431, SNMG432, SNMG433, SNMG434

Applications:Ideal for precise internal turning tasks in CNC machining environments.

Usage Recommendations:Ensure proper installation and alignment of inserts. Regular maintenance and inspection recommended for optimal performance and longevity.

Compatibility:Compatible with CNC machine tools and lathes, facilitating efficient and accurate machining processes.



5-Point Description:

  1. Precision Engineering: Crafted from high-quality alloy steel, the S20R-MSKNL12 internal boring bar tool holder is engineered for precision machining tasks. It features a 75° tool cutting edge angle and a 0° relief angle, ensuring optimal cutting performance and tool longevity.
  2. Secure and Stable: Equipped with an M-type multi-lock system, this tool holder provides a secure grip and stability during machining operations. It includes a robust clamp (HL1810), screws (ML0620), and a pin (CTM613) for enhanced tool security and alignment.
  3. Versatile Compatibility: Designed for CNC machine tools and lathes, it supports a variety of SNMG carbide inserts (SNMG120404, SNMG120408, SNMG120412, SNMG120416, SNMG431, SNMG432, SNMG433, SNMG434).
  4. Optimized Dimensions: With a 20mm diameter handle and a 12mm cutting blade length, the tool holder balances strength and maneuverability. Its total length of 200mm accommodates precise internal turning operations, making it suitable for diverse industrial needs.
  5. Application Excellence:The S20R-MSKNL12 tool holder excels in creating smooth finishes and maintaining dimensional integrity, contributing to overall machining efficiency.
