Cermet:TN60 ,  Designation: VNMG160408 TN60 Corner Radius(in) RE:1/32,Color: Gray , Coating / Main Component: TiCN+NbC Advantages:Application: Machining of steel, continuous to interruption

CVD Coated Carbide:CA6525,  Designation: VNMG160408MS CA6525 Corner Radius (in):1/32,Superior cutting edge sharpness and strength achieved by a positive land. Extra strength of cutting edge inhibits damage from wall shouldering.Stainless Steel:Light Interruption...

CVD Coated Carbide:CA6525,  Designation: VNMG160408MQ CA6525 Corner Radius (in):1/32, Large rake angle and circular edge line.Low cutting force and good chip control.Stainless Steel:Light Interruption / 1st Choice,HRSA:Light Interruption / 2nd Choice,Color:Gold,...

CVD Coated Carbide:CA6525,  Designation: VNMG160404MS CA6525 Corner Radius (in):1/64,Superior cutting edge sharpness and strength achieved by a positive land. Extra strength of cutting edge inhibits damage from wall shouldering.Stainless Steel:Light Interruption...

CVD Coated Carbide:CA6525,  Designation: VNMG160404MQ CA6525 Corner Radius (in):1/64,Large rake angle and circular edge line.Low cutting force and good chip control.Stainless Steel:Light Interruption / 1st Choice,HRSA:Light Interruption / 2nd Choice,Color:Gold, Coating...

CVD Coated Carbide:CA5525,  Designation: VNMG160404 CA5525 Corner Radius (in):1/64,Carbon/Alloy Steel:Light Interruption / 2nd Choice,Color: Gold , Coating / Main Component:TiCN+Al2O3+TiN,Advantages: Application: For general machining of steel, roughing to interruption

CVD Coated Carbide:CA5515,  Designation: VNMG160404HQ CA5515 Corner Radius (in):1/64 ,Sharp cutting performance with 3-D rake angle and double projection design.Color:Gold, Coating / Main Component:TiCN+Al2O3+TiN,Advantages:Application: Machining of steel, continuous to light interruption...

CVD Coated Carbide:CA5515,  Designation: VNMG160408HQ CA5515 Corner Radius (in):1/32,Sharp cutting performance with 3-D rake angle and double projection design.Color:Gold, Coating / Main Component:TiCN+Al2O3+TiN,Advantages:Application: Machining of steel, continuous to light interruption

CVD Coated Carbide:CA5515,  Designation: VNMG160408 CA5515 Corner Radius (in):1/32,Color:Gold, Coating / Main Component:TiCN+Al2O3+TiN,Advantages:Application: Machining of steel, continuous to light interruption

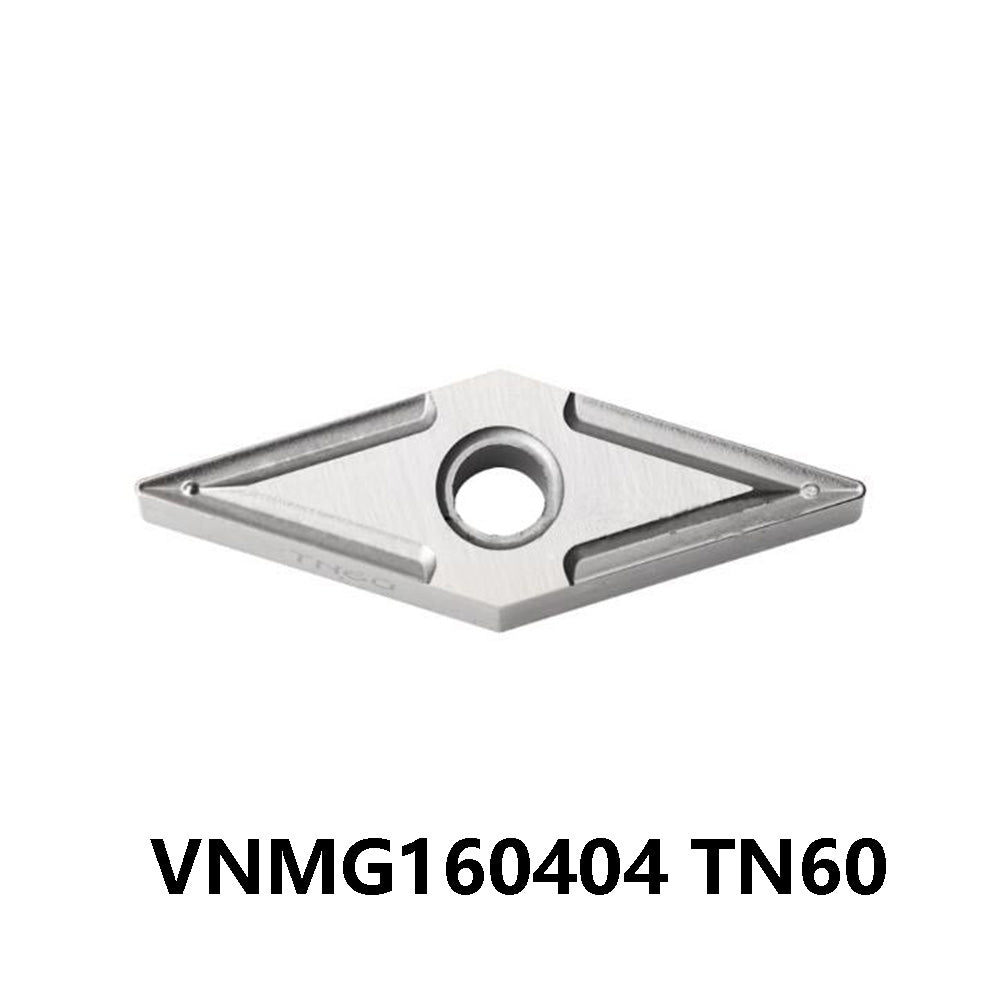

Cermet:TN620,  Designation:VNMG160404 TN620 Corner Radius (in):1/64 ,Carbon/Alloy Steel:Light Interruption / 1st Choice,Color: Gray, Coating / Main Component:TiCN,Advantages:High wear resistance and chipping resistance cermet due to three hybrid technology attributes,Application: Cermet...

MEGA COAT Cermet:PV720,  Designation: VNMG160404 PV720 Corner Radius (in):1/64,Carbon/Alloy Steel:Light Interruption / 1st Choice Color:Gold, Coating / Main Component:TiCN(MEGACOAT NANO) ,Advantages:Superior wear and adhesion resistant MEGACOAT NANO on wear resistant, tough cermet,Application:...

PVD Coated Carbide:PR1115,  Designation:VNMG160404MQ PR1125 RE: 1/64,Large rake angle and circular edge line.Low cutting force and good chip control.Color:Purple Red , Coating / Main Component:TiAlN, Advantages:Superior oxidation resistance with well balanced wear resistance...

Carbide:KW10,  Designation: WBGT060102L-F KW10 RE: 0.008,Carbide:Light Interruption / 1st Choice,Non-ferrous Metals:Light Interruption / 1st Choice,Titanium Alloy:Light Interruption / 1st Choice, Color:Reddish Gray , Coating / Main Component:WC+Co, Advantages:ISO identification symbol K carbide...

Carbide:KW10,  Designation: WBGT060104L-F KW10 RE: 1/64,Carbide:Light Interruption / 1st Choice,Non-ferrous Metals:Light Interruption / 1st Choice,Titanium Alloy:Light Interruption / 1st Choice, Color:Reddish Gray , Coating / Main Component:WC+Co, Advantages:ISO identification symbol K carbide...

PVD Coated Carbide:PR930 ,  Designation: WBGT060102L-F PR930 Corner Radius(in) RE:0.008 , Carbon Steel / Alloy Steel:Light Interruption / 2nd Choice ,Stainless Steel:Light Interruption / 2nd Choice Color:Reddish Gray , Coating / Main Component:...

PVD Coated Carbide:PR930 ,  Designation: WBGT060104L-F PR930 Corner Radius(in) RE:1/64, Carbon Steel / Alloy Steel:Light Interruption / 2nd Choice ,Stainless Steel:Light Interruption / 2nd Choice Color:Reddish Gray , Coating / Main Component: iAlN...

Cermet:TN60 ,  Designation: WBGT060102L-F TN60 Corner Radius(in) RE:0.008 ,Color: Gray , Coating / Main Component: TiCN+NbC Advantages:Application: Machining of steel, continuous to interruption

Cermet:TN60 ,  Designation:WBGT060104L-F TN60 Corner Radius(in) RE:1/64,Color: Gray , Coating / Main Component: TiCN+NbC Advantages:Application: Machining of steel, continuous to interruption

Cermet:TN60 ,  Designation:WBGT080202L-F TN60 Corner Radius(in) RE:0.008,Color: Gray , Coating / Main Component: TiCN+NbC Advantages:Application: Machining of steel, continuous to interruption

PVD Coated Carbide:PR930 ,  Designation: WBGT080204L-F PR930 Corner Radius(in) RE:1/64, Carbon Steel / Alloy Steel:Light Interruption / 2nd Choice ,Stainless Steel:Light Interruption / 2nd Choice Color:Reddish Gray , Coating / Main Component: iAlN...

Cermet:TN6020,  Designation: WBGT080204L-F TN6020 Corner Radius(in) RE:1/64,Carbon/Alloy Steel:Light Interruption / 2nd Choice ,Color: Gray , Coating / Main Component: TiCN, Advantages:Application: Uncoated cermet for steel

CVD Coated Carbide:CA5525,  Designation: WBMT060102L-DP CA5525 Corner Radius (in):0.008 ,Carbon/Alloy Steel:Light Interruption / 2nd Choice,Color: Gold , Coating / Main Component:TiCN+Al2O3+TiN,Advantages: Application: For general machining of steel, roughing to interruption

CVD Coated Carbide:CA5525,  Designation: WBMT060104L-DP CA5525 Corner Radius (in):1/64,Carbon/Alloy Steel:Light Interruption / 2nd Choice,Color: Gold , Coating / Main Component:TiCN+Al2O3+TiN,Advantages: Application: For general machining of steel, roughing to interruption

CVD Coated Carbide:CA5525,Designation:WBMT080204L-DP CA5525 Corner Radius (in):1/64,Color:Gold Carbon/Alloy Steel:Light Interruption / 2nd Choice Coating / Main Component:TiCN+Al2O3+TiN, Advantages:Application: For general machining of steel, roughing to interruption

PVD Coated Carbide:PR930 ,  Designation: WBMT060102L-DP PR930 Corner Radius(in) RE:0.008 , Carbon Steel / Alloy Steel:Light Interruption / 2nd Choice ,Stainless Steel:Light Interruption / 2nd Choice Color:Reddish Gray , Coating / Main Component:...

PVD Coated Carbide:PR930,Designation: WBMT060104L-DP PR930 Corner Radius(in) RE:1/64, Carbon Steel / Alloy Steel:Light Interruption / 2nd Choice ,Stainless Steel:Light Interruption / 2nd Choice Color:Reddish Gray , Coating / Main Component: iAlN , Advantages:Application:...

Cermet:TN60 ,  Designation: WBMT060102L-DP TN60 Corner Radius(in) RE:0.008 ,Color: Gray , Coating / Main Component: TiCN+NbC Advantages:Application: Machining of steel, continuous to interruption

Cermet:TN60 ,  Designation: WBMT060104L-DP TN60 Corner Radius(in) RE:1/64,Color: Gray , Coating / Main Component: TiCN+NbC Advantages:Application: Machining of steel, continuous to interruption

PVD Coated Carbide:PR930, Designation: WBMT080204L-DP PR930 Corner Radius(in) RE:1/64, Carbon Steel / Alloy Steel:Light Interruption / 2nd Choice ,Stainless Steel:Light Interruption / 2nd Choice Color:Reddish Gray , Coating / Main Component: iAlN , Advantages:Application:...

CVD Coated Carbide:CA5525,Designation:WNMG060404HQ CA5525 ANSI:WNMG331HQ Corner Radius (in):1/64,Color:Gold Carbon/Alloy Steel:Light Interruption / 2nd Choice Coating / Main Component:TiCN+Al2O3+TiN, Advantages:Application: For general machining of steel, roughing to interruption HQ:Sharp cutting performance with...

Cermet:TN60,Designation:WNMG060404HQ TN60 ANSI:WNMG331HQ TN60 Corner Radius(in) RE:1/64,Color: Gray, Coating / Main Component: TiCN+NbC Advantages:Application: Machining of steel, continuous to interruption HQ:Sharp cutting performance with 3-D rake angle and double projection design. TURNING...

CVD Coated Carbide:CA5525,Designation:WNMG060408HQ CA5525 ANSI:WNMG332HQ Corner Radius (in):1/32,Color:Gold Carbon/Alloy Steel:Light Interruption / 2nd Choice Coating / Main Component:TiCN+Al2O3+TiN, Advantages:Application: For general machining of steel, roughing to interruption HQ:Sharp cutting performance with...

Cermet:TN60,Designation:WNMG060408HQ TN60 ANSI:WNMG332HQ Corner Radius(in) RE:1/32,Color: Gray, Coating / Main Component: TiCN+NbC Advantages:Application: Machining of steel, continuous to interruption HQ:Sharp cutting performance with 3-D rake angle and double projection design. TURNING INSERTS...

MEGA COAT Cermet:PV720,Designation:WNMG080402PP PV720 ANSI:WNMG4305PP Corner Radius (in):0.08,Carbon/Alloy Steel:Light Interruption / 1st Choice Color:Gold,Coating / Main Component:TiCN(MEGACOAT NANO) Advantages:Superior wear and adhesion resistant MEGACOAT NANO on wear resistant, tough cermet,Application: First...

CVD Coated Carbide:CA4515,Designation:WNMG080404 CA4515 ANSI:WNMG431 CA4515 Corner Radius (in):1/64 Color:Blackish Gray,Coating Layer:Thick Coating, Coating / Main Component:TiCN+Al2O3, Density:15.0,Hardness of Substrate:(HV):1.570,(GPa):15.4, Fracture Toughness (MPam1/2):12.0,Flexural Toughness (MPa):2.780   Advantages:Stable, longer tool life due to improved...

CVD Coated Carbide:PR1125,Designation:WNMG080404 PR1125  ANSI:WNMG431 PR1125 Corner Radius (in):1/64 Color:Purple Red,Coating Layer:Thick Coating, Coating / Main Component:TiAlN Advantages:Hard TiAlN base PVD coated super micro-grain carbide, superior toughness and heat resistance  Application: Finishing...

Cermet:TN60,Designation:WNMG080404 TN60 ANSI:WNMG431 CA4515  Corner Radius(in) RE:1/64,Color: Gray, Coating / Main Component: TiCN+NbC Advantages:Application: Machining of steel, continuous to interruption TURNING INSERTS (NEGATIVE)

CVD Coated Carbide:CA515,Designation:WNMG080404CQ CA515 ANSI:WNMG431 CA515 Carbon/Alloy Steel: Continuous / 1st Choice Corner Radius(in) RE:1/64,Color: Gold, Coating / Main Component: TiCN+Al2O3+TiN Advantages:Improved wear resistance and stability due to special substrate with heat...

CVD Coated Carbide:CA5515,Designation:WNMG080404CQ CA5515 ANSI:WNMG431CQ CA5515 Corner Radius(in) RE:1/64,Color: Gold, Coating / Main Component: TiCN+Al2O3+TiN Advantages:Application: Machining of steel, continuous to light interruption CQ:Good chip control at various D.O.C. such as...

CVD Coated Carbide:CA5525,Designation:WNMG080404CQ CA5525 ANSI:WNMG431 CA5525 Carbon/Alloy Steel:Light Interruption / 2nd Choice Corner Radius(in) RE:1/64,Color: Gold, Coating / Main Component: TiCN+Al2O3+TiN Advantages:Application: For general machining of steel, roughing to interruption CQ:Good...

CVD Coated Carbide:CA5525,Designation:WNMG080404GS CA5525 ANSI:WNMG431 CA5525 Carbon/Alloy Steel:Light Interruption / 2nd Choice Corner Radius(in) RE:1/64,Color: Gold, Coating / Main Component: TiCN+Al2O3+TiN Advantages:Application: For general machining of steel, roughing to interruption GS:Strong...

CVD Coated Carbide:CA5515,Designation:WNMG080404HQ CA5515 ANSI:WNMG431HQ CA5515 Corner Radius(in) RE:1/64,Color: Gold, Coating / Main Component: TiCN+Al2O3+TiN Advantages:Application: For general machining of steel, roughing to interruption HQ: Sharp cutting performance with 3-D rake...

CVD Coated Carbide:CA6525,Designation:WNMG080404HQ CA6525 ANSI:WNMG431HQ CA6525,Stainless Steel:Light Interruption / 1st Choice HRSA:Light Interruption / 2st Choice Corner Radius(in) RE:1/64,Color: Gold, Coating / Main Component: TiCN+Al2O3+TiN Advantages:Specialized carbide substrate for machining stainless...

PVD Coated Carbide:PR1125,Designation:WNMG080404HQ PR1125 ANSI:WNMG431HQ PR1125 Stainless Steel:Light Interruption / 2nd Choice HRSA:Light Interruption / 2nd Choice Corner Radius(in) RE:1/64,Color: Purple Red Coating / Main Component: TiAlN Advantages:Hard TiAlN base PVD coated...

Cermet:TN60 ,Designation:WNMG080404HQ TN60  ANSI:WNMG431HQ TN60  Corner Radius(in) RE:1/64,Color: Gray, Coating / Main Component: TiCN+NbC Advantages:Application: Machining of steel, continuous to interruption HQ:Sharp cutting performance with 3-D rake angle and double projection design...

Cermet:TN620,Designation:WNMG080404HQ TN620 ANSI:WNMG431HQ TN620 Carbon/Alloy Steel:Light Interruption / 1st Choice Corner Radius(in) RE:1/64,Color:Gray Coating / Main Component: TiCN Advantages:High wear resistance and chipping resistance cermet due to three hybrid technology...

CVD Coated Carbide:CA5525,Designation:WNMG080404HS CA5525 ANSI:WNMG431HS CA5525 Corner Radius(in) RE:1/64,Color: Gold, Coating / Main Component: TiCN+Al2O3+TiN Advantages:Application: For general machining of steel, roughing to interruption HS:General purpose chipbreaker.Applicable for copying. TURNING INSERTS...

CVD Coated Carbide:CA6525,Designation:WNMG080404MQ CA6525 ANSI:WNMG431MQ CA6525 Corner Radius(in) RE:1/64,Color: Gold, Coating / Main Component: TiCN+Al2O3+TiN Advantages:Specialized carbide substrate for machining stainless steel with excellent notching resistance and toughness Application: First choice...
