Milling Insert ZCC.CT

Carbide:YC30S,Designation:SPKN1203EDSKR YC30S Turning Milling tool Dimension (mm):L:12.7,ØI.C:12.7,S:3.18,be:1,bs:1.4 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition

CVD Coating:YBC301,Designation:SPKN1203EDSKR YBC301 Turning Milling tool Dimension (mm):L:12.7,ØI.C:12.7,S:3.18,be:1,bs:1.4 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

CVD Coating:YBC301,Designation:SPKN1203EDSKL YBC301 Turning Milling tool Dimension (mm):L:12.7,ØI.C:12.7,S:3.18,be:1,bs:1.4 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

Carbide:YD201,Designation:SPKN1203EDFR YD201 Turning Milling tool Dimension (mm):L:12.7,ØI.C:12.7,S:3.18,be:1,bs:1.4 Workpiece Material:Cast iron:Unfavorable Machining Condition,Non-ferrite material:Unfavorable Machining Condition

Carbide:YD101,Designation:SPKN1203EDFR YD101 Turning Milling tool Dimension (mm):L:12.7,ØI.C:12.7,S:3.18,be:1,bs:1.4 Workpiece Material:Non-ferrite material:Normal Machining Conditio

PVD Coating:YBG205,Designation:WNHU080608PNR-GM YBG205 Turning Shallow hole drilling inserts Dimension (mm):L:7.7,ØIC:12.7,S:5.4,ød:4.4,bs:1.6,r:0.8 Workpiece Material:Steel:Ideal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition

CVD Coating:YBD152,Designation:WNHU080608PNR-GM YBD152 Turning Shallow hole drilling inserts Dimension (mm):L:7.7,ØIC:12.7,S:5.4,ød:4.4,bs:1.6,r:0.8 Workpiece Material:Cast iron:Normal Machining Condition

CVD Coating:YBM253,Designation:WNHU060408PNR-GM YBM253 Turning Shallow hole drilling inserts Dimension (mm):L:5.7,ØIC:9.525,S:4.0,ød:3.5,bs:1.35,r:0.8 Workpiece  Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition

PVD Coating:YBG205,Designation:WNHU060408PNR-GM YBG205 Turning Shallow hole drilling inserts Dimension (mm):L:5.7,ØIC:9.525,S:4.0,ød:3.5,bs:1.35,r:0.8 Workpiece Material:Steel:Ideal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition

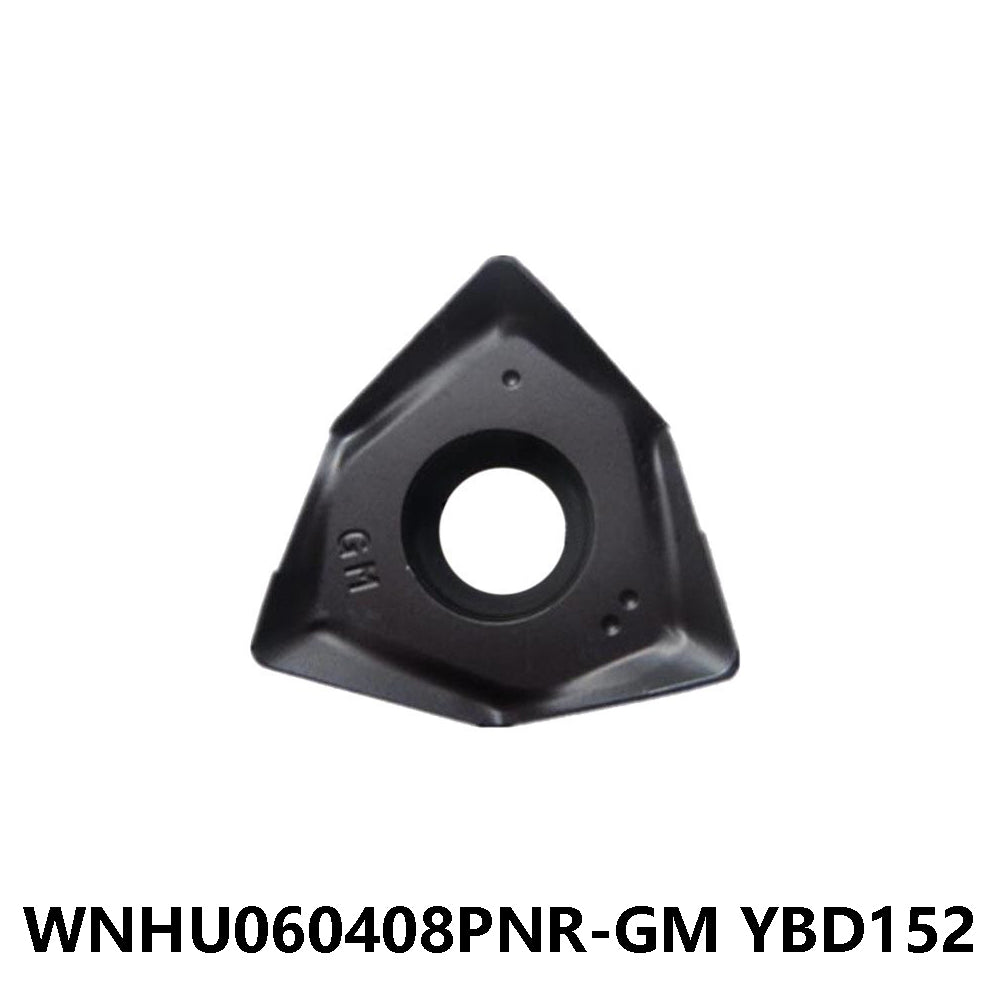

CVD Coating:YBD152,Designation:WNHU060408PNR-GM YBD152 Turning Shallow hole drilling inserts Dimension (mm):L:5.7,ØIC:9.525,S:4.0,ød:3.5,bs:1.35,r:0.8 Workpiece Material:Cast iron:Normal Machining Condition

PVD Coating:YBG302,Designation:XPHT40R2007-GM YBG302 Turning Milling tools Dimension (mm):R:20,ød:6.7,S:7.94,α:9°,L:40 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition

PVD Coating:YBG302,Designation:XSEQ12T3 YBG302 Turning Milling tools Dimension (mm):L:12.7,ØI.C:12.7,S:3.5,ød:5.0 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition

PVD Coating:YBG302,Designation:XSEQ1202 YBG302 Turning Milling tools Dimension (mm):L:12.7,ØI.C:12.7,S:2.3,ød:5.0 Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Unfavorable Machining Condition

PVD Coating:YBG302,Designation:XEEC1206 YBG302 Turning knife,cnc cutters,Lathe cutter,Cutting tool,metal cutter

CVD Coating:YBC302,Designation:XPHT40R2007-GM YBG302 Dimension (mm):R:20,ød:6.7 S:7.94,α:9°,L:40,Applicable cutting tool:Φ40 Workpiece Material:Steel:Unfavorable Machining Condition,Stainless Steel:Unfavorable Machining Condition

PVD Coating:YBG205,Designation:WPGT090725ZSR YBG205 Dimension (mm):ØI.C:15,r:2.5,S:7,ød:5.5,α:11° Workpiece Material:Steel:Normal Machining Condition,Stainless Steel:Normal Machining Condition,Heat-resistant steel:Normal Machining Condition,
