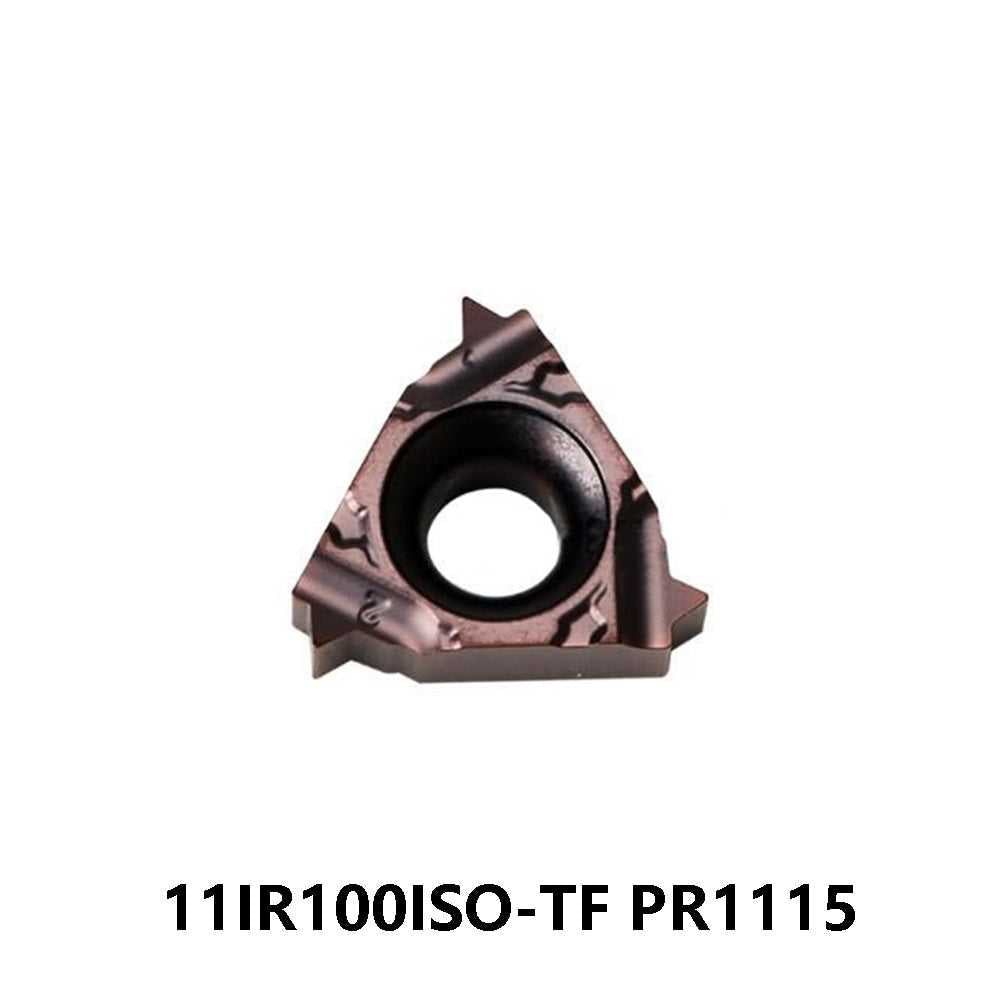

Pressed Thread Blade 11IR100ISO-TF PR1115 - High-Performance CNC Tool
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Grade Name:PR1115 , Designation: 11IR100ISOTF PR1115 ,TF Cutting Edge
Applicable Thread (mm): 1.0 ,Dimensions(in) RE:0.07, PDX:0.80 ,Angle PNA:60°
Color: Purple red , Coating / Main Component: iAlN , Coating Layer: Thin Coating ,
Density: 14.7 , Hardness of Substrate (HV) : 1,700 , (GPa): 16.7 ,
Fracture Toughness (MPam1/2): 11.0 , Flexural Toughness (MPa): 3,000
Introducing the Pressed Thread Blade 11IR100ISO-TF PR1115, a high-performance CNC tool designed for exceptional machining of steel and stainless steel. With a pitch of 1.0mm and a side length of 11mm, this blade offers superior oxidation resistance, balanced wear resistance, and toughness, making it perfect for grooving, cut-off, and threading applications.
Key Features:
- Superior Oxidation Resistance: PR1115 grade ensures long-lasting durability and performance.
- Well-Balanced Wear Resistance and Toughness: Designed to withstand rigorous machining processes.
- Precision Engineering: Achieves accurate internal threading with a 1.0mm pitch.
- Optimal Size: Features an 11mm side length, ideal for detailed machining tasks.
- Versatile Application: Suitable for machining steel and stainless steel, including grooving, cut-off, and threading.
Specifications:
- Model: 11IR100ISO-TF PR1115
- Material: PR1115 Grade
- Thread Type: ISO-TF Internal Thread
- Pitch: 1.0mm
- Side Length: 11mm
- Application: Machining of Steel and Stainless Steel
Upgrade your CNC machining capabilities with the Pressed Thread Blade 11IR100ISO-TF PR1115. Engineered for high performance and durability, this tool ensures precise and efficient machining for your steel and stainless steel projects.
Pressed Thread Blade 11IR100ISO-TF PR1115
-
Features of Pressed Thread Blade 11IR100ISO-TF PR1115
-
Specifications of 11IR100ISO-TF PR1115
-
Benefits of Using Our Pressed Thread Blade for CNC Machining
-
Superior Oxidation Resistance with PR1115 Grade
-
Well-Balanced Wear Resistance and Toughness
-
Precision Engineering for Accurate Threading
-
Optimal 11mm Side Length for Detailed Machining
-
Versatile Application for Steel and Stainless Steel
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
