11mm T-Slot Milling Cutter for Aluminum carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND 11mm T-Slot Milling Cutter for Aluminum
Brand: BEYOND
Model: T-Slot Cutter d1 = 11mm
Application: Aluminum, Copper, Non-Ferrous Metals
Product Overview
The BEYOND 11mm T-Slot Milling Cutter for Aluminum is a high-performance carbide tool specifically designed for cutting precise T-slots and grooves in aluminum and other non-ferrous materials. Featuring ultra-sharp cutting edges and a polished flute design, it ensures efficient chip evacuation, excellent dimensional accuracy, and a clean surface finish even under high-speed CNC milling conditions.
Features & Benefits
- Optimized for Aluminum: Sharp cutting edges and mirror-polished surface reduce friction and heat buildup.
- High Precision: Guarantees dimensional accuracy for tight-tolerance T-slot grooves.
- Durable Micro-Grain Carbide: Ensures exceptional wear resistance and long service life.
- Excellent Chip Evacuation: Smooth polished flutes remove chips efficiently to prevent clogging.
- Universal Compatibility: Suitable for CNC machining centers and conventional milling machines.

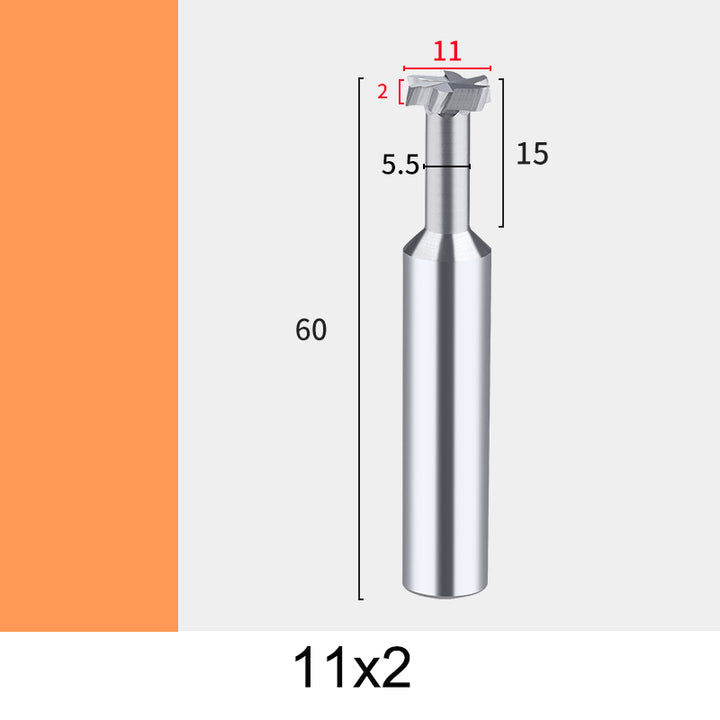

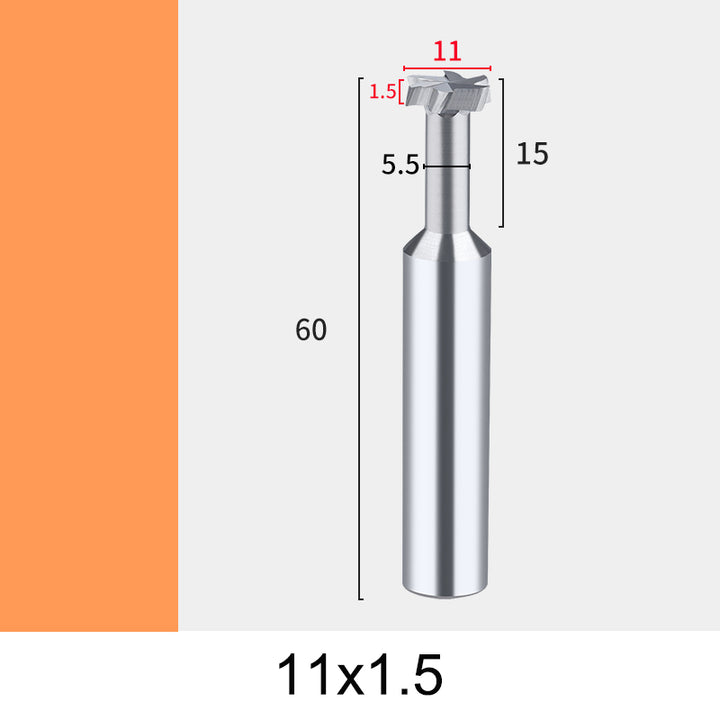

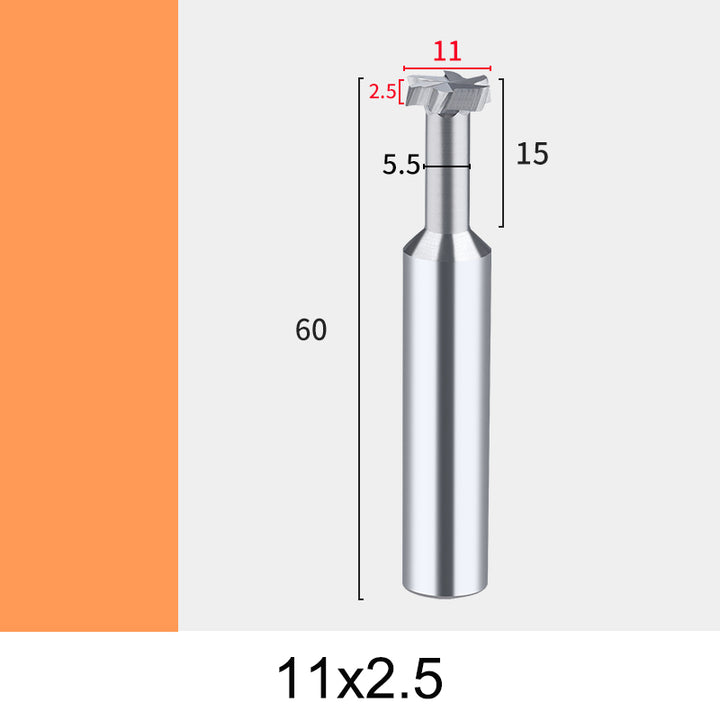

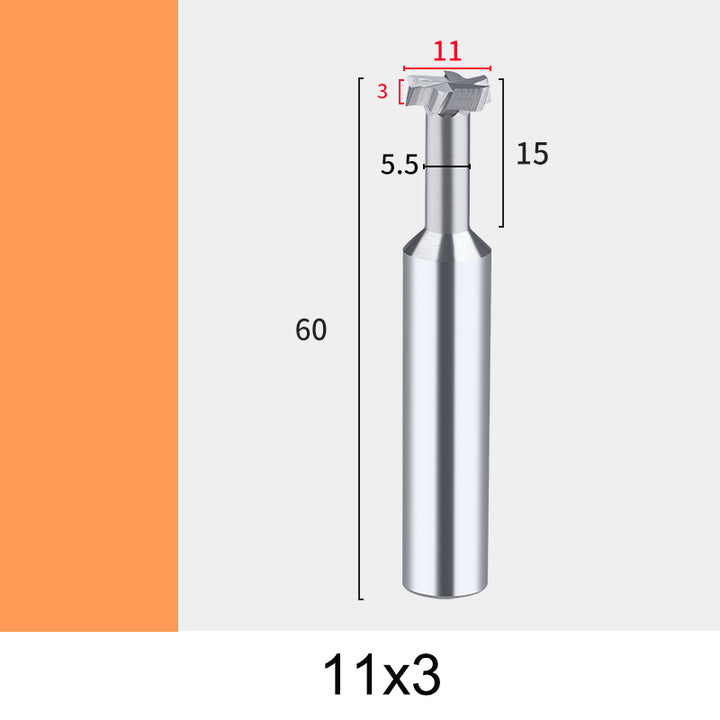

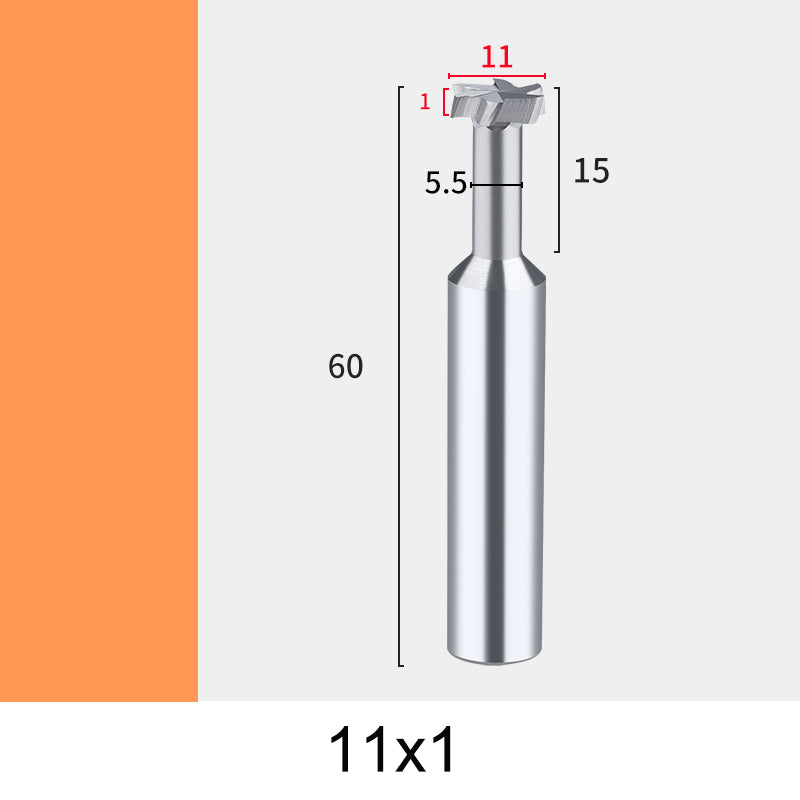

Technical Specifications
| Brand | BEYOND |
| Tool Type | T-Slot Milling Cutter |
| Cutting Diameter (d1) | 11mm |
| Material | Micro-grain Solid Carbide |
| Coating | Polished / Uncoated for Aluminum |
| Shank Diameter | Optional Standard Sizes |
| Workpiece Material | Aluminum, Brass, Copper, Plastic |
| Machine Type | CNC Milling Machine, Machining Center |
Recommended Applications
- Machining aluminum T-slots for machine tables and fixtures
- Slot and groove machining in non-ferrous metal components
- Ideal for high-speed CNC aluminum production lines
Why Choose BEYOND T-Slot Cutters?
BEYOND tools are engineered for precision and efficiency. Every T-slot cutter is manufactured under rigorous quality standards to deliver consistent cutting performance, exceptional durability, and a superior finish for aluminum machining.
Keywords for SEO
11mm T-slot milling cutter, aluminum slot cutter, carbide T-slot tool, BEYOND aluminum milling cutter, CNC T-slot milling tool, precision aluminum groove cutter, carbide slotting cutter, BEYOND carbide milling tools, aluminum machining cutter, high-speed CNC cutting tools.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
