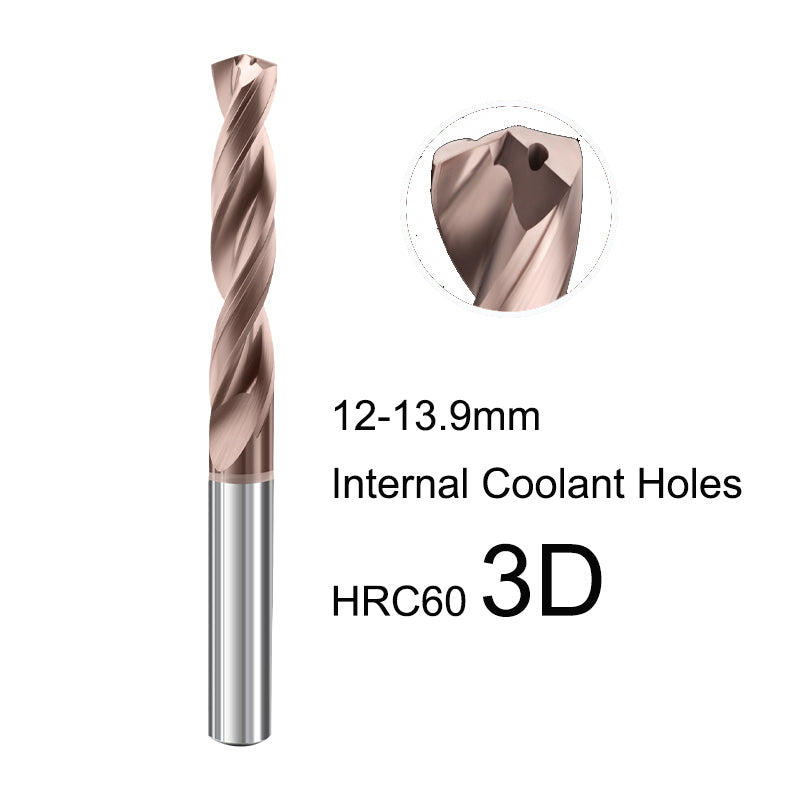

BEYOND HRC60 3D Internal Coolant Solid Carbide Drill Bit 12.0–13.9mm
The BEYOND HRC60 3D solid carbide twist drill is designed for high-speed precision drilling with internal coolant holes for optimal heat removal and extended tool life. It features a 140° large point angle for excellent centering performance, reduced cutting resistance, and smoother chip evacuation. Ideal for CNC machining centers and high-precision metalworking.
🔧 Product Features
- Material: Premium HRC60-grade tungsten carbide for superior hardness and wear resistance.
- Design: 3×D flute length with internal coolant channels for effective cooling and chip removal.
- Point Angle: 140°—ensures stable drilling and precision hole entry.
- Applications: Alloy steel, mold steel, hardened steel (≤HRC60), stainless steel, cast iron, and titanium alloy.
- Coating: Advanced bronze PVD coating for longer service life and improved cutting stability.
📏 Available Sizes (mm)
| Diameter (mm) | Flute Length (mm) | Shank Diameter (mm) | Total Length (mm) |
|---|---|---|---|
| 12.0 | 55 | 12 | 102 |
| 12.1 | 60 | 14 | 107 |
| 12.2 | 60 | 14 | 107 |
| 12.3 | 60 | 14 | 107 |
| 12.4 | 60 | 14 | 107 |
| 12.5 | 60 | 14 | 107 |
| 12.6 | 60 | 14 | 107 |
| 12.7 | 60 | 14 | 107 |
| 12.8 | 60 | 14 | 107 |
| 12.9 | 60 | 14 | 107 |
| 13.0 | 60 | 14 | 107 |
| 13.1 | 60 | 14 | 107 |
| 13.2 | 60 | 14 | 107 |
| 13.3 | 60 | 14 | 107 |
| 13.4 | 60 | 14 | 107 |
| 13.5 | 60 | 14 | 107 |
| 13.6 | 60 | 14 | 107 |
| 13.7 | 60 | 14 | 107 |
| 13.8 | 60 | 14 | 107 |
| 13.9 | 60 | 14 | 107 |
💎 Advantages
- High hardness up to HRC60 for long tool life.
- Optimized coolant hole design for efficient chip removal.
- Stable drilling performance in deep-hole machining.
- Precision ground edges and uniform diameter tolerance.
🧰 Typical Applications
Perfect for precision drilling in:
- Hardened steel / Tool steel
- Alloy steel and cast iron
- Stainless steel and titanium alloys
- Automotive, aerospace, and mold manufacturing industries
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
