14mm Coated 3-Flute Chamfer Milling Cutter 60° 90° 120° carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND 14mm Coated 3-Flute Chamfer Milling Cutter (60° / 90° / 120°)
The BEYOND 14mm coated chamfer milling cutter is engineered for precise chamfering and deburring in modern CNC machining. Featuring a 3-flute design and advanced coating, this cutter delivers excellent surface finish, heat resistance, and tool longevity, even when working with hard-to-machine materials.
Product Features:
- Diameter: 14mm
- Flutes: 3

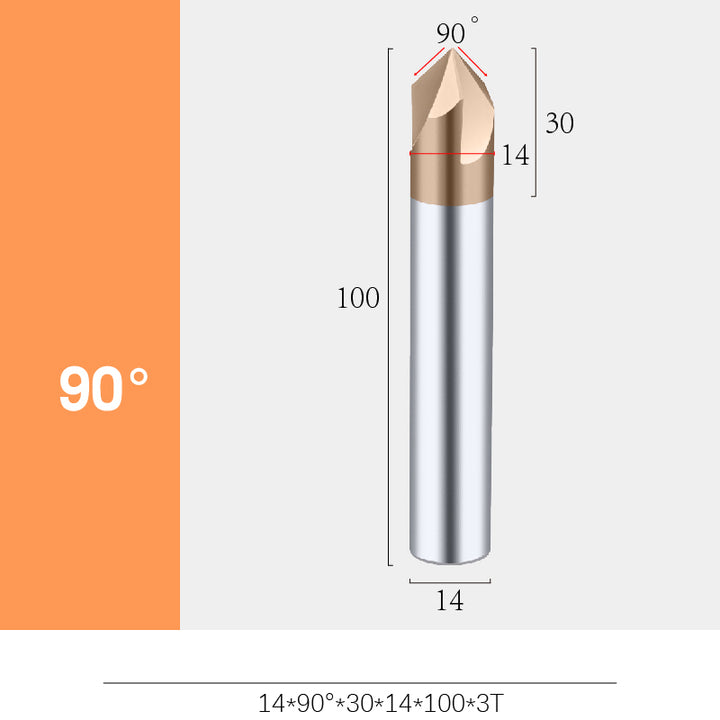

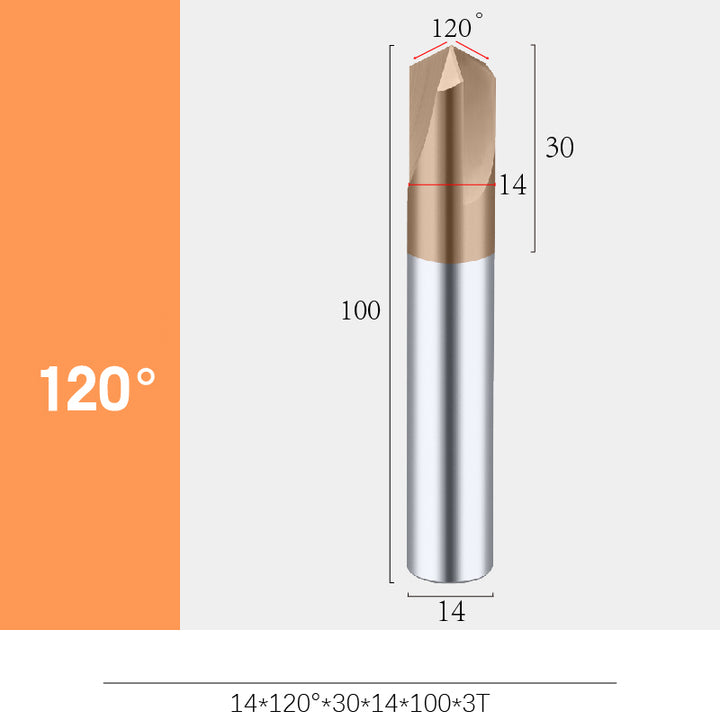

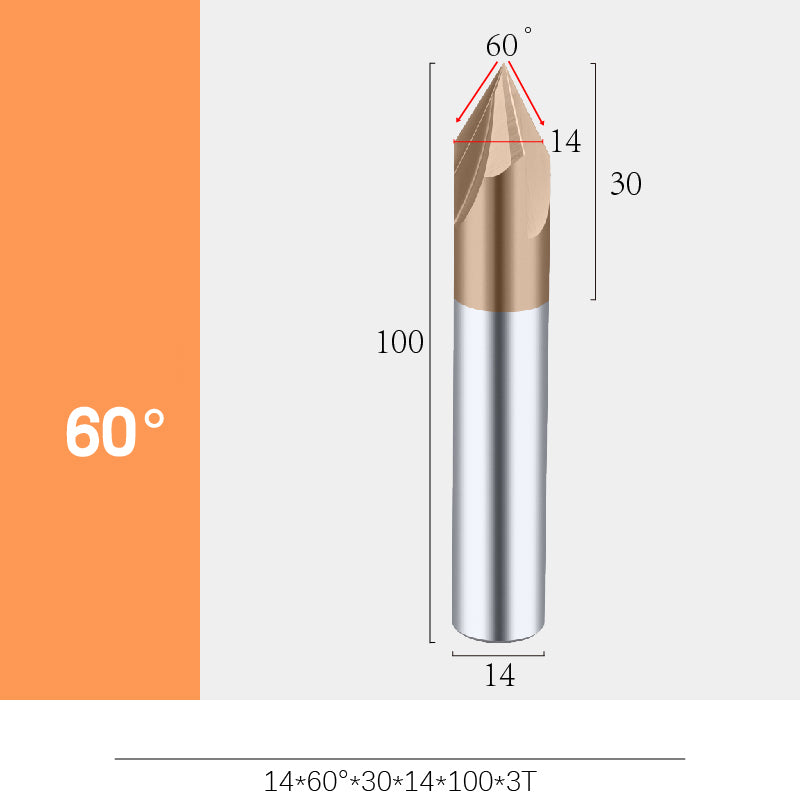

- Available Angles: 60°, 90°, 120°
- Material: High-quality carbide substrate
- Coating: Heat-resistant coating for longer tool life
- Applications: Chamfering, beveling, deburring, and edge finishing
Suitable for Machining Materials:
- Stainless Steel
- Mold Steel
- Ductile Cast Iron
- Alloy Steel
- Tempered Steel
- Titanium Alloy
Performance Advantages:
- Superior coating reduces heat and prevents chipping during high-speed cutting
- 3-flute geometry ensures smooth chip evacuation and consistent cutting performance
- Accurate angle control for perfect edge finishing and chamfering
- Compatible with CNC milling machines, machining centers, and automatic lathes
Applications:
Ideal for metalworking, die and mold manufacturing, automotive, and aerospace industries, the BEYOND 14mm chamfer milling cutter ensures precision edge shaping and excellent productivity in demanding machining environments.
Keywords for SEO:
14mm chamfer milling cutter, coated 3 flute chamfer tool, CNC chamfer end mill, carbide chamfering cutter, 60 degree chamfer cutter, 90 degree chamfer end mill, 120 degree chamfering tool, BEYOND carbide chamfer tool, CNC milling cutter for stainless steel, titanium alloy chamfer cutter, metal edge deburring tool.
Why Choose BEYOND Cutting Tools:
BEYOND focuses on delivering professional-grade carbide cutting tools for CNC machining. Our chamfer milling cutters are designed for durability, accuracy, and high efficiency, ensuring smooth performance and extended lifespan across all materials and applications.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
