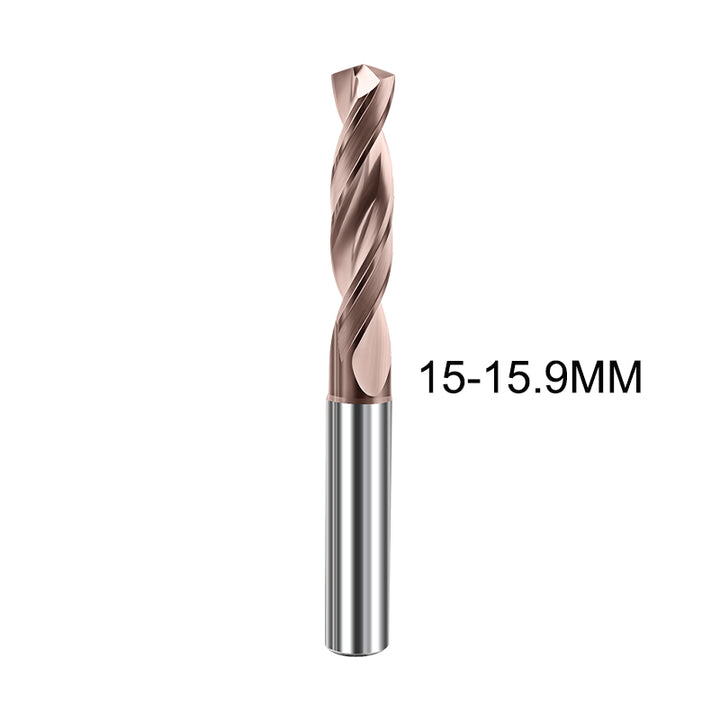

15.0-15.9mm HRC60 3D Coated Carbide Drill Bit carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND HRC60 3D Coated Carbide Drill Bits (15.0-15.9mm) - Heavy-Duty Excellence for Industrial Applications
Experience superior drilling performance with the BEYOND 15.0-15.9mm series, engineered for the most demanding industrial applications. Featuring our advanced 140° point angle technology and HRC60 ultra-hard tungsten carbide core, these heavy-duty drills deliver exceptional results in stainless steel, high-temperature alloys, and pre-hardened steels. The optimized geometry ensures minimal thrust forces, superior chip control, and maximum tool life in continuous production environments.
Key Features & Benefits:
- Advanced 140° Point Angle Technology: Reduces axial forces by up to 80% compared to conventional drills, enabling higher penetration rates and eliminating work hardening in difficult-to-machine materials.
- HRC60 Ultra-Hard Tungsten Carbide Substrate: Exceptional wear resistance and thermal stability for extended tool life in demanding production environments, significantly reducing machining costs per hole.
- Premium 3D Multi-Layer Nano-Coating: Superior thermal and oxidation resistance reduces friction and prevents material adhesion, ensuring consistent performance throughout extended production runs.
- Reinforced Core & Optimized 3xD Flute Design: Enhanced web progression and specialized flute geometry provide maximum rigidity and efficient chip evacuation in deep-hole applications up to 48mm depth.
- Industrial-Grade Precision Manufacturing: Each drill undergoes rigorous quality control to ensure perfect concentricity, geometry, and performance consistency for reliable operation.
Product Specifications:
| Brand | BEYOND |
| Material | Solid Tungsten Carbide (HRC60 Hardness) with 3D Nano-Coating |
| Point Angle | 140° (Optimized for Stainless Steel & Tough Alloys) |
| Flute Length | 3 x Diameter (3xD) |
| Shank Type | Straight Shank (Fixed Shank) |
| Diameter Range | 15.0mm, 15.1mm, 15.2mm, 15.3mm, 15.4mm, 15.5mm, 15.6mm, 15.7mm, 15.8mm, 15.9mm |
Technical Cutting Data Reference:
Optimized for heavy-duty production drilling in stainless steel, high-temperature alloys, and hardened materials.
| Drill Diameter (mm) | Recommended Speed (RPM) | Feed Rate (mm/rev) | Flute Length |
|---|---|---|---|
| 15.0 - 15.2 | 950 - 1,250 | 0.15 - 0.22 | 45.0 - 45.6mm |
| 15.3 - 15.5 | 850 - 1,150 | 0.16 - 0.23 | 45.9 - 46.5mm |
| 15.6 - 15.9 | 750 - 1,050 | 0.17 - 0.25 | 46.8 - 47.7mm |
Industrial Application Tip: For optimal performance in 15mm diameter applications, use through-tool coolant at 15-25 bar pressure. The 140° point angle allows for aggressive feed rates while maintaining excellent hole quality and surface finish. Ensure maximum machine rigidity and use precision collets for extended tool life and consistent performance.
Ideal For Drilling:
- Stainless Steels: 304, 316, 316L, 317, 321, 347, 410, 420, 440C, 17-4PH, 15-5PH
- High-Temperature Alloys: Inconel 718, 625, 725, 738; Hastelloy C276, X, C22; Waspaloy, Rene 41, Haynes 282
- Titanium Alloys: Grade 5 (6AL-4V), Grade 2, Grade 9, Grade 23, Grade 29, Beta-Ti, CP-Ti
- Tool & Die Steels: D2, H13, A2, S7, M2, O1, T1, M42 (up to 60 HRC)
- Pre-hardened & Alloy Steels: 4140, 4340, 4340M, P20, H13, NAK80, 300M (30-50 HRC)
- Duplex & Super Duplex Stainless: 2205, 2507, Zeron 100, Ferralium 255, LDX 2101
Recommended For Use In:
- Heavy-Duty CNC Machining Centers & Vertical Mills
- Automated Manufacturing Cells & Robotic Drilling Systems
- Aerospace Structural Components & Engine Parts
- Oil & Gas Pressure Vessels, Valves & Pipeline Components
- Medical Implants & Surgical Instrument Manufacturing
- Automotive Engine Blocks, Transmission Cases & Chassis
- Heavy Equipment & Industrial Machinery Components
- Power Generation Turbines & Nuclear Components
- Defense & Military Equipment Manufacturing
- Shipbuilding & Marine Equipment Manufacturing
Why BEYOND 15mm Series is Your Ultimate Industrial Solution:
The BEYOND 15.0-15.9mm series represents the pinnacle of industrial drilling technology, designed for manufacturers who demand uncompromising performance in the most challenging applications. Our proprietary 140° point angle geometry, combined with HRC60 substrate and advanced 3D coating, delivers unprecedented performance in materials that defeat conventional drills. Each drill is manufactured to exacting standards with comprehensive quality control to ensure it meets the rigorous demands of modern heavy-industrial production environments.
BEYOND Tools – Engineering Excellence for the Most Demanding Applications.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
