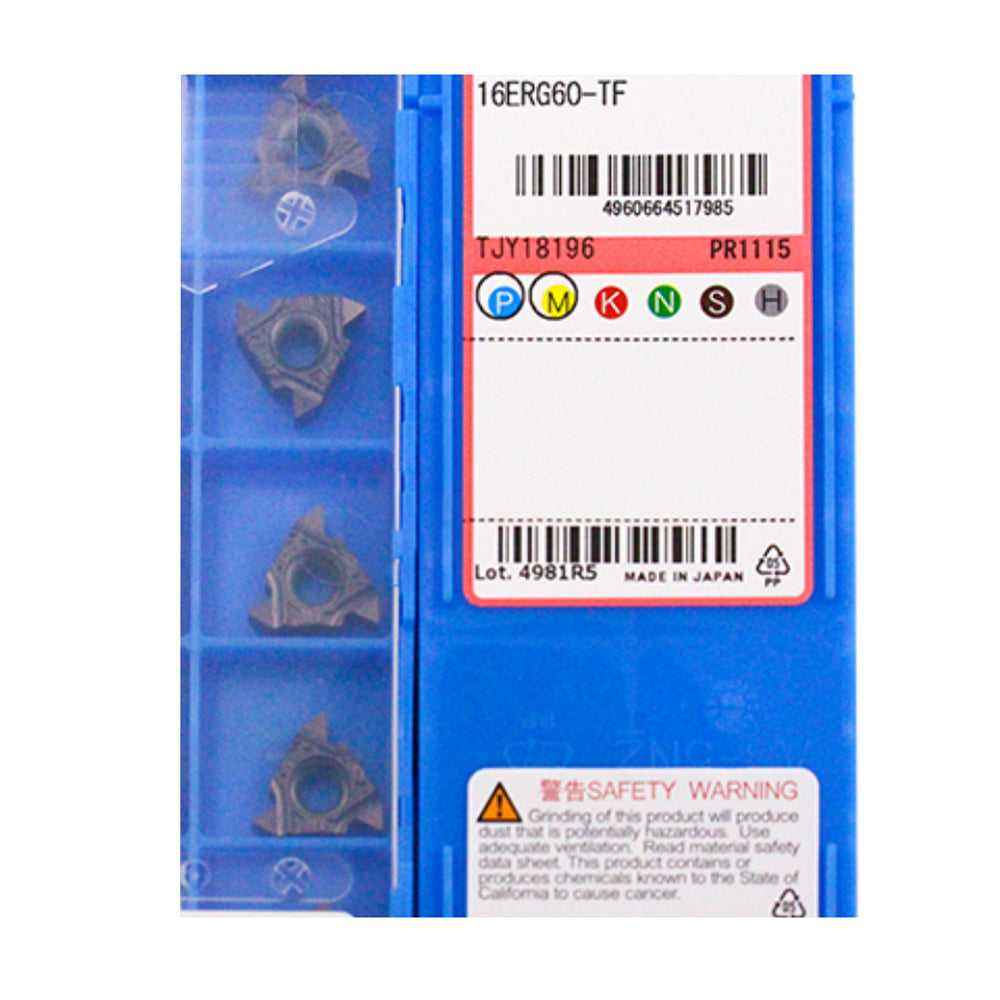

16ERG60-TF PR1115 (10pcs) External Thread Insert | Metric (M) & Unified (UN), 60° Partial Profile
Free shipping on all orders.
Check compatibility: Confirm the model and dimensions before ordering.
Need help choosing? Contact us before ordering.
💰 Bulk savings 2-9 pcs · 6% OFF | 10+ pcs · 12% OFF
Product Description
Product Name: 16ERG60-TF PR1115 (10pcs)
Type: External Thread Insert
Thread Type: Metric (M) & Unified (UN), 60° Partial Profile
Grade: PR1115
Designation: 16ERG60-TF PR1115
Cutting Edge: TF Cutting Edge
Applicable Thread: nm: 1.753.00, TPI: 148
Dimensions (in): RE: 0.009, PDX: 0.063, Angle PNA: 60°
Color: Purple red
Coating / Main Component: iAlN
Coating Layer: Thin Coating
Density: 14.7
Hardness of Substrate (HV): 1,700 (GPa): 16.7
Fracture Toughness (MPam1/2): 11.0
Flexural Toughness (MPa): 3,000
PR1115 Advantages:
- Excellent oxidation resistance
- Balanced wear resistance and toughness
Applications:
- Machining steel and stainless steel for grooving, cutting, and threading
Meta Description
Shop for 16ERG60-TF PR1115 external thread inserts designed for Metric and Unified threads. High-performance PR1115 grade with excellent oxidation resistance, balanced wear resistance, and toughness. Ideal for machining steel and stainless steel.
H1, H2, H3 Tags
H1
16ERG60-TF PR1115 (10pcs) External Thread Insert
H2
Features of 16ERG60-TF PR1115
H3
-
High-Quality PR1115 Grade
-
Applicable Threads: nm 1.75
3.00, TPI 148 -
Excellent Oxidation Resistance
-
Balanced Wear Resistance and Toughness
-
Machining Applications for Steel and Stainless Steel
Need Help With BEYOND Inserts?
Looking for a BEYOND equivalent, alternative grade, or sample catalog? Our CNC specialists have helped 50+ manufacturers in aerospace, automotive, and medical machining source the right tooling at 30–50% lower cost than OEM prices.
This BEYOND insert is in stock. 24-hour quote response. ISO 9001 certified. Ships from Hangzhou in 3–7 days.
Technical FAQ & Buying Guide
When choosing CNC cutting tools, check the full model code, dimensions, grade and selected variant before ordering. Do not rely on the product image alone.
For carbide inserts, tool holders, drills and end mills, compare the mounting dimensions, connection type and manufacturer's specifications with your holder or machine. If you are unsure, share your existing part number and machining application with us before ordering.
Check the product listing for the selling unit, pack quantity and included components. If it is unclear whether the price is per piece or per pack, or whether a tool body and inserts are sold separately, contact us before purchasing.
Select cutting speed, feed rate and depth of cut using the relevant manufacturer's recommendations for your tool model, workpiece material, machine conditions and coolant method. The same settings are not suitable for every product or application.
Our automatic quantity discount is 6% off for 2–9 items and 12% off for 10 or more items, based on the total product quantity in the cart. Other offers may not combine with this discount; check the applicable offer conditions.
According to our shipping policy, orders are typically processed and shipped within 1–3 business days after confirmation. Delivery generally takes 5–20 business days, depending on your destination and shipping method. Customs clearance or unforeseen delays may affect delivery times. A tracking number is sent by email after shipment.
