BEYOND 16mm Coated 3-Flute Chamfer Milling Cutter (60° / 90° / 120°)
The BEYOND 16mm coated chamfer milling cutter is a high-performance CNC tool designed for precise chamfering, beveling, and deburring across a wide range of metals. Featuring a 3-flute carbide structure with advanced coating technology, it ensures excellent wear resistance, stability, and a smooth surface finish even in heavy-duty machining.
Product Features:
- Diameter: 16mm
- Flutes: 3

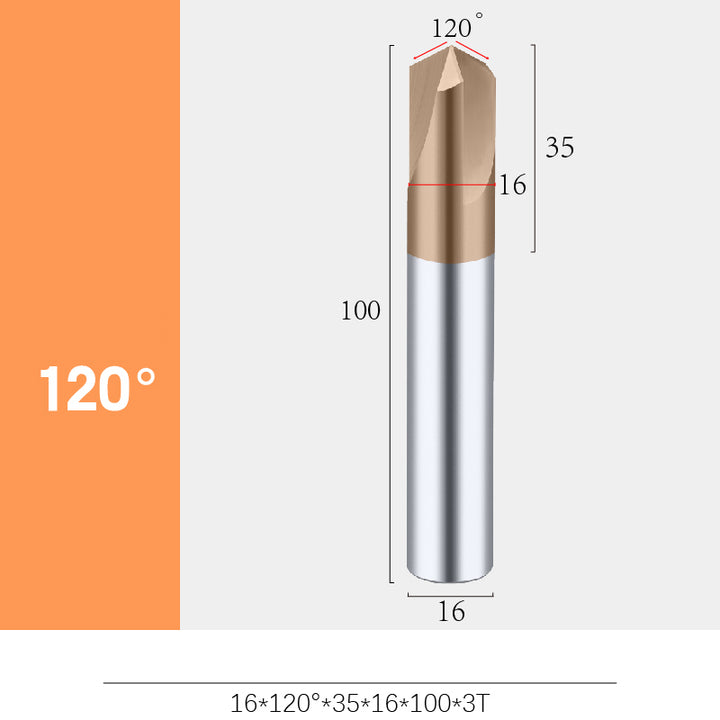

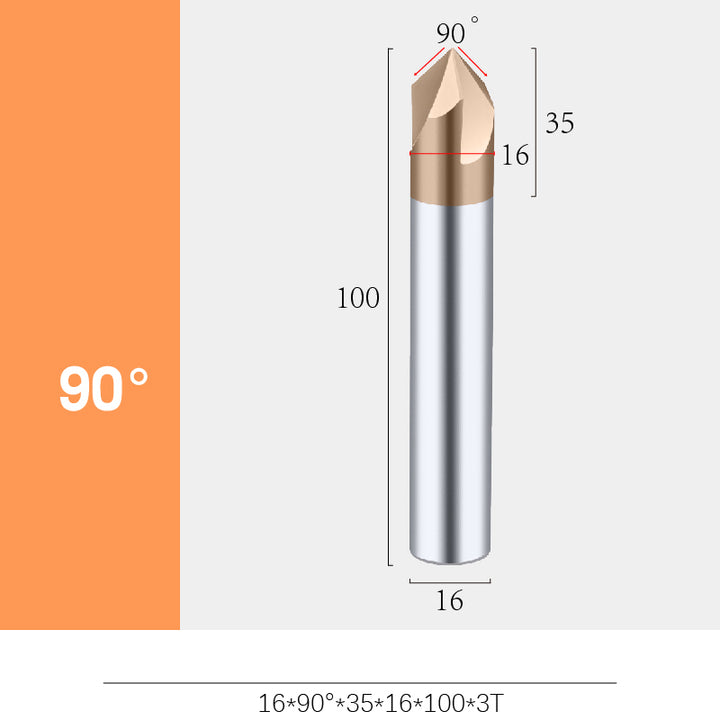

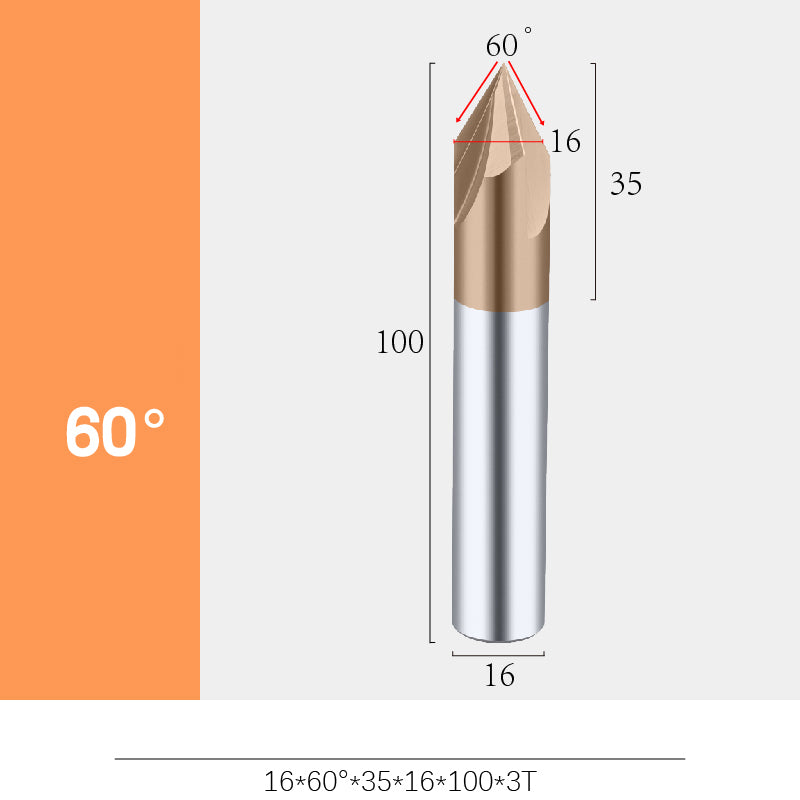

- Available Angles: 60°, 90°, 120°
- Material: Premium carbide substrate
- Coating: High-temperature coating for longer tool life
- Applications: Chamfering, edge finishing, beveling, deburring
Material Compatibility:
- Stainless Steel
- Mold Steel
- Ductile Cast Iron
- Alloy Steel
- Tempered Steel
- Titanium Alloy
Performance Advantages:
- High-hardness carbide ensures stability under high-speed machining
- Coating minimizes friction and heat buildup during cutting
- 3-flute design provides efficient chip evacuation and smooth operation
- Accurate angle design guarantees perfect chamfer finish
- Ideal for CNC machining centers and automatic milling machines
Applications:
This 16mm chamfer end mill is widely used in die and mold manufacturing, mechanical part production, aerospace components, and metal fabrication. It provides high precision and superior performance for professional CNC cutting.
Recommended Keywords:
16mm chamfer milling cutter, CNC chamfer end mill, coated carbide chamfer tool, 3 flute chamfer cutter, 60 degree chamfer cutter, 90 degree chamfer milling cutter, 120 degree chamfer end mill, BEYOND carbide chamfering tool, CNC metal beveling cutter, stainless steel chamfer tool, titanium alloy milling cutter, precision edge deburring tool.
Why Choose BEYOND:
BEYOND specializes in high-precision CNC cutting tools with excellent durability and cost performance. Our coated chamfer milling cutters deliver stable cutting performance, long service life, and outstanding quality for industrial metalworking applications.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
