18mm Coated 3-Flute Chamfer Milling Cutter 60° 90° 120° carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND 18mm Coated 3-Flute Chamfer Milling Cutter (60° / 90° / 120°)
The BEYOND 18mm coated chamfer milling cutter is engineered for high-precision chamfering and deburring across various metals. Featuring a 3-flute carbide structure with an advanced wear-resistant coating, it provides exceptional performance in high-speed CNC machining for clean, accurate edge finishing.
Product Features:
- Diameter: 18mm
- Flutes: 3

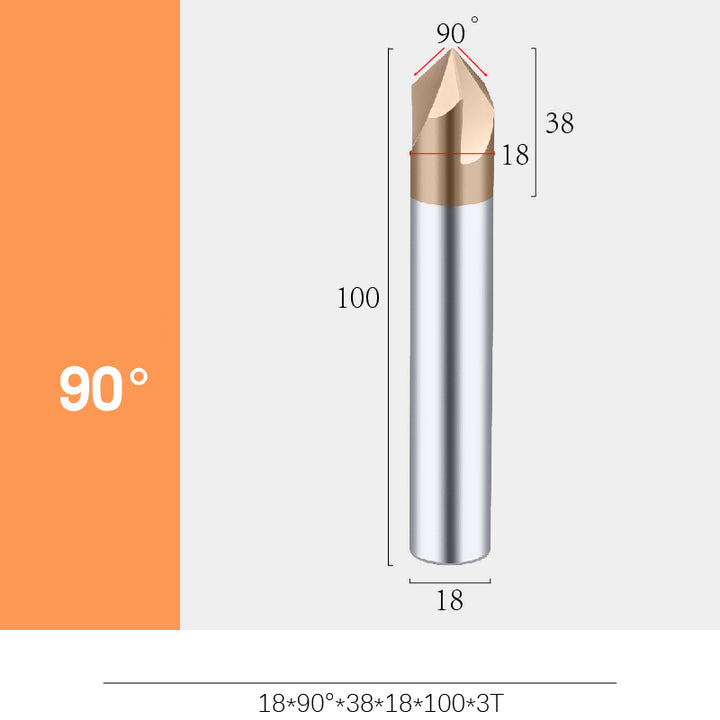

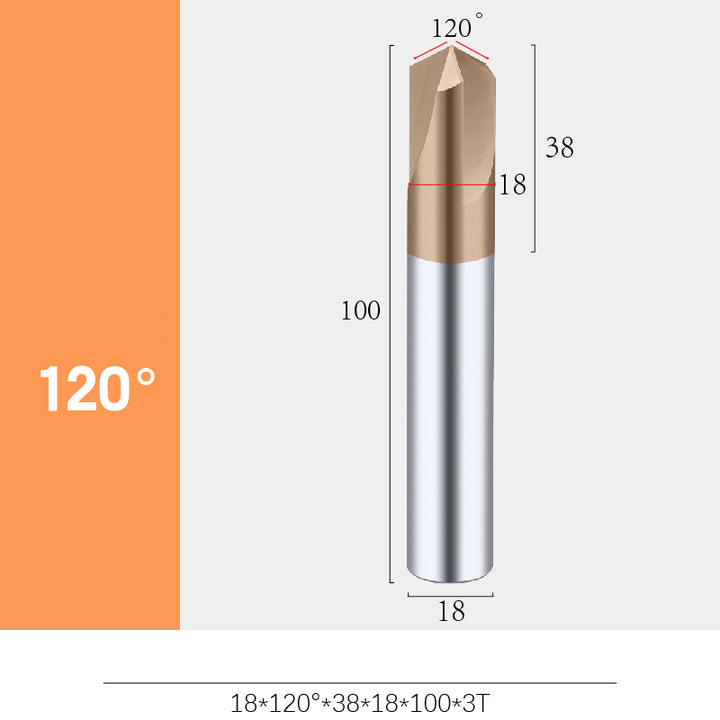

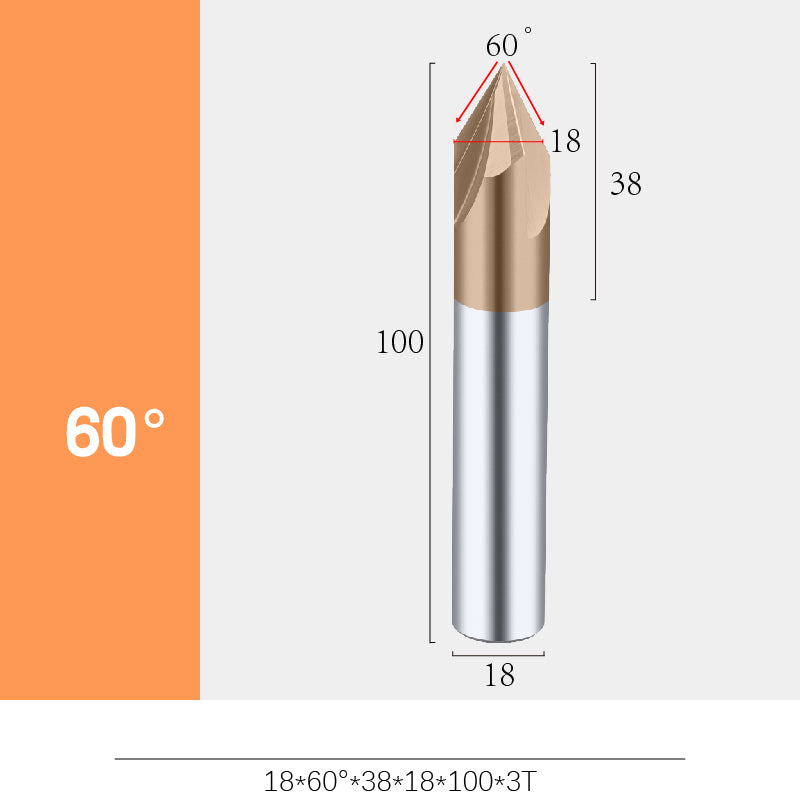

- Available Angles: 60°, 90°, 120°
- Material: Premium carbide substrate
- Coating: High-temperature and wear-resistant coating
- Application: Chamfering, edge finishing, beveling, deburring
Suitable for Machining Materials:
- Stainless Steel
- Mold Steel
- Ductile Cast Iron
- Alloy Steel
- Tempered Steel
- Titanium Alloy
Performance Advantages:
- High hardness carbide ensures durability under heavy load cutting
- Coated surface reduces friction and improves heat resistance
- 3-flute design enables stable chip evacuation and smooth cutting
- Accurate angle control for consistent chamfer geometry
- Excellent surface finish and long tool life in CNC machining
Applications:
This 18mm CNC chamfer end mill is ideal for use in precision metalworking, mold manufacturing, aerospace, automotive, and general machining industries. It offers exceptional cutting stability and a smooth chamfer finish even in high-speed CNC operations.
SEO Keywords & Long-Tail Phrases:
18mm chamfer milling cutter, coated carbide chamfer tool, CNC chamfer end mill, 3 flute chamfer cutter, 60 degree chamfer milling cutter, 90 degree chamfer end mill, 120 degree chamfer tool, BEYOND carbide chamfering cutter, titanium alloy chamfer cutter, stainless steel chamfer milling tool, metal edge deburring cutter, precision beveling tool for CNC.
Why Choose BEYOND Tools:
BEYOND provides high-performance carbide cutting tools trusted by machinists worldwide. Our chamfer milling cutters deliver consistent quality, sharp cutting edges, and extended tool life — the ideal choice for CNC professionals seeking precision and reliability.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
