2mm Aluminum T-Slot Milling Cutter carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
2mm Aluminum T-Slot Milling Cutter
The 2mm Aluminum T-Slot Milling Cutter is a high-precision carbide slotting tool designed for machining aluminum alloys and non-ferrous materials. With a 55° cutting angle and sharp edge geometry, it delivers excellent surface finish, stable performance, and long tool life in high-speed CNC operations.
Product Information
- Brand: XET
- Type: 55° T-Slot End Mill Cutter
- Material: Solid Carbide
- Hardness: HRC ≤ 55°
- Coating: DLC / Uncoated for Aluminum
- Application: Aluminum Alloy, Stainless Steel, Alloy Steel, Cast Iron, Mold Steel
- Machine: CNC Machining Center, Engraving Machine, High-Speed Milling Machine
Key Features
- Optimized 2mm cutting diameter for precise slotting in aluminum and alloy materials.
- Solid carbide body ensures maximum rigidity and dimensional stability.
- 55° edge design provides smooth cutting and excellent surface finish.
- Ideal for engraving, slotting, and pocket milling applications.
- High wear resistance for long service life and consistent performance.
Technical Specifications

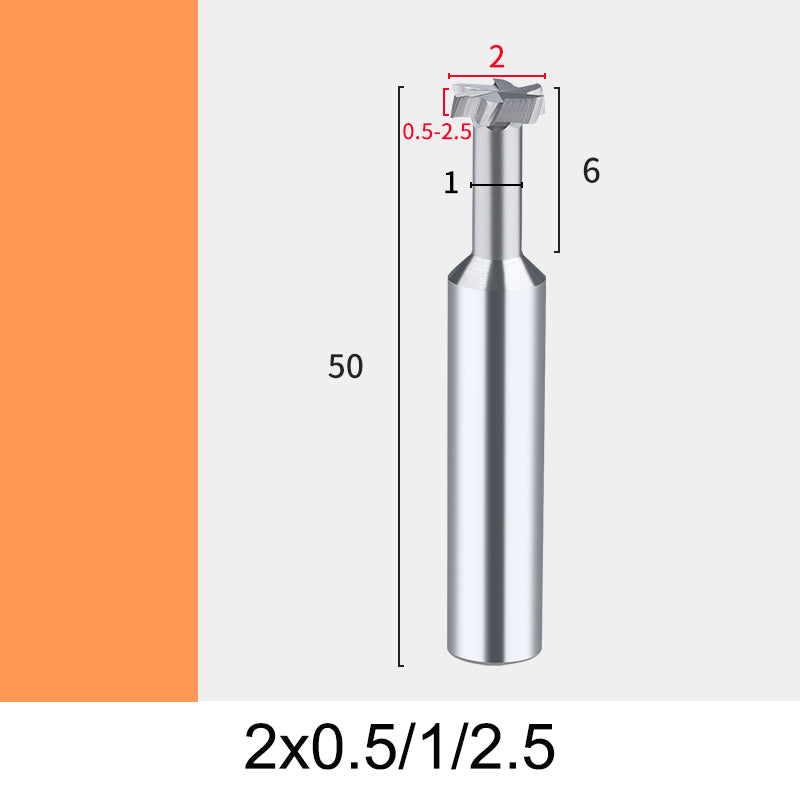

| Cutting Diameter (d1) | Thickness (L1) | Shank Diameter (d2) | Cutting Length (L2) | Overall Length (L) | Flutes |
|---|---|---|---|---|---|
| 2 mm | 0.5 / 1 / 2.5 | 1 mm | 6 mm | 50 mm | 4 |
Applications
This 2mm aluminum T-slot milling cutter is suitable for machining:
- Aluminum alloy parts
- Stainless steel components
- Tool steel and cast iron molds
- Precision engraving and CNC slotting operations
Advantages
- Excellent chip evacuation and low cutting resistance.
- High-speed and stable cutting performance.
- Accurate slot width control with minimal burr formation.
- Ideal for CNC machining centers and engraving machines.
Keywords
2mm aluminum T-slot milling cutter, 2mm carbide slot end mill, CNC T-slot cutter for aluminum, 55° T-slot milling cutter, 2mm solid carbide end mill for aluminum, precision slot cutter CNC tool
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
