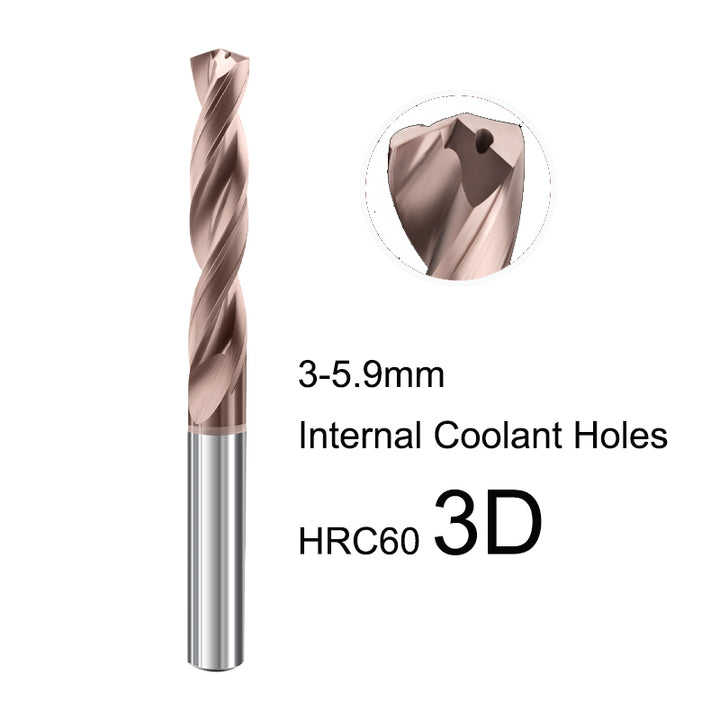

BEYOND 3-5.9mm 3xD Coolant Through Carbide Drill Bits
Precision 3xD Coolant Through Drills for Demanding Applications
BEYOND 3-5.9mm 3xD coolant through carbide drill bits are engineered for optimal performance in deep hole drilling applications. The 3x diameter length provides the perfect balance between rigidity and reach, making these drills ideal for a wide range of industrial machining operations.
Featuring advanced internal coolant technology, these drills efficiently deliver coolant to the cutting edge, significantly reducing heat buildup and ensuring effective chip evacuation. The premium micro-grain carbide construction combined with the optimized 140° point angle delivers exceptional accuracy and tool life in materials up to HRC60.
Key Features & Benefits
3xD Optimal Length
3x diameter length provides ideal balance for deep hole drilling while maintaining tool rigidity and accuracy.
Complete Size Range
Available from 3.0mm to 5.9mm with standard increments to meet diverse application requirements.
Internal Coolant System
Through-tool coolant delivery reduces thermal stress, extends tool life, and improves chip control.
HRC60+ Performance
Specifically engineered to machine hardened steels, tool steels, and other difficult materials efficiently.
140° Point Geometry
Optimized point angle ensures excellent centering, reduces thrust force, and minimizes walking.
Premium Carbide Quality
Micro-grain carbide substrate delivers superior wear resistance and long-term cutting performance.
Technical Specifications
| Brand | BEYOND |
|---|---|
| Tool Type | Coolant Through Hole Twist Drill |
| Material | Micro-Grain Carbide |
| Diameter Range | 3.0mm - 5.9mm |
| Drill Length | 3x Diameter (3xD) |
| Hardness Capability | Up to HRC60 |
| Point Angle | 140° |
| Coolant System | Internal Through-Tool |
| Shank Type | Straight Shank |
| Standard Coating | TiAlN |
Available Sizes (3xD Length)
3.0mm - 3.9mm Series
3.0, 3.1, 3.2, 3.3, 3.4, 3.5, 3.6, 3.7, 3.8, 3.9mm
4.0mm - 4.9mm Series
4.0, 4.1, 4.2, 4.3, 4.4, 4.5, 4.6, 4.7, 4.8, 4.9mm
5.0mm - 5.9mm Series
5.0, 5.1, 5.2, 5.3, 5.4, 5.5, 5.6, 5.7, 5.8, 5.9mm
Recommended Applications
Mold Manufacturing
- Injection mold cooling channels
- Mold base construction
- Die casting mold vents
Tool & Die Making
- Tool steel machining
- Die component drilling
- Fixture manufacturing
General Machining
- Hardened steel components
- Alloy steel parts
- Precision engineering
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
