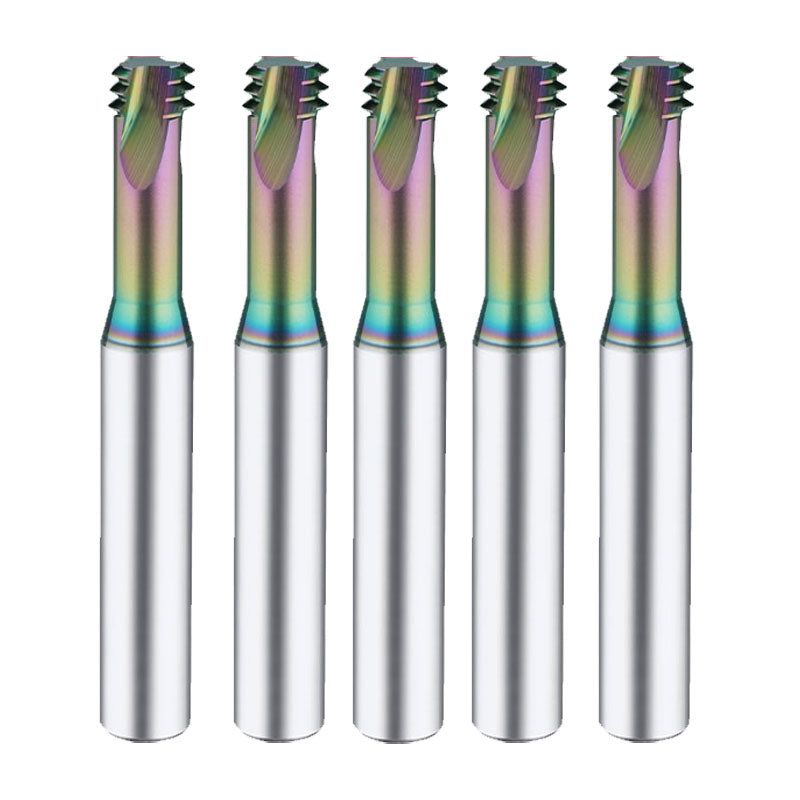

3-Flute Thread Milling Cutter for Aluminum – Solid Carbide Metric Thread Mill, CNC Single-Tooth Design

$16.04 USD

30-Day Free Returns

Free Worldwide Shipping

SIZE: M1.6*0.35-3-AL

M1.6*0.35-3-AL
M2.0*0.4-3-AL

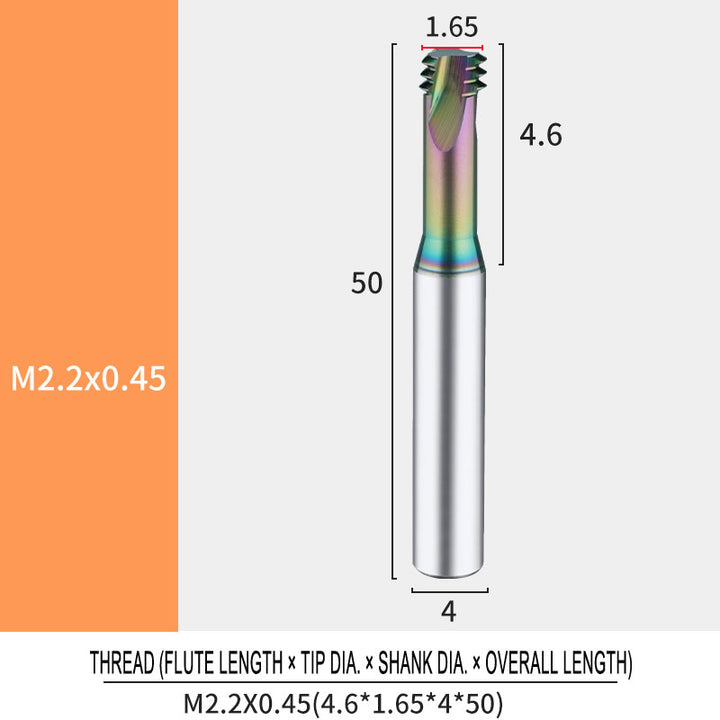

M2.2*0.45-3-AL
M2.5*0.45-3-AL
M3*0.5-3-AL

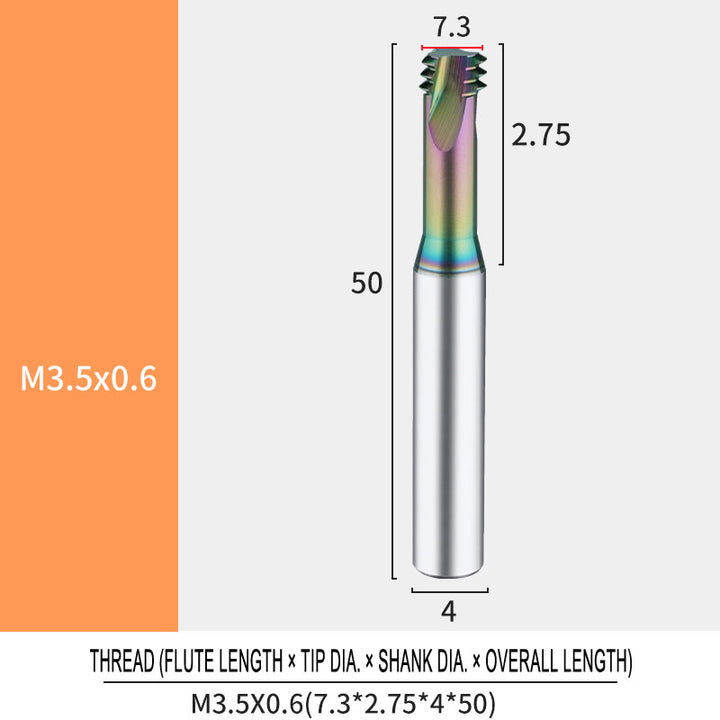

M3.5*0.6-3-AL
M4*0.7-3-AL
M5*0.8-3-AL
M6*1.0-3-AL
M8*1.25-3-AL

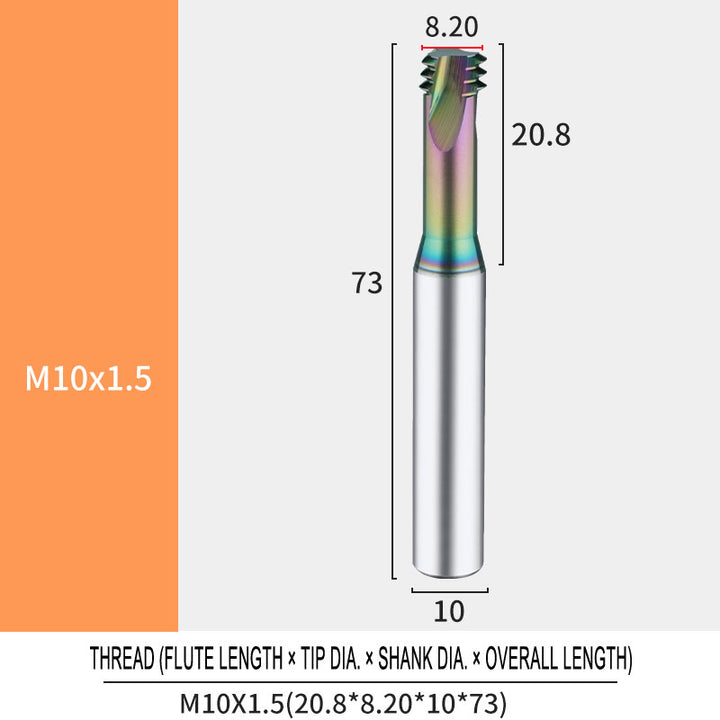

M10*1.5-3-AL
M12*1.75-3-AL
M16*2-3-AL
M20*2.5-3-AL
Add to WishlistCompare

american expressmasterpaypalvisaapple paygoogle payshopify pay
Order in the next [totalHours] hours %M minutes to get it between and
SKU:
Description

High-Performance 3-Flute Thread Milling Cutter for Aluminum

  • Precision Threading for ISO Metric Threads

  • Engineered for CNC Aluminum Machining

  • Durable Solid Carbide Construction

Product Overview:
This 3-flute solid carbide thread milling cutter is expertly crafted for high-speed threading in aluminum and other non-ferrous materials. Designed according to ISO metric thread standards, it features a single-tooth profile with optimized cutting geometry for efficient chip removal and smooth operation on CNC machining centers. Whether you're working with aluminum alloys, copper, or plastic, this tool delivers precise and reliable results.

Applications:

  • CNC internal threading in aluminum, brass, copper

  • Ideal for aerospace, automotive, electronics, and mold industries

  • Compatible with M1 to M20 ISO metric thread specifications

Specifications:

  • Material: Ultra-fine grain tungsten carbide

  • Flute: 3-Flute Design

  • Thread Type: ISO Metric (DIN13)

  • Cutting Type: Single-tooth thread milling

  • Coating: Optional TiAlN or uncoated for non-ferrous metals

  • Machine: CNC Machining Center, Lathe, Milling Machine

Additional Information
SIZE

M1.6*0.35-3-AL, M2.0*0.4-3-AL, M2.2*0.45-3-AL, M2.5*0.45-3-AL, M3*0.5-3-AL, M3.5*0.6-3-AL, M4*0.7-3-AL, M5*0.8-3-AL, M6*1.0-3-AL, M8*1.25-3-AL, M10*1.5-3-AL, M12*1.75-3-AL, M16*2-3-AL, M20*2.5-3-AL
