4mm Aluminum T-Slot Milling Cutter carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
4mm Aluminum T-Slot Milling Cutter | BEYOND 55° HRC CNC Slot End Mill
The BEYOND 4mm Aluminum T-Slot Milling Cutter is specially designed for precise slotting and contour machining in aluminum alloys, stainless steel, and cast iron. Built from high-quality tungsten carbide with HRC≤55° hardness, it ensures excellent sharpness, wear resistance, and cutting stability during CNC machining operations.
Product Features
- Cutting Diameter (d1): 4mm — suitable for fine and medium T-slot machining.
- Material: Premium carbide with 55° hardness for superior durability.
- Optimized for aluminum, stainless steel, mold steel, and graphite cast iron.
- Sharp cutting edges ensure smooth cutting and minimal vibration.
- Polished surface finish for improved chip evacuation and precision performance.
Technical Specifications

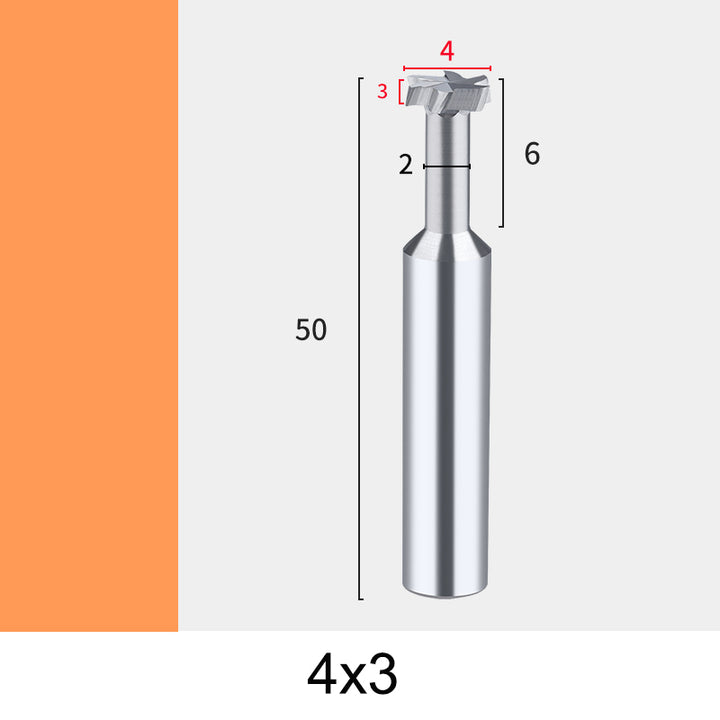

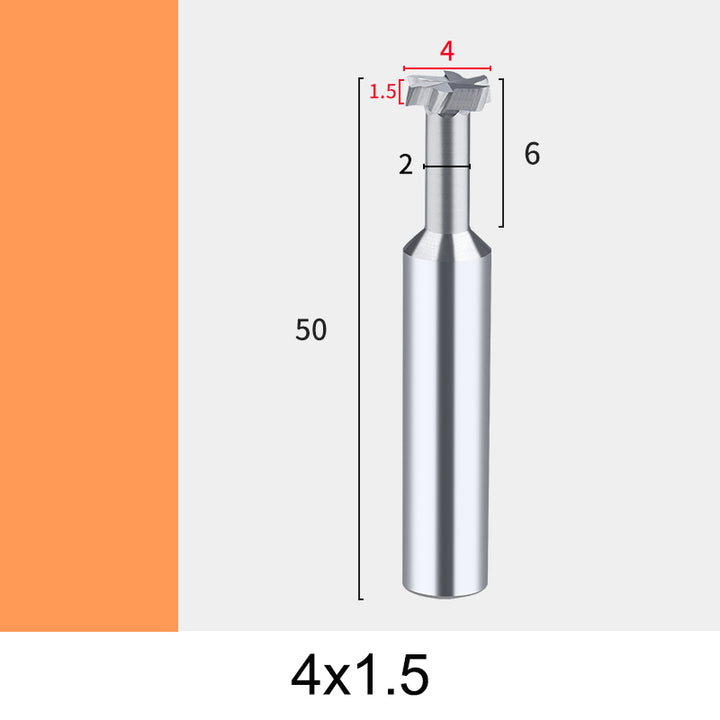

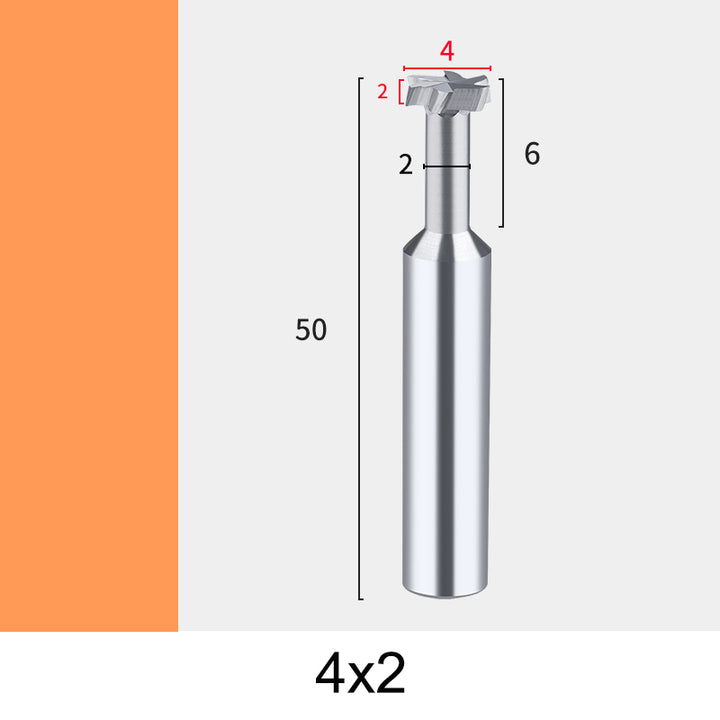

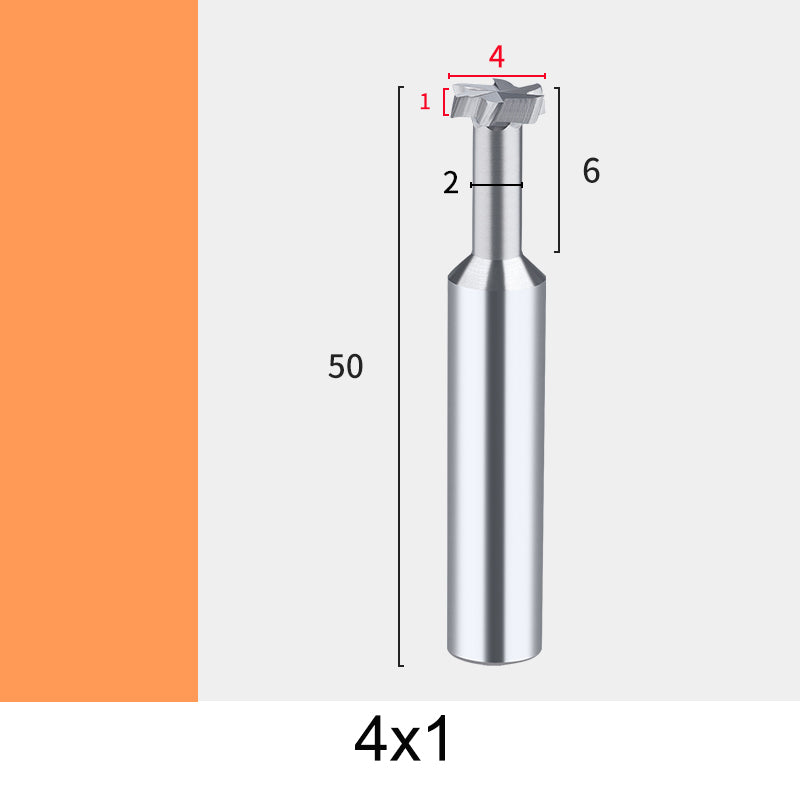

| Cutting Diameter (d1) | Thickness (L1) | Shank Diameter (d2) | Neck Length (L2) | Total Length | Flutes |
|---|---|---|---|---|---|
| 4mm | 1 / 1.5 / 2 / 2.5 / 3 mm | 2 mm | 6 mm | 50 mm | 4 |
Applications
The BEYOND 4mm T-slot milling cutter is ideal for processing aluminum molds, stainless steel parts, and alloy components. It is widely used in CNC machining centers, engraving machines, high-speed mills, and precision milling operations. Suitable for both prototype and production machining.
Recommended Machines
- CNC machining centers
- Precision engraving and milling machines
- High-speed milling machines
- Numerical control engraving tools
Advantages of BEYOND Aluminum T-Slot Cutters
- Excellent surface finish with reduced burr formation
- High rigidity ensures dimensional accuracy during slotting
- Superior chip evacuation and reduced tool wear
- Stable cutting performance at high spindle speeds
- Extended tool life for mass production environments
Product Applications Examples
Perfect for machining aluminum alloy frames, heat sinks, automotive parts, precision molds, and mechanical slots. The BEYOND 4mm T-slot milling cutter provides consistent results in both manual and automated CNC setups.
SEO Keyword Suggestions
4mm aluminum T-slot milling cutter, BEYOND CNC slot end mill, carbide T-slot cutter 4mm, aluminum slotting tool HRC55, T-slot milling cutter for aluminum alloy, CNC aluminum cutting end mill, BEYOND carbide milling cutter.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
