4mm Coated Chamfer Milling Cutter 2 Flutes 60°/90°/120° carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
4mm Coated Chamfer Milling Cutter 2 Flutes – BEYOND Carbide End Mill
The BEYOND 4mm Coated Chamfer Milling Cutter delivers outstanding performance and long tool life. Designed with 2 flutes and available in 60°, 90°, and 120° angles, this cutter ensures clean and precise edge chamfering on a wide range of metals.
Product Features
- Size: 4mm diameter
- Flutes: 2-flute design for smooth chip evacuation
- Angle Options: 60°, 90°, 120°
- Material: Ultra-fine grain carbide
- Coating: High-performance wear-resistant coating for longer tool life
- Brand: BEYOND
Applicable Materials
Suitable for machining a variety of materials including:
- Stainless steel
- Mold steel
- Ductile iron
- Alloy steel
- Quenched and tempered steel
- Titanium alloy
Advantages
- Excellent edge finish and precision for beveling or deburring
- Stable cutting performance at high speeds
- Coating improves heat resistance and tool durability
- Ideal for CNC machining centers and milling machines
Technical Parameters

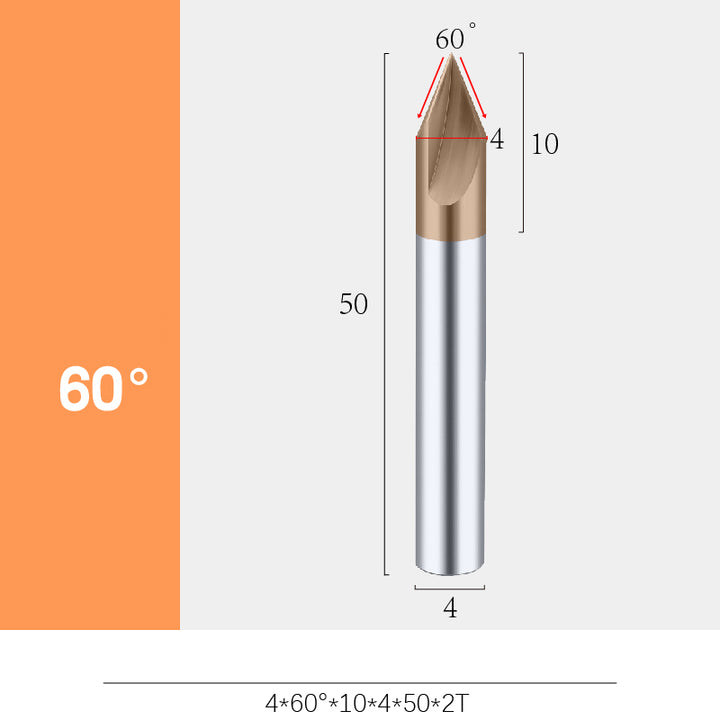

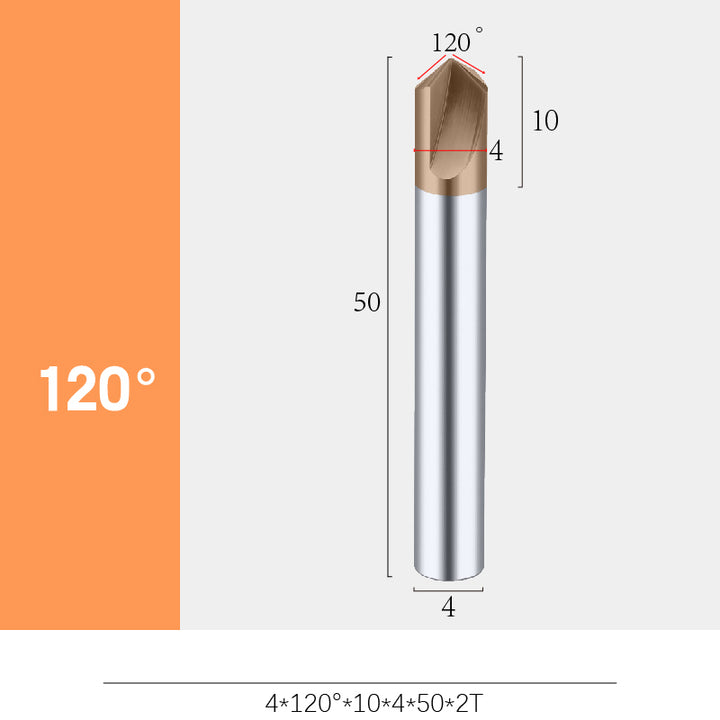

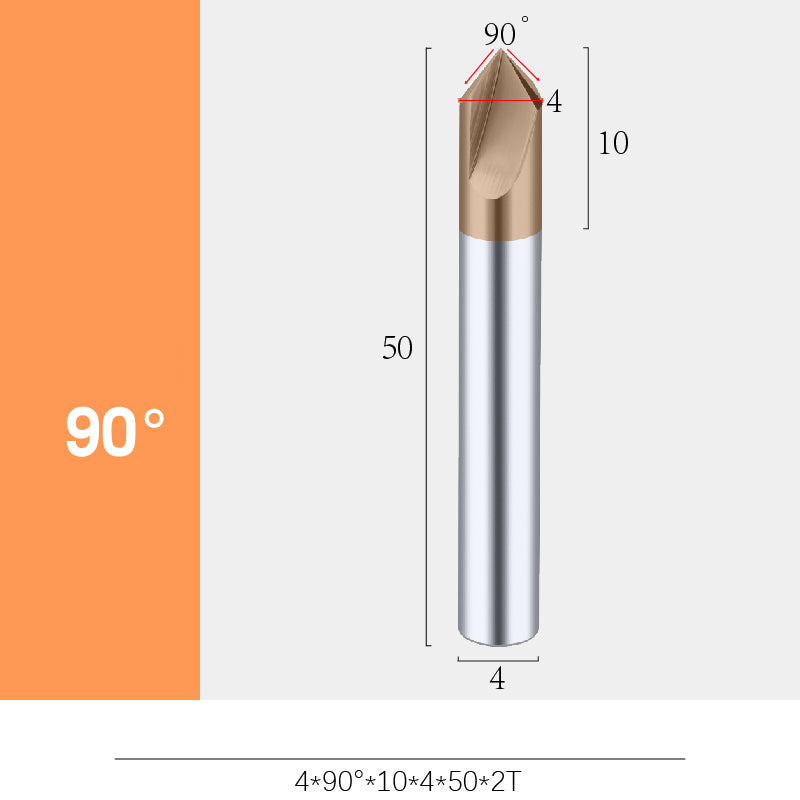

| Diameter (D1) | Flutes | Angle | Material | Coating |
|---|---|---|---|---|
| 4mm | 2 | 60° | Carbide | TiAlN Coated |
| 4mm | 2 | 90° | Carbide | TiAlN Coated |
| 4mm | 2 | 120° | Carbide | TiAlN Coated |
Keyword Focus & Search Optimization
This page targets high-traffic and long-tail keywords such as: 4mm chamfer milling cutter, carbide chamfer end mill, metal beveling tool, 2 flute chamfer cutter, precision carbide deburring cutter, and BEYOND CNC chamfer tools.
BEYOND Chamfer Milling Cutter — your reliable partner for high-efficiency metal beveling and deburring solutions.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
