OYYU 4NKT060308R-M OY880A（10pcs） Indexable Insert – High Feed Milling Grade for Steel & Stainless Steel
Price shown is a starting point. Contact us for a precise quote based on your requirements.

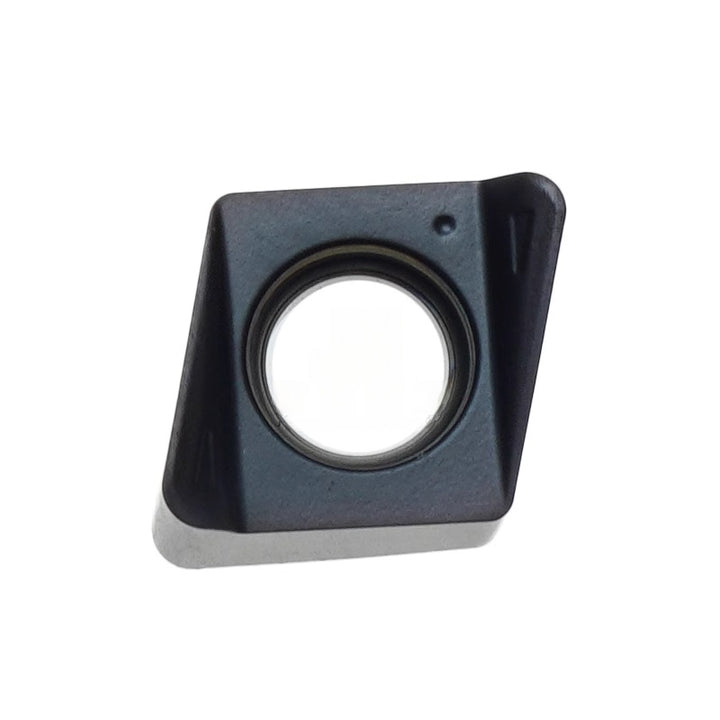

4NKT060308R-M OY880A High Feed Milling Insert
Product Overview
The 4NKT060308R-M OY880A is a precision-engineered carbide insert designed for high feed milling applications. It features a robust multi-edge geometry and chipbreaker optimized for efficient metal removal, reduced cutting force, and superior surface finish. The OY880A grade offers excellent performance in steel, stainless steel, and alloy materials, ensuring high wear resistance and extended tool life.
Key Features
-
🔧 Insert Code: 4NKT060308R-M
-
🧱 Grade: OY880A – Fine-grain carbide with nano-coating for thermal and wear resistance
-
✂️ Geometry: R-M chipbreaker for smooth chip evacuation and low cutting forces
-
🛠️ Application: Roughing and semi-finishing in high-feed milling
-
🔄 Insert Shape: Square with 4 usable cutting edges
-
🔩 Mounting: Compatible with 4NTE90 high-feed face mills
-
📈 Cutting Materials: Steel (P), Stainless Steel (M), and difficult-to-machine alloys
Application Recommendations
| Material Type | Cutting Condition | Performance |
|---|---|---|
| Carbon Steel | Stable to Interrupted | ✅ Excellent |
| Alloy Steel | Continuous | ✅ Excellent |
| Stainless Steel | Wet or Dry | ✅ High Tool Life |
| Heat-Resistant Alloys | Low to Medium Feed | ⚠️ Moderate Performance |
Compatible Tool Holders
Perfectly matches with the 4NTE90 series of high feed milling cutters, such as:
-
4NTE90 C20-20-150L-3T
-
4NTE90 C25-25-200L-4T
-
4NTE90 C32-32-150L-5T
(See full list on cutter product page)
Why Choose OY880A Grade?
-
✔️ High toughness and resistance to edge chipping
-
✔️ PVD-coated for longer tool life at high speeds
-
✔️ Suitable for both dry and wet cutting
-
✔️ Stable performance even in challenging conditions
Packaging
-
📦 10 inserts per box
-
🛡️ Factory-sealed in protective packaging for tool safety and shelf life
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
