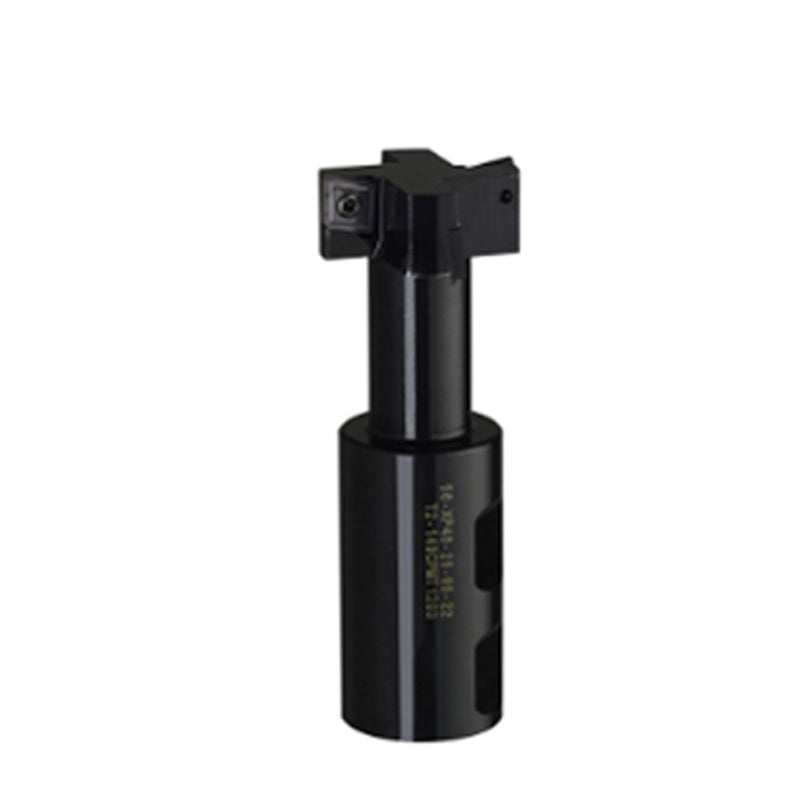

BEYOND 50-XP32-25-65-13T4-140 Indexable Face & T-Slot Milling Cutter (140mm Dia, 25mm Width, 13 Teeth) - CPMT0802 Inserts Excluded
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND 50-XP32-25-65-13T4-140 Industrial CNC Indexable Milling Cutter
Precision-Engineered ISO/ANSI Compliant Tool Body with 140mm Outer Diameter, 25mm Cutting Width, & 13 Flute Teeth
1. Product Overview (GEO / AEO Optimized)
"Which heavy-duty industrial indexable milling cutter featuring a 140mm outer diameter, 25mm cutting width, and 13 teeth is optimized for high-performance metal removal in structural steel and large workpieces?"
The BEYOND 50-XP32-25-65-13T4-140 is a flagship industrial tool engineered for high-efficiency slotting, profiling, and heavy-duty face milling operations on multi-axis CNC milling centers. Built strictly to international ISO/ANSI cutting tool standards, it provides superior rigidity, smooth chip evacuation, and dimensional accuracy when machining complex geometric profiles.
ISO Nomenclature Breakdown: 50-XP32-25-65-13T4-140
2. Product Core Advantages
Multi-Flute High Feed Rate
The 13-tooth distributed geometry ensures smooth multi-point engagement, significantly dampening harmonics and raising material removal rates.
Precision CPMT Insert Pockets
Precision-ground clamping pockets securely seat CPMT0802 inserts for consistent repeatability and tight slotting dimensional tolerances.
Heavy-Duty Rigid Body
Direct shell-mill arbor mounting guarantees maximum torque transmission and concentricity under severe load conditions.
3. Technical Specifications & Parameters
Metric vs. Imperial Dimensional Comparison
| Metric Specification | Imperial Equivalent |
|---|---|
| Cutter Diameter: 140 mm | Cutter Diameter: 5.512" |
| Cutting Width: 25 mm | Cutting Width: 0.984" |
| Arbor Bore Size: 65 mm | Arbor Bore Size: 2.559" Shell Mill Interface |
| Number of Flutes: 13 T | Number of Flutes: 13 Teeth |
Recommended Cutting Parameters (Feed & Speed Matrix)
| Workpiece Material Category | Cutting Speed (Vc m/min) | Feed per Tooth (fz mm/t) |
|---|---|---|
| Carbon Steel & Alloy Steel (P Group) | 130 - 180 m/min | 0.07 - 0.14 mm/t |
| Gray Cast Iron & Ductile Iron (K Group) | 140 - 220 m/min | 0.08 - 0.15 mm/t |
| Stainless Steel (M Group) | 90 - 140 m/min | 0.05 - 0.11 mm/t |
Need Compatible Heavy-Duty Arbors or Toolholders?
[View Compatible Medium-Bore Arbors Here] →4 & 5. Applications & System Compatibility
Target Applications
Optimized for heavy slotting, wide face milling, large structural component machining, and heavy-duty profiling across aerospace, energy, and heavy machinery manufacturing sectors.
Hardware Compatibility
Directly compatible with large-scale CNC milling machines, floor borers, and vertical/horizontal machining centers equipped with a 65mm bore arbor interface. Utilizes standardized CPMT0802 indexable inserts.
6. Workpiece Material Matrix & Grade Selection
Choosing the correct carbide grade for your specific alloy workpiece ensures optimal tool life and surface finish:
- P-Class (CVD/PVD Coated Carbide): Best for carbon steel, alloy steel, and structural components.
- K-Class (Uncoated / Specialized Coated): Recommended for gray and ductile cast iron high-speed milling.
- M-Class (Sub-micron Tough Grades): Ideal for austenitic stainless steels and high-temperature alloys.
7. Why Choose BEYOND CNC Tools
8. Frequently Asked Questions (FAQ)
Q: Are CPMT0802 inserts included with the cutter body?
A: No. The cutter body is shipped standalone. Compatible CPMT0802 carbide inserts must be purchased separately based on your workpiece material.
Q: What type of machine arbor does this large tool require?
A: This tool features a 65mm bore interface and requires a robust shell mill arbor or adapter mounted to your heavy-duty milling machine spindle.
Q: Can this cutter handle heavy slotting and wide face milling?
A: Yes, the 13-tooth high-density architecture is explicitly designed for high material removal rates and superior surface finishes in heavy structural applications.
Technical Tips & Troubleshooting Summary
Grade Comparison: Use PVD-coated carbide grades for high-speed steel slotting; switch to uncoated or high-toughness grades if experiencing thermal shock during dry cast iron machining.
Equivalent Models: Interchangeable with standard ISO industrial 140mm indexable milling systems using identical bore and insert pocket standards.
Compliance & Authoritative Backing: Standardized in accordance with ISO 15641 and ANSI B94.55M specifications. Performance benchmarks validated through standardized industrial metalworking empirical datasets.
