5mm Coated Chamfer Milling Cutter 2 Flutes 60°/90°/120° carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
5mm Coated Chamfer Milling Cutter 2 Flutes – BEYOND Carbide End Mill
The BEYOND 5mm Coated Chamfer Milling Cutter is designed for high-efficiency beveling, deburring, and edge finishing across a wide range of metals. With a 2-flute carbide structure and precision-ground geometry, it delivers outstanding stability and accuracy for professional CNC machining applications.
Product Features
- Size: 5mm diameter
- Flutes: 2 flutes for stable cutting and smooth chip evacuation
- Angle Options: 60°, 90°, 120°
- Material: Premium micro-grain carbide
- Coating: TiAlN or AlTiN coating for excellent wear and heat resistance
- Brand: BEYOND
Applicable Materials
This carbide chamfer milling cutter is suitable for:
- Stainless steel (SUS304, SUS316)
- Mold steel
- Ductile cast iron
- Alloy steel
- Quenched and tempered steel
- Titanium alloy
Advantages
- Sharp cutting edge for precise and smooth chamfering
- Long tool life with superior coating protection
- High surface finish and dimensional accuracy
- Excellent chip control for high-speed CNC machining
Technical Specifications
| Diameter (D1) | Flutes | Angle | Material | Coating |
|---|---|---|---|---|

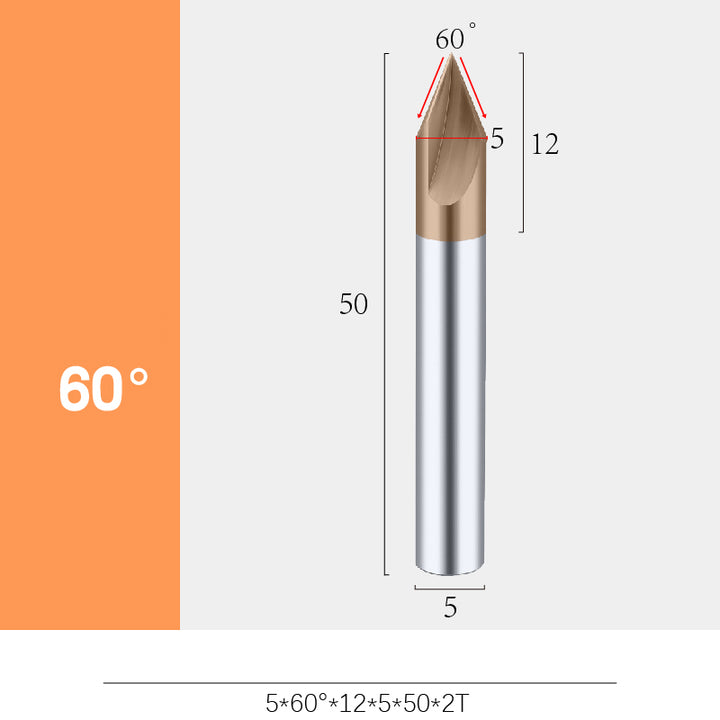

| 5mm | 2 | 60° | Carbide | TiAlN |
| 5mm | 2 | 90° | Carbide | TiAlN |
| 5mm | 2 | 120° | Carbide | TiAlN |
Why Choose BEYOND Chamfer Milling Cutter?
- Professional quality for industrial-grade CNC machining
- Consistent edge geometry for stable beveling results
- Available in a full range of diameters (3mm–20mm)
- OEM & ODM customization available
BEYOND Chamfer Milling Cutter — engineered for precision metal beveling and long-lasting performance in all CNC machining environments.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
