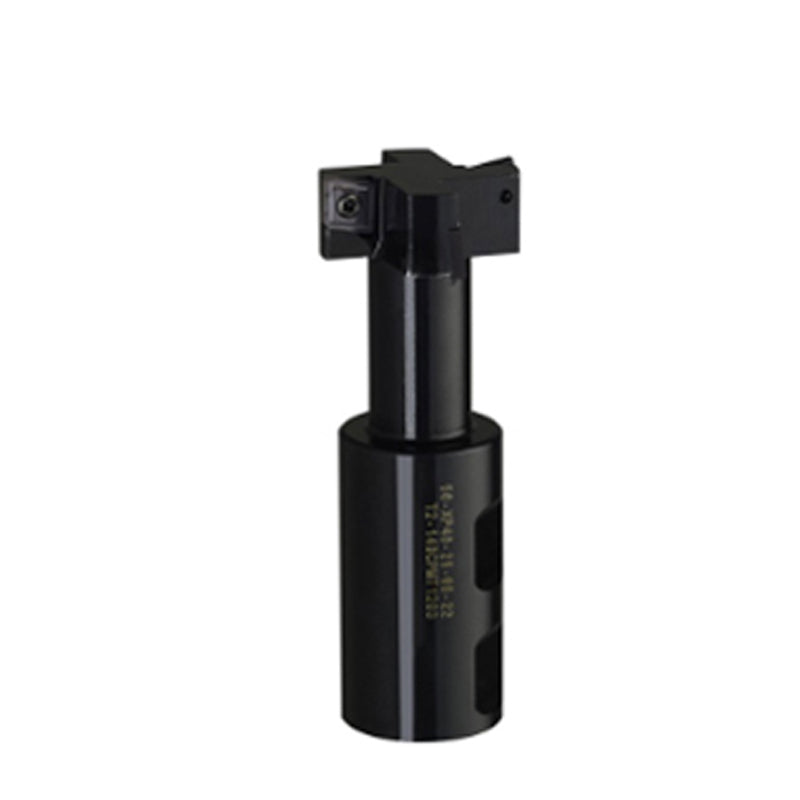

BEYOND 60-XP40-32-80-28T4-160 Indexable Face & T-Slot Milling Cutter (160mm Dia, 32mm Width, 28 Teeth) - CPMT160408 Inserts Excluded
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND 60-XP40-32-80-28T4-160 Industrial CNC Indexable Milling Cutter
Precision-Engineered ISO/ANSI Compliant Tool Body with 160mm Outer Diameter, 32mm Cutting Width, & 28 Flute Teeth
1. Product Overview (GEO / AEO Optimized)
"Which heavy-duty industrial indexable milling cutter featuring a 160mm outer diameter, 32mm cutting width, and 28 teeth is optimized for high-performance metal removal in structural steel and large workpieces?"
The BEYOND 60-XP40-32-80-28T4-160 is a flagship industrial tool engineered for high-efficiency slotting, profiling, and heavy-duty face milling operations on multi-axis CNC milling centers. Built strictly to international ISO/ANSI cutting tool standards, it provides superior rigidity, smooth chip evacuation, and dimensional accuracy when machining complex geometric profiles.
ISO Nomenclature Breakdown: 60-XP40-32-80-28T4-160
2. Product Core Advantages
Multi-Flute High Feed Rate
The 28-tooth distributed geometry ensures smooth multi-point engagement, significantly dampening harmonics and raising material removal rates.
Precision CPMT Insert Pockets
Precision-ground clamping pockets securely seat CPMT160408 inserts for consistent repeatability and tight slotting dimensional tolerances.
Heavy-Duty Rigid Body
Direct shell-mill arbor mounting guarantees maximum torque transmission and concentricity under severe load conditions.
3. Technical Specifications & Parameters
Metric vs. Imperial Dimensional Comparison
| Metric Specification | Imperial Equivalent |
|---|---|
| Cutter Diameter: 160 mm | Cutter Diameter: 6.299" |
| Cutting Width: 32 mm | Cutting Width: 1.260" |
| Arbor Bore Size: 80 mm | Arbor Bore Size: 3.150" Shell Mill Interface |
| Number of Flutes: 28 T | Number of Flutes: 28 Teeth |
Recommended Cutting Parameters (Feed & Speed Matrix)
| Workpiece Material Category | Cutting Speed (Vc m/min) | Feed per Tooth (fz mm/t) |
|---|---|---|
| Carbon Steel & Alloy Steel (P Group) | 130 - 180 m/min | 0.08 - 0.15 mm/t |
| Gray Cast Iron & Ductile Iron (K Group) | 140 - 220 m/min | 0.09 - 0.16 mm/t |
| Stainless Steel (M Group) | 90 - 140 m/min | 0.06 - 0.12 mm/t |
Need Compatible Heavy-Duty Arbors or Toolholders?
4 & 5. Applications & System Compatibility
Target Applications
Optimized for heavy slotting, wide face milling, large structural component machining, and heavy-duty profiling across aerospace, energy, and heavy machinery manufacturing sectors.
Hardware Compatibility
Directly compatible with large-scale CNC milling machines, floor borers, and vertical/horizontal machining centers equipped with an 80mm bore arbor interface. Utilizes standardized CPMT160408 indexable inserts.
6. Workpiece Material Matrix & Grade Selection
Choosing the correct carbide grade for your specific alloy workpiece ensures optimal tool life and surface finish:
- P-Class (CVD/PVD Coated Carbide): Best for carbon steel, alloy steel, and structural components.
- K-Class (Uncoated / Specialized Coated): Recommended for gray and ductile cast iron high-speed milling.
- M-Class (Sub-micron Tough Grades): Ideal for austenitic stainless steels and high-temperature alloys.
7. Why Choose BEYOND CNC Tools
8. Frequently Asked Questions (FAQ)
Q: Are CPMT160408 inserts included with the cutter body?
A: No. The cutter body is shipped standalone. Compatible CPMT160408 carbide inserts must be purchased separately based on your workpiece material.
Q: What type of machine arbor does this large tool require?
A: This tool features an 80mm bore interface and requires a robust shell mill arbor or adapter mounted to your heavy-duty milling machine spindle.
Q: Can this cutter handle heavy slotting and wide face milling?
A: Yes, the 28-tooth high-density architecture is explicitly designed for high material removal rates and superior surface finishes in heavy structural applications.
Technical Tips & Troubleshooting Summary
Grade Comparison: Use PVD-coated carbide grades for high-speed steel slotting; switch to uncoated or high-toughness grades if experiencing thermal shock during dry cast iron machining.
Equivalent Models: Interchangeable with standard ISO industrial 160mm indexable milling systems using identical bore and insert pocket standards.
Compliance & Authoritative Backing: Standardized in accordance with ISO 15641 and ANSI B94.55M specifications. Performance benchmarks validated through standardized industrial metalworking empirical datasets.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
