6mm 3 Flute Coated Carbide Chamfer Cutter 60°/90°/120° carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND 6mm 3 Flute Coated Carbide Chamfer Cutter 60°/90°/120°
BEYOND 6mm 3 flute coated carbide chamfer cutter is engineered for high-speed CNC chamfering and deburring applications. With precision-ground flutes and premium coating, it delivers stable performance, excellent surface finish, and extended tool life across a wide range of materials.
Product Features
- ✔ High Precision 3-Flute Design – Provides smooth cutting and consistent chamfer width during high-speed machining.
- ✔ Advanced Coating Technology – Improves wear resistance and heat resistance, ensuring long-lasting sharpness.

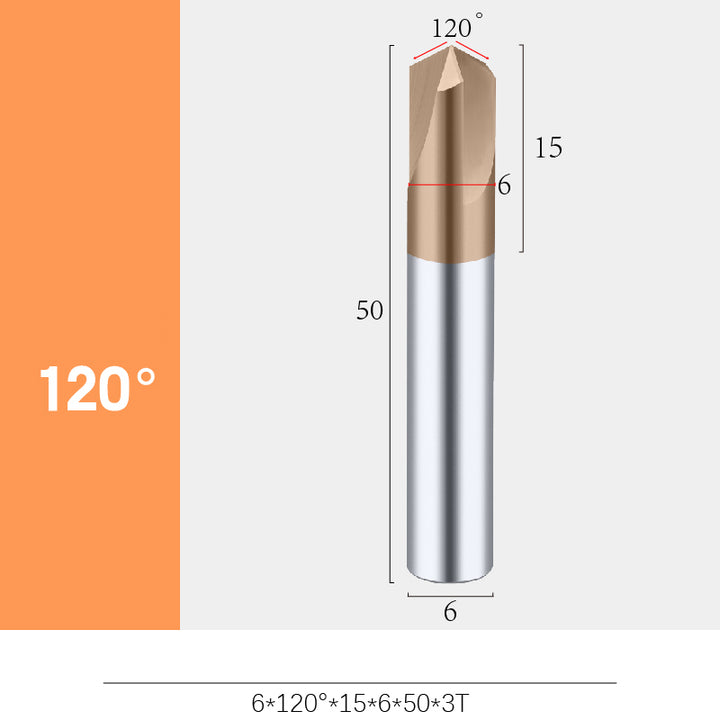

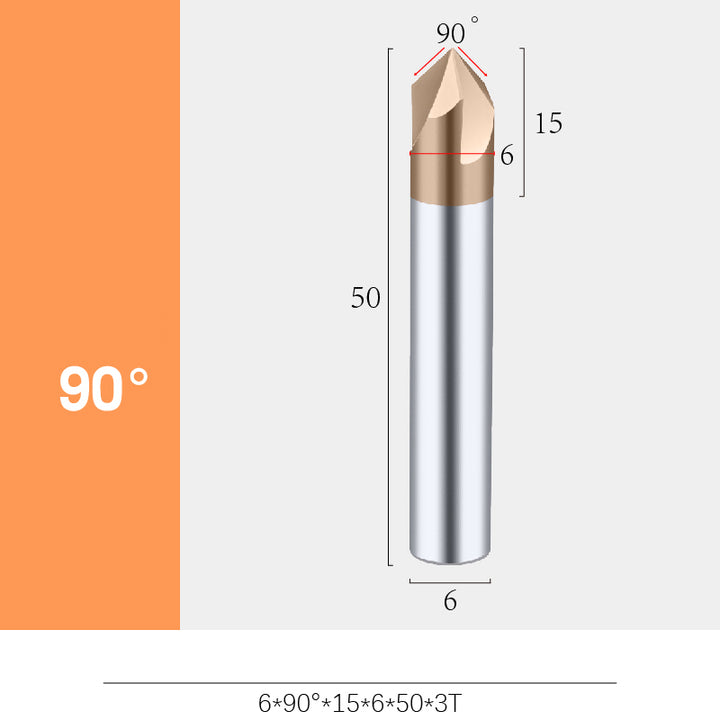

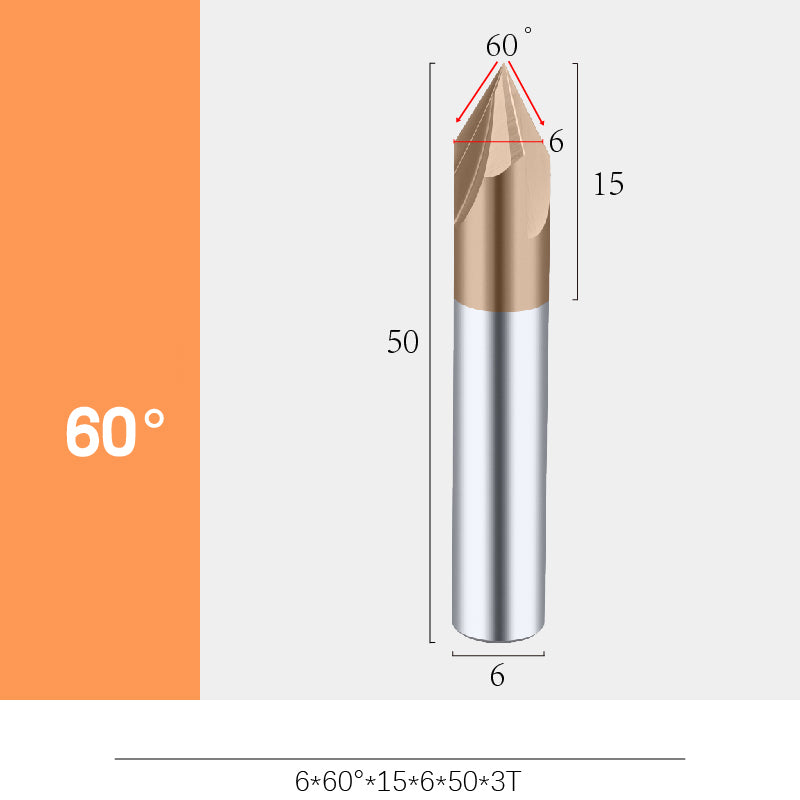

- ✔ Multi-Angle Options – Available in 60°, 90°, and 120° angles for different chamfering requirements.
- ✔ Premium Carbide Substrate – Guarantees rigidity and stability in heavy-duty CNC operations.
- ✔ Wide Material Compatibility – Suitable for stainless steel, alloy steel, mold steel, ductile cast iron, quenched steel, and titanium alloy.
Technical Specifications
| Cutting Diameter (D1) | Angle (°) | Flute Length (L2) | Shank Diameter (D2) | Total Length (L1) |
|---|---|---|---|---|
| 6 mm | 60° / 90° / 120° | 14 mm | 6 mm | 50 mm |
Applications
- Chamfering, deburring, and edge finishing on CNC milling machines.
- Precision machining of stainless steel, mold steel, alloy steel, cast iron, and titanium alloys.
- Ideal for mold making, precision parts, and metalworking industries.
Recommended Keywords
carbide chamfer cutter, 6mm chamfer end mill, 3 flute chamfer tool, coated chamfer cutter, 90 degree chamfer end mill, CNC chamfer milling cutter, BEYOND carbide tools, chamfer cutter for stainless steel, titanium alloy chamfering tool, 60° 90° 120° chamfer cutter.
Why Choose BEYOND
BEYOND focuses on high-performance CNC cutting tools built for accuracy, durability, and productivity. Each coated carbide chamfer cutter is manufactured to strict tolerances, ensuring superior precision and efficiency in demanding machining environments.
Packaging & Delivery
- Each cutter individually packed in a plastic tube for protection.
- Fast worldwide shipping via DHL, FedEx, or UPS.
- OEM and customized angles available upon request.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
