6mm Aluminum T-Slot Milling Cutter carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
6mm Aluminum T-Slot Milling Cutter | BEYOND 55° HRC Carbide CNC End Mill
The BEYOND 6mm Aluminum T-Slot Milling Cutter is a precision-engineered carbide tool designed for slotting, contouring, and machining aluminum and other non-ferrous materials. Manufactured with HRC≤55° carbide substrate, it offers exceptional cutting stability, sharpness, and wear resistance, ensuring long tool life and consistent performance in CNC operations.
Product Features
- Cutting Diameter (d1): 6mm
- Material: Ultra-fine carbide with TiAIN coating (optional)
- Hardness: HRC ≤ 55°, ideal for aluminum and soft steel cutting
- High-polish flute design for excellent chip evacuation
- Balanced cutting edges reduce vibration and improve precision
- Stable performance under high spindle speed and feed rate
Technical Specifications

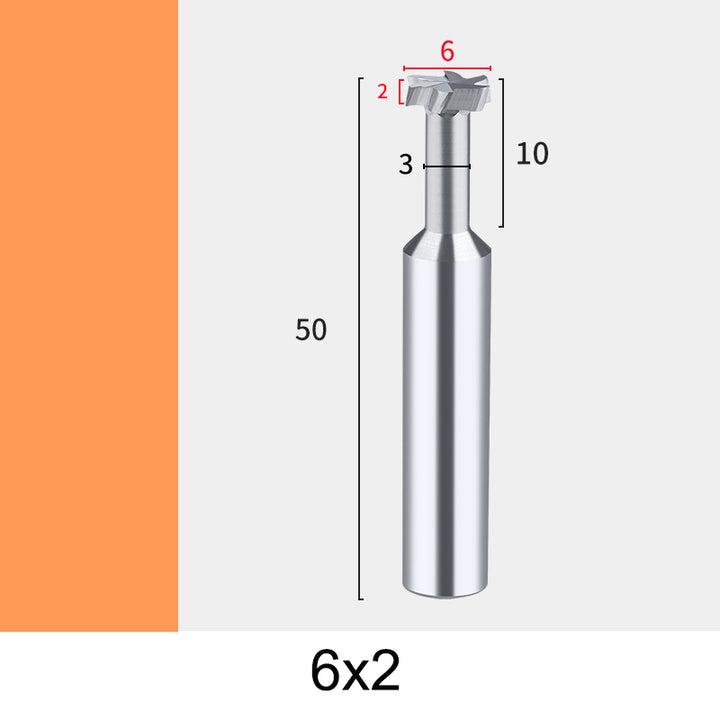

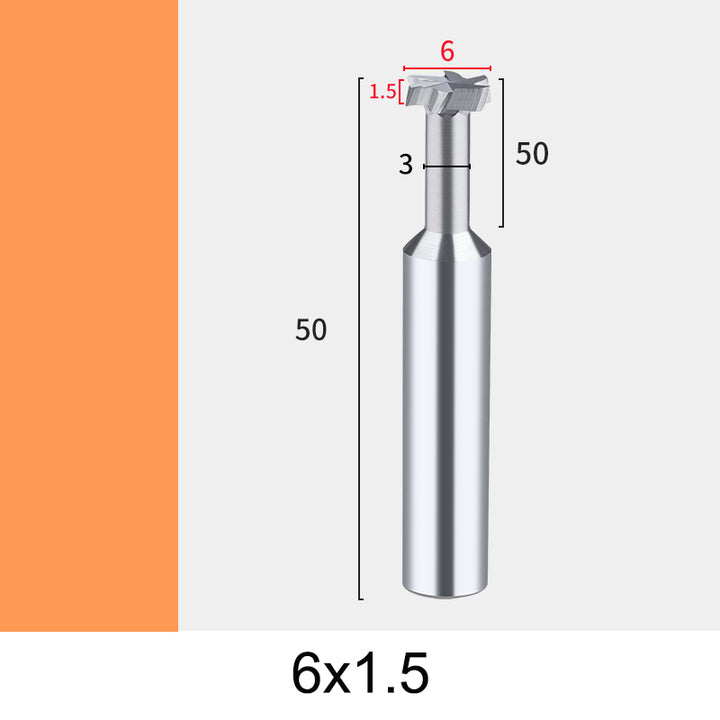

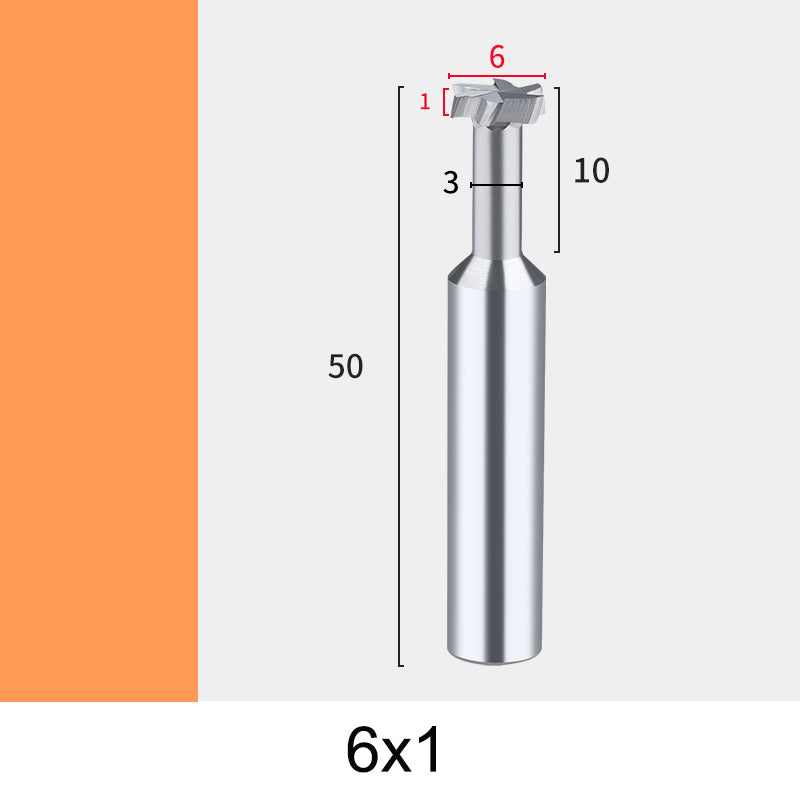

| Cutting Diameter (d1) | Thickness (L1) | Shank Diameter (d2) | Neck Length (L2) | Total Length | Flutes |
|---|---|---|---|---|---|
| 6mm | 1.5 / 2 / 2.5 / 3 mm | 3 mm | 12 mm | 50 mm | 4 |
Applications
The BEYOND 6mm T-slot milling cutter is optimized for aluminum alloys, stainless steel, mild steel, and non-ferrous metals. It is widely used in CNC machining centers, engraving machines, high-speed milling, and mold processing.
Recommended Machines
- CNC machining centers
- High-speed milling machines
- Engraving and cutting machines
- Aluminum profile slotting equipment
Advantages of BEYOND Aluminum T-Slot Cutters
- Precision ground for ultra-smooth aluminum cutting
- Reduced chip adhesion and improved surface quality
- High-speed cutting without tool deformation
- Long-lasting edge retention and wear resistance
- Perfect balance between cutting speed and durability
Product Application Examples
Ideal for manufacturing aluminum molds, automotive parts, precision machinery slots, and aerospace components. The BEYOND 6mm Aluminum T-Slot Milling Cutter delivers consistent and reliable machining performance in both manual and CNC environments.
SEO Keyword Suggestions
6mm aluminum T-slot milling cutter, BEYOND CNC end mill for aluminum, carbide slot milling cutter 6mm, HRC55 CNC aluminum cutter, aluminum alloy slot milling tool, BEYOND T-slot end mill, carbide CNC aluminum milling cutter.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
