8mm 3 Flute Coated Carbide Chamfer Cutter 60°/90°/120° carbide end milll
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND 8mm 3 Flute Coated Carbide Chamfer Cutter 60°/90°/120°
BEYOND 8mm 3 flute coated carbide chamfer cutter is designed for precision CNC chamfering, edge breaking, and deburring. With a durable coating and sharp cutting edges, it ensures smooth performance, excellent surface finish, and long-lasting durability on various metals.
Product Features
- ✔ 3-Flute Precision Design – Provides stable cutting, smooth chip removal, and consistent chamfer quality.
- ✔ Coated Carbide Material – Increases hardness, wear resistance, and cutting efficiency.
- ✔ Multiple Angle Options – Available in 60°, 90°, and 120° for different machining applications.
- ✔ High Rigidity & Accuracy – Ideal for high-speed CNC machines, providing dimensional stability and accuracy.
- ✔ Wide Application Range – Suitable for stainless steel, alloy steel, mold steel, ductile cast iron, quenched steel, and titanium alloy.
Technical Specifications

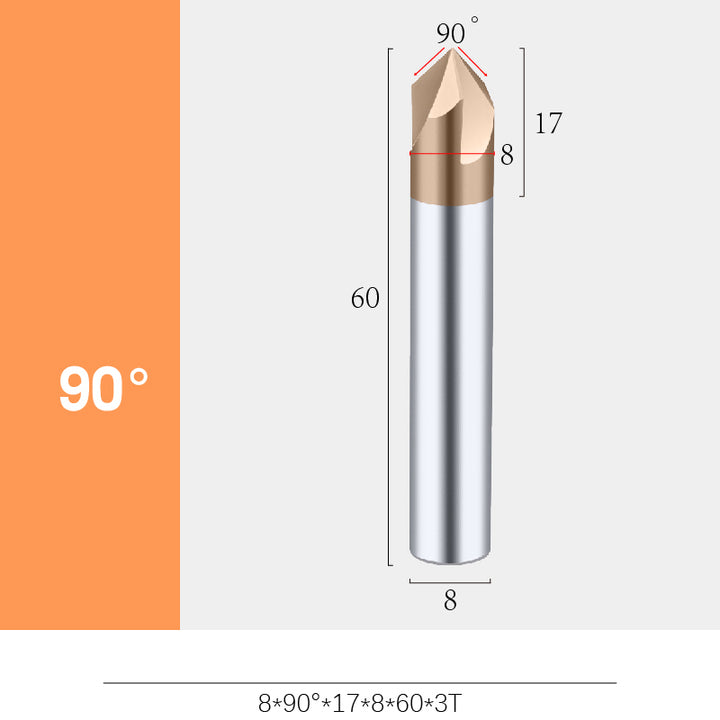

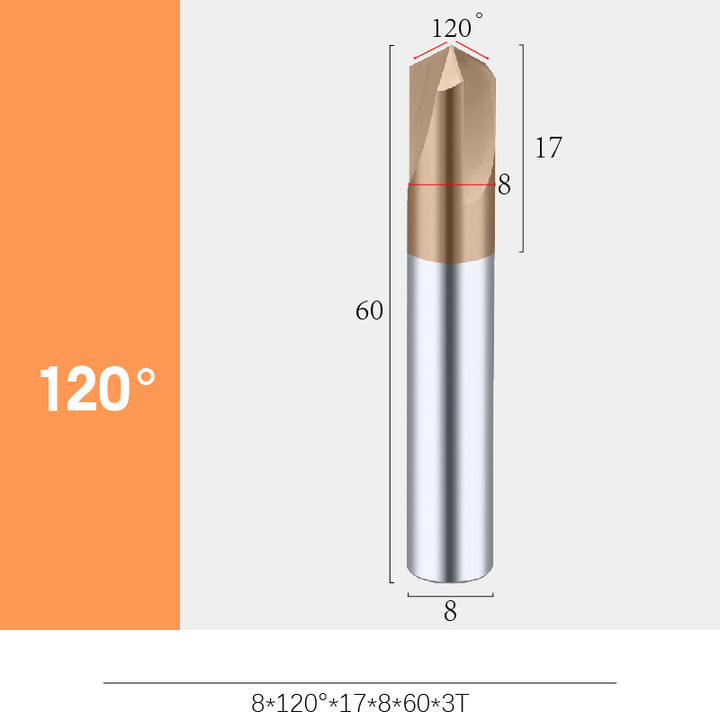

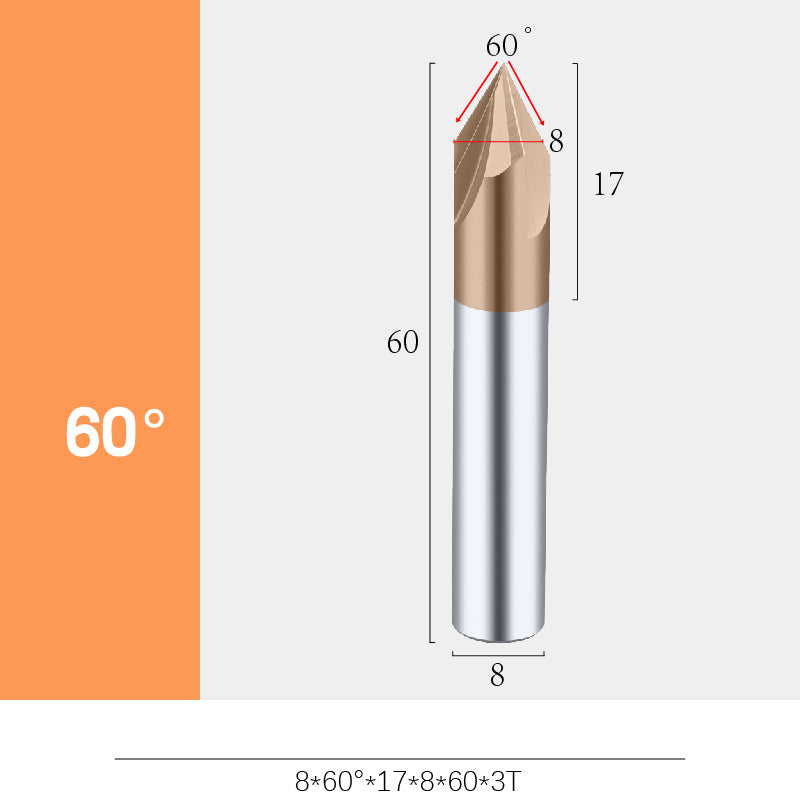

| Cutting Diameter (D1) | Angle (°) | Flute Length (L2) | Shank Diameter (D2) | Total Length (L1) |
|---|---|---|---|---|
| 8 mm | 60° / 90° / 120° | 16 mm | 8 mm | 60 mm |
Applications
- Precision chamfering, edge finishing, and deburring on CNC milling machines.
- High-efficiency cutting on stainless steel, alloy steel, mold steel, cast iron, and titanium alloys.
- Widely used in mold manufacturing, mechanical parts processing, and precision machining.
Recommended Keywords
carbide chamfer cutter, 8mm chamfer milling cutter, 3 flute chamfer tool, coated chamfer end mill, 90 degree chamfer cutter, CNC chamfering tool for stainless steel, titanium alloy chamfer cutter, BEYOND carbide tools, precision chamfer milling cutter 60° 90° 120°.
Advantages of BEYOND Chamfer Cutters
- ✅ Stable cutting with reduced vibration and improved accuracy.
- ✅ Heat-resistant coating extends tool life under high-speed cutting conditions.
- ✅ Precision-ground carbide ensures excellent surface finish.
- ✅ Reliable performance for industrial-grade metalworking.
Packaging & Delivery
- Each cutter is individually packed in a protective plastic tube.
- Fast global shipping via DHL, FedEx, or UPS.
- Custom angles and OEM services available.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
