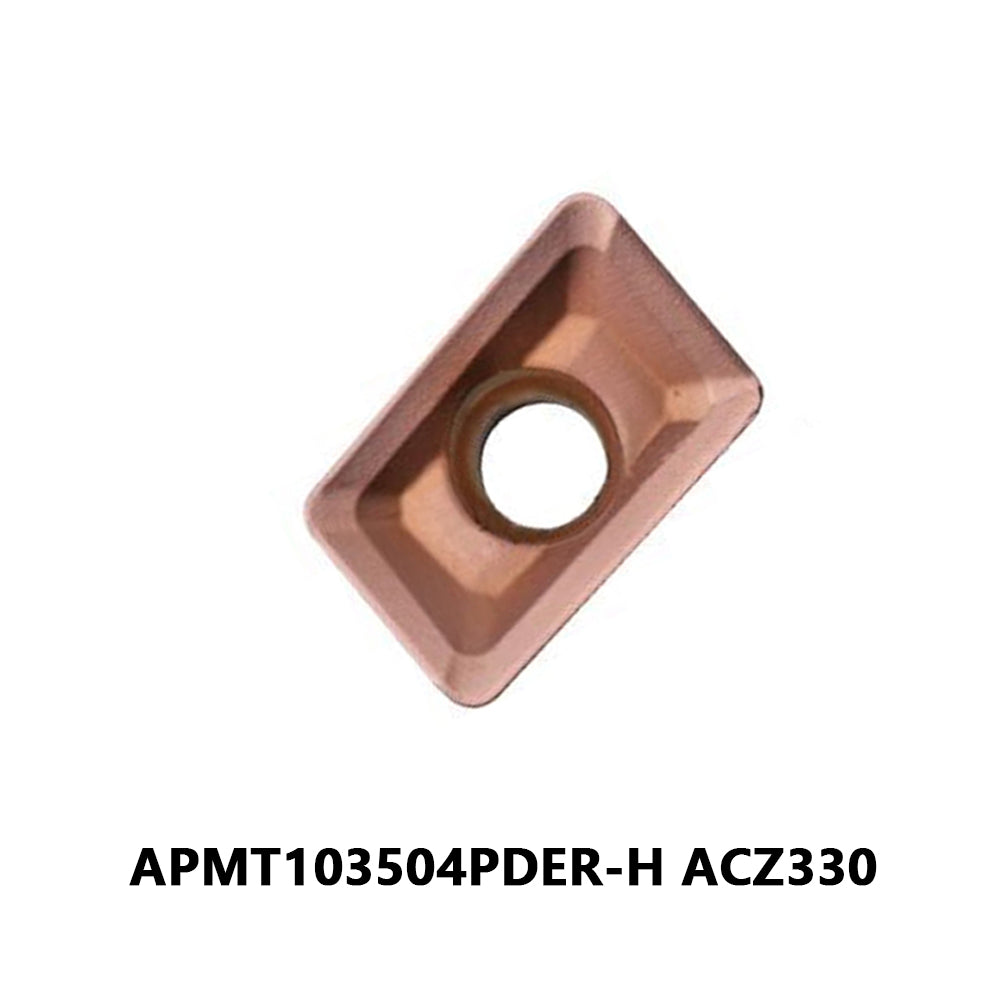

APMT103504PDER-H ACZ330 (10pcs)
$49.58 USD
30-Day Free Returns
Free Worldwide Shipping
Order in the next [totalHours] hours %M minutes to get it between and
Description
Coated Carbide:ACZ330 Designation:APMT103504PDER-H ACZ330
Nose Radius RE:0.016 / 0.4.-H: Strong Edge Type.
General-purpose:P:Work Material:Carbon Steel.Hardness:180 to 280 HB
Cutting Speed vc (m/min) Min. - Optimum - Max.:80- 120 -160.
Feed Rate fz (mm/t) Min. - Optimum - Max:
Shoulder Milling 0.05- 0.13 -0.20,Groove Milling 0.05- 0.09 -0.12,Drilling 0.05- 0.12 -0.18.Insert Grade:ACZ330
P:Work Material:Carbon Steel.Hardness:180 to 280 HB
Cutting Speed vc (m/min) Min. - Optimum - Max.:80- 120 -160.
Feed Rate fz (mm/t) Min. - Optimum - Max:
Shoulder Milling 0.05- 0.15 -0.25,Groove Milling 0.05- 0.10 -0.15,Drilling 0.05- 0.13 -0.20.Insert Grade:ACZ330
APMT103504PDER-H ACZ330 (10pcs)
$49.58
