APMT160520PDER-H ACZ330 (10pcs)
$73.33 USD
30-Day Free Returns
Free Worldwide Shipping
Order in the next [totalHours] hours %M minutes to get it between and
Description

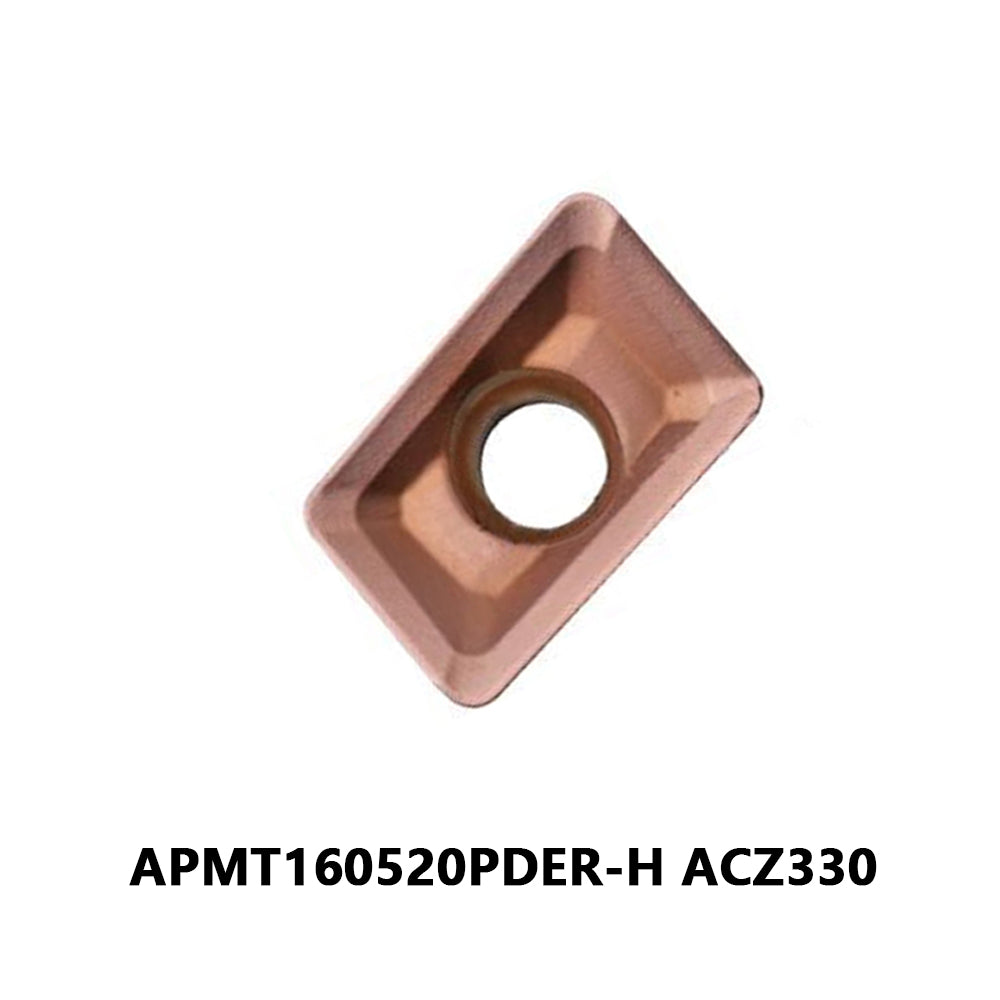

Coated Carbide:ACZ330 Designation:APMT160520PDER-H ACZ330
H:Strong Edge Type..Nose Radius RE:0.079 / 2.0.
marked inserts require modification of the cutter body. Correct the tool diameter by +0.5mm before use.
General-purpose:P:Work Material:Carbon Steel.Hardness:180 to 280 HB
Cutting Speed vc (m/min) Min. - Optimum - Max.:80- 120 -160.
Feed Rate fz (mm/t) Min. - Optimum - Max:
Shoulder Milling 0.05- 0.15 -0.25,Groove Milling 0.05- 0.10 -0.15,Drilling 0.05- 0.13 -0.20.Insert Grade:ACZ330
APMT160520PDER-H ACZ330 (10pcs)
$73.33
