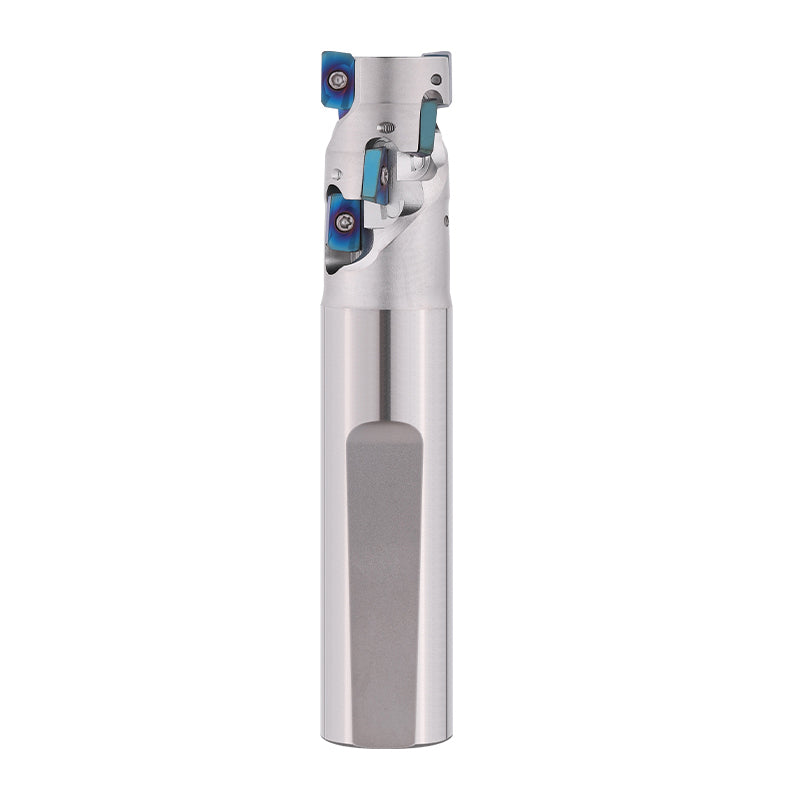

BEYOND BAP400R-45-22-28M-3T-6P Indexable Square Shoulder Milling Cutter
90° Square Shoulder Face Mill | APMT1604 Compatibility (Does Not Include Inserts)
1. Product Overview
"Which indexable square shoulder face milling cutter provides maximum pocket rigidity, excellent chip evacuation, and strict dimensional accuracy for high-feed CNC profiling in steel and alloy workpieces?"
The BEYOND BAP400R-45-22-28M-3T-6P is an industrial-grade indexable square shoulder face milling cutter designed for high-performance CNC machining centers. Forged from premium alloy steel and thermally treated for maximum resistance to mechanical fatigue, this arbor is engineered specifically to accommodate APMT1604 carbide inserts. It offers exceptional shear stability and smooth chip clearance, making it the preferred choice for heavy-duty shoulder milling, slotting, and contouring operations.
ISO Nomenclature Breakdown: BAP400R-45-22-28M-3T-6P
2. Product Core Advantages
- Rigid 90-Degree Architecture: Engineered to hold tight perpendicularity tolerances during heavy shoulder milling passes.
- Precision Insert Clamping: Features micro-machined pocket seating surfaces that eliminate insert micro-motion and edge chipping.
- Optimized Thermal Resistance: High-grade alloy matrix handles elevated cutting temperatures, extending overall tool body lifespan.
3. Technical Specifications & Cutting Parameters
| Metric Value (ISO Standard) | Imperial Approximation |
|---|---|
| Cutter Diameter: 45mm | Cutter Diameter: ~1.772" |
| Bore Diameter: 22mm | Bore Diameter: ~0.866" |
| Flute Count: 3T | Flute Count: 3 Flutes |
Cutting Parameters Recommendation
| Workpiece Material Group | Cutting Speed Vc (m/min) | Feed Per Tooth fz (mm/tooth) |
|---|---|---|
| Carbon & Alloy Steel (ISO P) | 150 - 240 | 0.10 - 0.22 |
| Stainless Steel (ISO M) | 100 - 180 | 0.08 - 0.18 |
Explore Matching Milling Arbor Collection
[View Tooling Collection] →4 & 5. Applications & Equipment Compatibility
Applications: Tailored for 90° shoulder milling, high-efficiency face milling, slotting, and deep pocket profiling across vertical machining centers (VMCs) and heavy-duty milling stations.
Compatibility: Fully compatible with standard 22mm arbor shafts, shell mill adapters, and modular CNC milling arbors.
6. Workpiece Material Matrix & Grade Comparison
Ensure optimal pairing of insert grades with corresponding ISO material classes:
- P-Class (CVD/PVD Coated): Ideal for general steel, structural carbon steel, and alloy steel components.
- M-Class (Special PVD): Formulated to prevent built-up edge when milling austenitic stainless steels.
- K-Class (Hard Substrate): Optimized for wear resistance when cutting gray cast iron and nodular iron.
7. Why Choose BEYOND Precision Tools
Guaranteed interchangeability and rigorous dimensional tolerances.
Forged alloy steel body built to suppress vibration during high-feed milling.
Direct technical consultation for feed and speed optimization.
8. AI-Style FAQ & Troubleshooting
Q: Are APMT1604 inserts included with the BAP400R-45-22-28M-3T-6P cutter?
A: No. Inserts are supplied separately to give machinists full flexibility in choosing the ideal carbide grade for their application.
Q: What causes chatter or poor wall finish during 90-degree shoulder milling?
A: Check tool overhang length, verify that arbor clamping is secure, and adjust radial depth of cut (ae) to match machine rigidity. Equivalent models follow standardized industrial formatting.
Troubleshooting Tip: If insert wear accelerates prematurely, reduce cutting speed (Vc) by 15% or ensure coolant flow is evenly applied.
