BEYOND 16ER/IL (T16E)
Price shown is a starting point. Contact us for a precise quote based on your requirements.
Product Overview

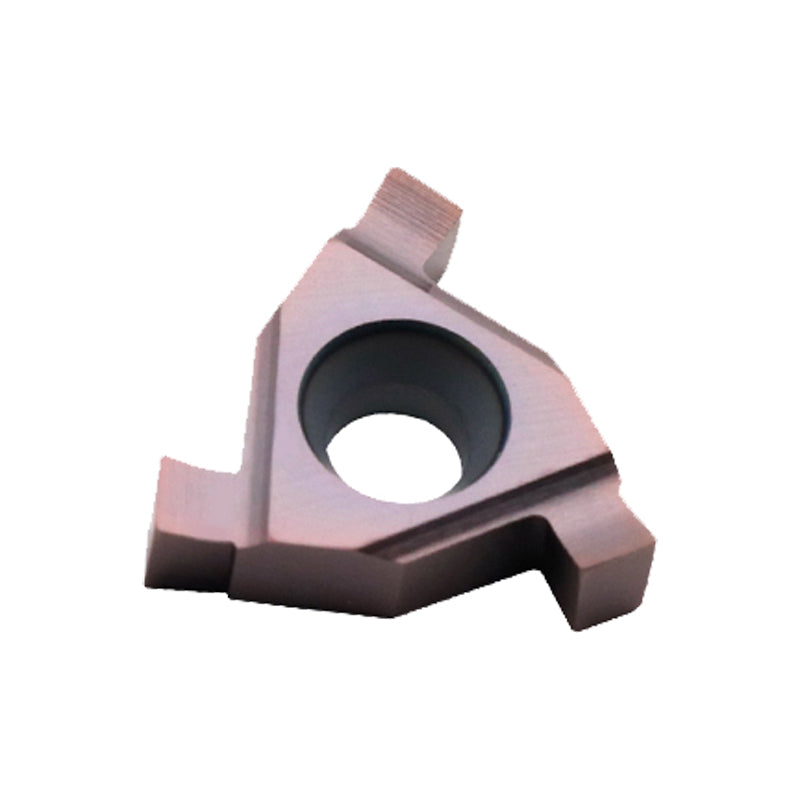

BEYOND 16ER/IL External Grooving Inserts are specially designed for circlip grooves, shallow grooves, and external turning applications on CNC lathes. Made from premium carbide, these inserts deliver excellent wear resistance and stable performance when machining stainless steel and alloy steels.
Key Features
- High-performance carbide inserts for CNC grooving and turning
- Optimized for external circlip grooves and shallow groove machining
- Excellent wear resistance and long tool life
- Suitable for stainless steel, alloy steel, and general steel parts
- Compatible with standard 16ER/IL tool holders
Applications
- CNC external grooving for circlips and retaining rings
- Shallow external groove machining
- Precision turning of stainless steel and steel components
Available Models & Dimensions
The BEYOND 16ER/IL (T16E) and 16IR/EL (T16N) external grooving inserts are available in the following specifications:
| ER/IL (E) TYPE | IR/EL (N) TYPE | A (mm) | T (mm) | S (mm) | L (mm) |
|---|---|---|---|---|---|
| 16 ER/IL 050 (T16E050) | 16 IR/EL 050 (T16N050) | 9.525 | 3.65 | 0.5 | 1.4 |
| 16 ER/IL 060 (T16E060) | 16 IR/EL 060 (T16N060) | 9.525 | 3.65 | 0.6 | 1.4 |
| 16 ER/IL 070 (T16E070) | 16 IR/EL 070 (T16N070) | 9.525 | 3.65 | 0.7 | 1.4 |
| 16 ER/IL 080 (T16E080) | 16 IR/EL 080 (T16N080) | 9.525 | 3.65 | 0.8 | 1.4 |
| 16 ER/IL 090 (T16E090) | 16 IR/EL 090 (T16N090) | 9.525 | 3.65 | 0.9 | 1.4 |
| 16 ER/IL 100 (T16E100) | 16 IR/EL 100 (T16N100) | 9.525 | 3.65 | 1.0 | 1.4 |
| 16 ER/IL 110 (T16E110) | 16 IR/EL 110 (T16N110) | 9.525 | 3.65 | 1.1 | 1.4 |
| 16 ER/IL 120 (T16E120) | 16 IR/EL 120 (T16N120) | 9.525 | 3.65 | 1.2 | 1.4 |
| 16 ER/IL 130 (T16E130) | 16 IR/EL 130 (T16N130) | 9.525 | 3.65 | 1.3 | 1.4 |
| 16 ER/IL 140 (T16E140) | 16 IR/EL 140 (T16N140) | 9.525 | 3.65 | 1.4 | 1.8 |
| 16 ER/IL 150 (T16E150) | 16 IR/EL 150 (T16N150) | 9.525 | 3.65 | 1.5 | 1.8 |
| 16 ER/IL 160 (T16E160) | 16 IR/EL 160 (T16N160) | 9.525 | 3.65 | 1.6 | 1.8 |
| 16 ER/IL 170 (T16E170) | 16 IR/EL 170 (T16N170) | 9.525 | 3.65 | 1.7 | 2.0 |
| 16 ER/IL 180 (T16E180) | 16 IR/EL 180 (T16N180) | 9.525 | 3.65 | 1.8 | 2.0 |
| 16 ER/IL 190 (T16E190) | 16 IR/EL 190 (T16N190) | 9.525 | 3.65 | 1.9 | 2.0 |
| 16 ER/IL 200 (T16E200) | 16 IR/EL 200 (T16N200) | 9.525 | 3.65 | 2.0 | 2.0 |
| 16 ER/IL 210 (T16E210) | 16 IR/EL 210 (T16N210) | 9.525 | 3.65 | 2.1 | 2.2 |
| 16 ER/IL 220 (T16E220) | 16 IR/EL 220 (T16N220) | 9.525 | 3.65 | 2.2 | 2.2 |
| 16 ER/IL 230 (T16E230) | 16 IR/EL 230 (T16N230) | 9.525 | 3.65 | 2.3 | 2.2 |
| 16 ER/IL 240 (T16E240) | 16 IR/EL 240 (T16N240) | 9.525 | 3.65 | 2.4 | 2.2 |
| 16 ER/IL 250 (T16E250) | 16 IR/EL 250 (T16N250) | 9.525 | 3.65 | 2.5 | 2.2 |
| 16 ER/IL 260 (T16E260) | 16 IR/EL 260 (T16N260) | 9.525 | 3.65 | 2.6 | 2.2 |
| 16 ER/IL 270 (T16E270) | 16 IR/EL 270 (T16N270) | 9.525 | 3.65 | 2.7 | 2.2 |
| 16 ER/IL 280 (T16E280) | 16 IR/EL 280 (T16N280) | 9.525 | 3.65 | 2.8 | 2.2 |
| 16 ER/IL 290 (T16E290) | 16 IR/EL 290 (T16N290) | 9.525 | 3.65 | 2.9 | 2.2 |
| 16 ER/IL 300 (T16E300) | 16 IR/EL 300 (T16N300) | 9.525 | 3.65 | 3.0 | 2.2 |
Recommended Tool Holders
These inserts are designed to fit 16ER/IL tool holders for CNC lathes. Compatible with BEYOND and other standard tool holders.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
