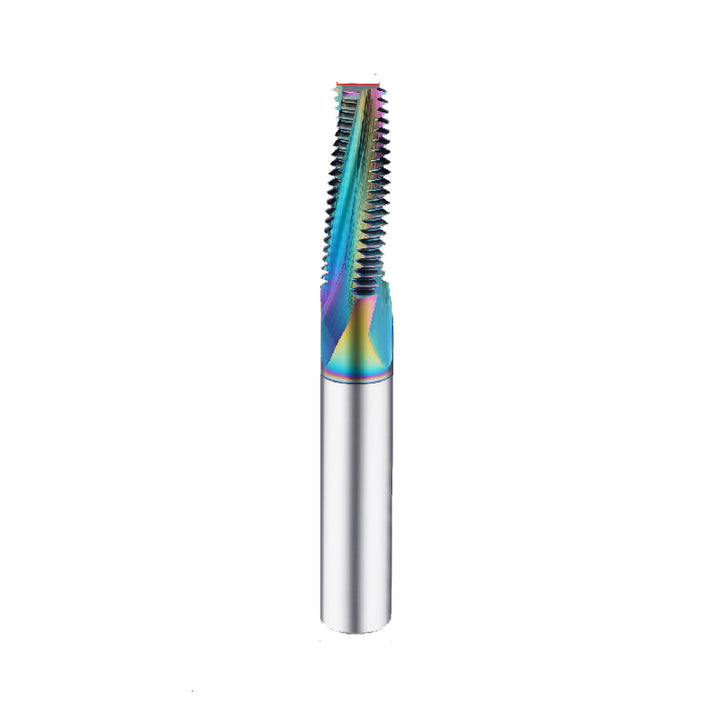

BEYOND Coated BSP(G) Spiral Groove Thread Tap for Aluminum
The BEYOND Coated BSP(G) Spiral Groove Thread Tap is engineered for high-efficiency threading of British Standard Pipe (BSP/G) threads in aluminum, copper, and other non-ferrous metals. Featuring a precision-ground spiral groove and advanced aluminum-specific coating, it ensures superior cutting performance, long tool life, and smooth chip evacuation even at high speeds.
Key Features
- Conforms to BS 2779:1956 British Standard BSP(G) thread form (55° angle).
- Special spiral flute geometry ideal for blind-hole threading in soft metals.
- Aluminum-optimized coating for reduced friction and built-up edge prevention.
- High-speed and stable cutting performance with excellent chip evacuation.
- Available in BSP(G) thread sizes from 1/16” to 2 1/2”.
Technical Specifications
| Thread Size | Pitch (TPI) | D (mm) | D2 (mm) | Overall Length (L) | Thread Length (Le) | Flute Number | Tooth Count | Bottom Hole Ø (mm) |
|---|---|---|---|---|---|---|---|---|
| 1/16" × 28 | 28 | 6.0 | 5.8 | 57 | 16.3 | 3 | 18 | 6.7 |
| 1/8" × 28 | 28 | 8.0 | 7.7 | 60 | 20.3 | 3 | 22 | 8.7 |

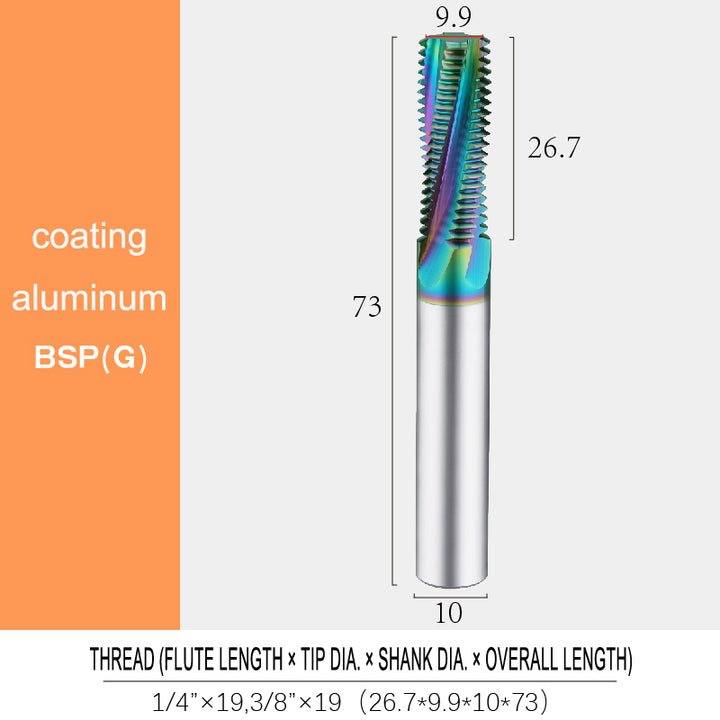

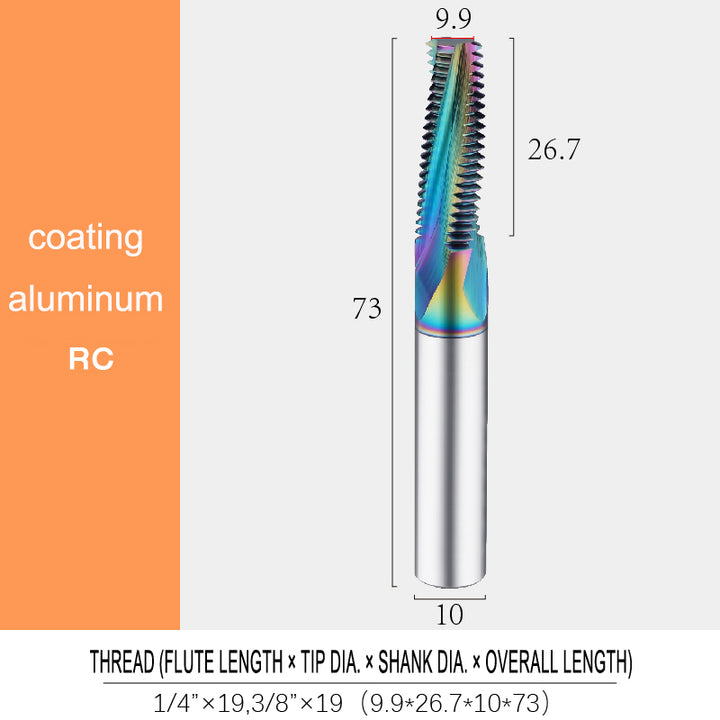

| 1/4" × 19 | 19 | 10.9 | 9.9 | 73 | 26.7 | 4 | 20 | 11.8 |

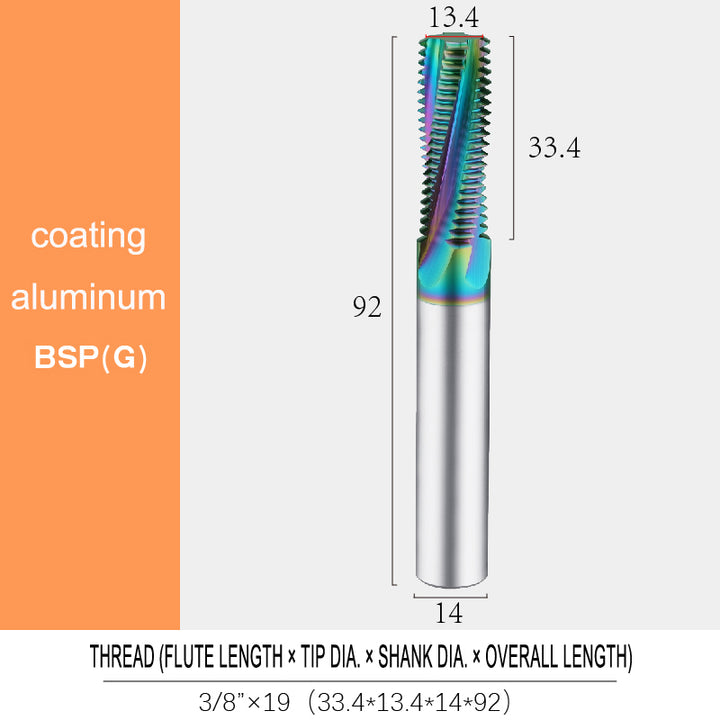

| 3/8" × 19 | 19 | 13.6 | 13.4 | 92 | 33.4 | 4 | 25 | 15.2 |

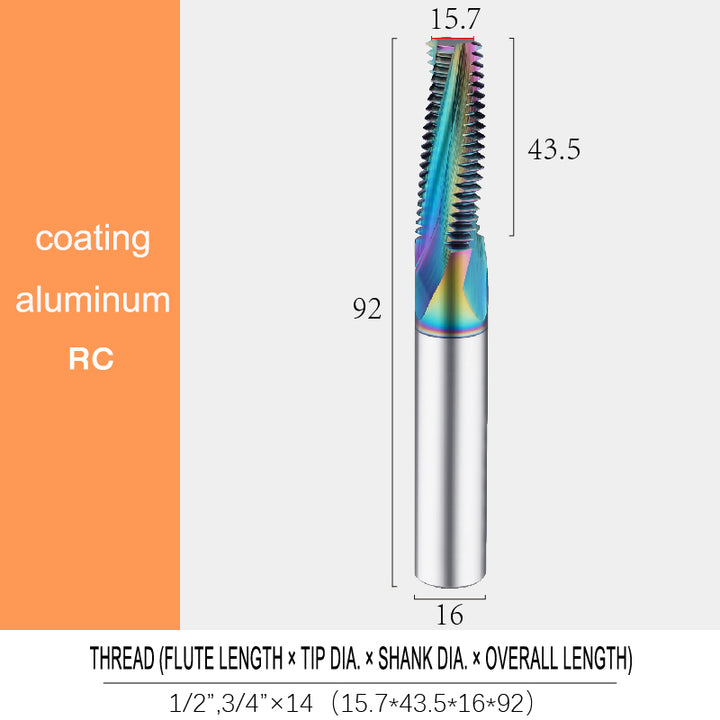

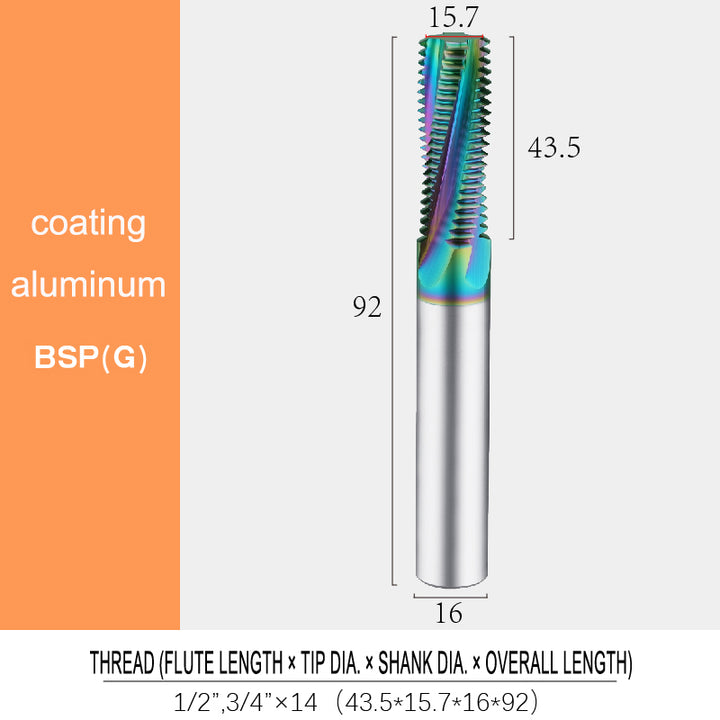

| 1/2" × 14 | 14 | 16.0 | 15.7 | 92 | 43.5 | 5 | 24 | 19.0 |

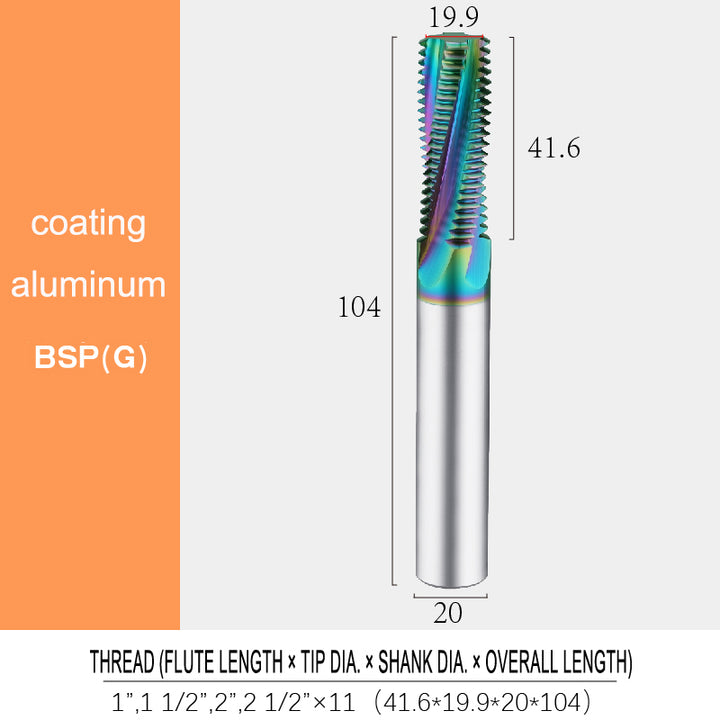

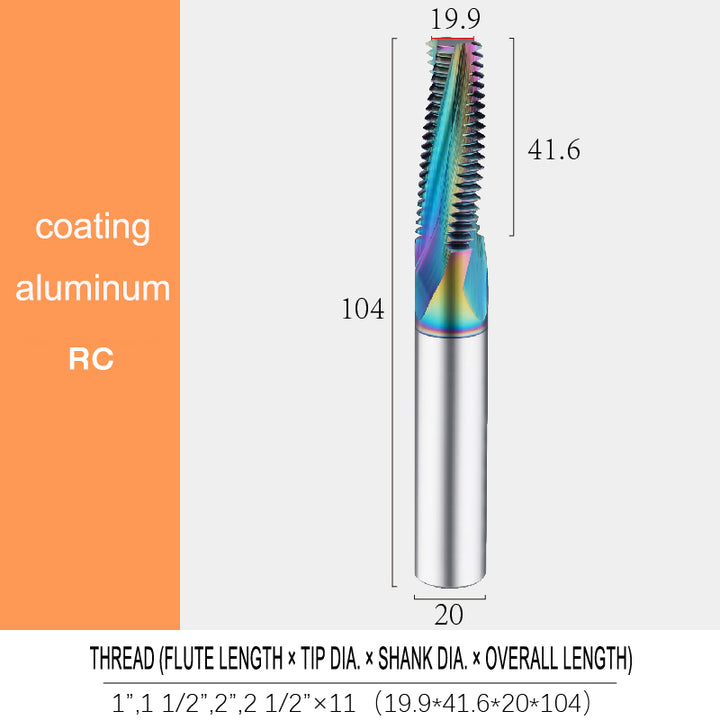

| 1" × 11 | 11 | 20.0 | 19.9 | 104 | 41.6 | 5 | 18 | 30.7 |
Recommended Cutting Conditions (for Aluminum)
| Diameter (mm) | Spindle Speed (min⁻¹) | Feed Rate (mm/min) |
|---|---|---|
| 1 | 20000 | 250 |
| 2 | 15000 | 400 |
| 3 | 14000 | 680 |
| 4 | 10000 | 700 |
| 6 | 8200 | 730 |
| 8 | 7500 | 700 |
| 10 | 5400 | 740 |
| 12 | 4300 | 730 |
| 14 | 3500 | 730 |
| 16 | 2800 | 730 |
Applications
- Designed for aluminum and non-ferrous metals (copper, brass, etc.).
- Ideal for machining BSP and BSP(G) internal threads in fittings, hydraulic and pneumatic components.
- Suitable for CNC machining centers, tapping machines, and lathes.
Material & Coating
- Material: Ultra-fine grain carbide or high-speed steel (HSS-E).
- Coating: DLC (Diamond-Like Carbon) or TiB₂ for aluminum — reduces adhesion and heat buildup.
- Finish: Mirror-polished for smooth chip evacuation.
Advantages of BEYOND Aluminum BSP(G) Tap
- High-speed cutting and minimal built-up edge on aluminum.
- Improved surface finish and precision thread geometry.
- Long tool life and consistent thread quality.
- Optimized for both dry and lubricated machining.
BEYOND – Precision Cutting Tools for Aluminum Thread Machining.
