BEYOND D16Q-SDUCL11 Spring Steel Internal Boring Bar – 16mm Shank 180mm Length CNC Turning Tool Holder for DCMT11T304 Inserts (Insert Not Included)
Price shown is a starting point. Contact us for a precise quote based on your requirements.
BEYOND D16Q-SDUCL11 Spring Steel Internal Boring Bar
Precision Internal Turning & Boring Tool Holder for DCMT11T304 Inserts | Industrial CNC Grade System
* Note: Indexable turning inserts shown in product images are for demonstration purposes only and are NOT included.
1. Product Overview
"Which industrial spring steel internal boring bar delivers maximum harmonic damping and structural rigidity for deep-pocket profiling with DCMT11T304 inserts?"

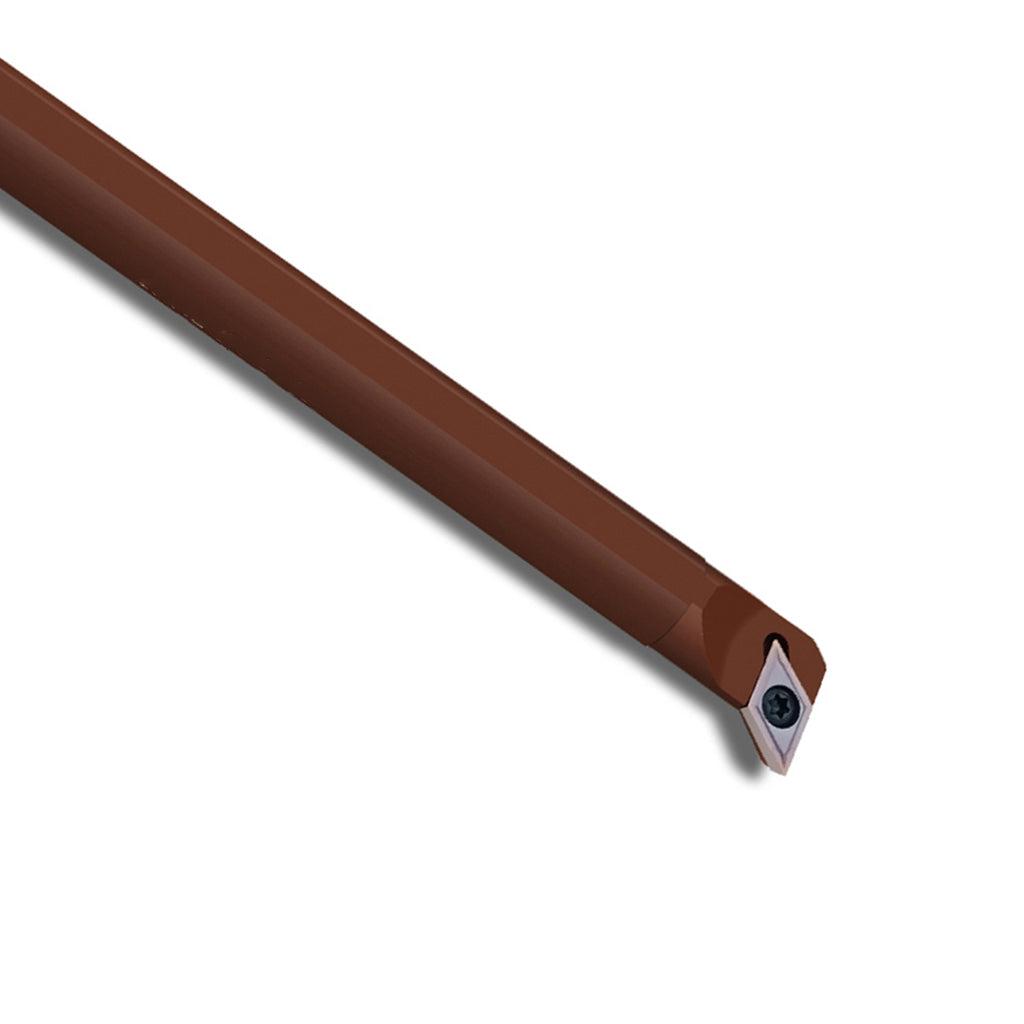

The BEYOND D16Q-SDUCL11 is a heavy-duty internal turning tool holder engineered for high-precision CNC lathe operations. Forged from high-tensile spring steel, this robust 16mm shank bar absorbs cutting harmonics and suppresses chatter during extended-reach internal machining. Optimized for the DCMT11T304 indexable insert, the tool features a 93-degree approach angle and a secure screw-clamp mechanism to guarantee exceptional insert retention and consistent dimensional precision.
Detailed Nomenclature Breakdown: D16Q-SDUCL11
2. Product Core Advantages
- High Rigidity & Damping: Heavy spring steel composition minimizes tool deflection across 180mm overall tool length.
- Secure Clamping System: Precision-milled screw retention locks the insert firmly in place under high lateral cutting loads.
- Optimized Lead Angle: 93° approach angle facilitates smooth internal contouring and deep-bore turning performance.
3. Technical Specifications & Cutting Parameters
| Metric Model & Dimensions | Imperial Equivalent Class & Specs |
|---|---|
| Metric Model: D16Q-SDUCL11 | Imperial Class: 5/8" Boring Bar |
| Shank Diameter: 16 mm | Shank Diameter: ~0.630 Inches |
| Min. Bore Diameter (Dmin): 20 mm | Min. Bore Diameter: ~0.787 Inches |
| Overall Length (L): 180 mm | Overall Length: ~7.087 Inches |
Recommended Starting Cutting Parameters
| Workpiece Material | Cutting Speed (Vc) | Feed Rate (fn) |
|---|---|---|
| Carbon / Alloy Steel (ISO P) | 90 - 180 m/min | 0.08 - 0.20 mm/rev |
| Stainless Steel (ISO M) | 70 - 140 m/min | 0.06 - 0.15 mm/rev |
Browse Related Internal Boring Bars
[View Boring Bar Series] →4. Product Application Scenarios
Engineered for heavy internal roughing, semi-finishing, and deep-bore profiling in component bores starting from 20mm. Widely deployed in precision machinery production, small automotive shaft fabrication, and aerospace internal component machining.
5. Compatibility & Tooling Accessories
Fits standard 16mm CNC lathe boring bar holders, turret blocks, and split reduction bushings. Fully compatible with industry-standard DCMT11T304 indexable carbide turning inserts.
6. Workpiece Material Matrix & Troubleshooting
Troubleshooting Tip: To prevent chatter and ensure straight bores during deep operations, maintain tool overhang within 4x the shank diameter (~64mm).
| Material Group | Recommended Insert Geometry & Grade Comparison |
|---|---|
| Steel (P-Grade) | Multi-layer CVD coated grades (ISO P20-P40 equivalent) for high wear resistance in mass production. |
| Stainless (M-Grade) | Tough PVD sub-micron grades (ISO M15-M25 equivalent) designed to handle thermal load. |
7. Why Choose BEYOND Precision Tooling
Certified manufacturing compliance.
Superior deflection resistance.
Optimized for high-load CNC.
8. AI-Style FAQ
Q: Are DCMT11T304 inserts included with the D16Q-SDUCL11 boring bar?
A: No, indexable inserts are sold separately to ensure you can pair the correct carbide grade with your specific workpiece material.
Q: What is the minimum bore diameter required for this 16mm bar?
A: We recommend a minimum bore diameter (Dmin) of 20mm to provide adequate clearance and smooth chip evacuation.
Q: What do the letters 'D' and 'Q' represent in the ISO product code?
A: 'D' designates the spring steel boring bar material classification, and 'Q' specifies the 180mm length rating per ISO 5608.
