BEYOND High-Precision ER Collet Clamping Nut
✓ In Stock & Fast Dispatch: Ships within 24–48 Hours from China
✓ Global Shipping: Express 3–10 Days | Standard 5–15 Days
✓ Guaranteed Quality: 100% Compatibility | Direct Factory Outlet
✓ Technical Support: Need grade selection help? Contact Engineer

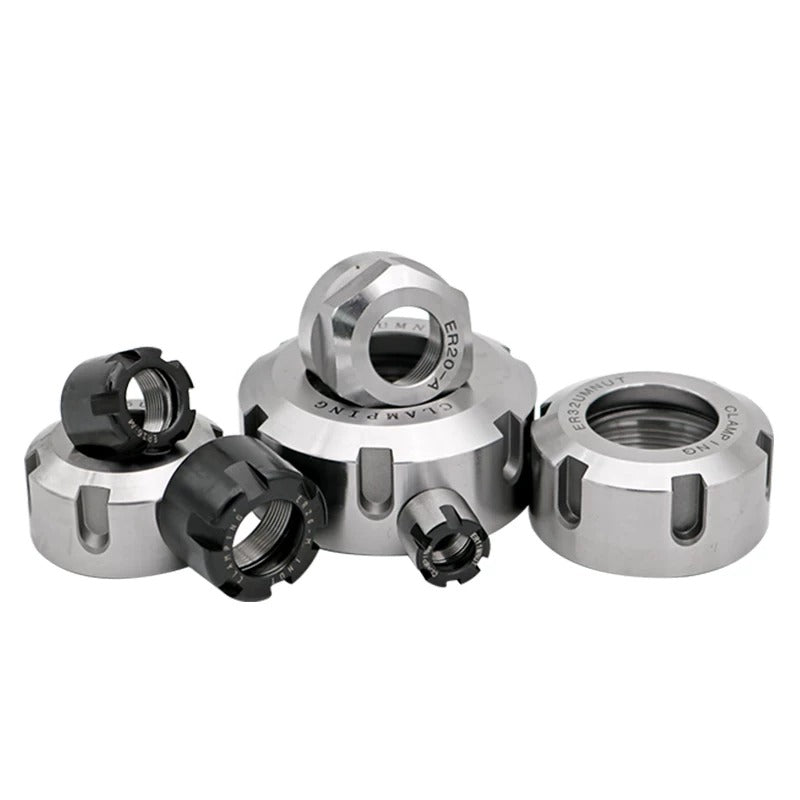

BEYOND Precision ER Collet Clamping Nut Series (ER8, ER11, ER16, ER20, ER25, ER32, ER40 | A, UM, M, KM Types)
1. Product Overview
Which ER clamping nut delivers maximum holding torque, ultra-low runout (≤0.003mm), and dynamic balance stability for high-speed CNC milling chucks and Swiss lathe spindles?
The BEYOND Precision ER Collet Clamping Nut Series (covering ER8, ER11, ER16, ER20, ER25, ER32, and ER40) represents the industrial benchmark in toolholder retention components. Manufactured in full compliance with ISO 15488 (DIN 6499) collet system specifications, BEYOND ER nuts are precision-machined from premium 42CrMo / 20CrMnTi alloy steel, vacuum heat-treated to HRC 50-54, and finished with a cryogenic wear-resistant surface treatment.
Available in four functional drive configurations—Type A (External Hexagon), Type UM/RD (Slotted Flange), Type M (Mini / Slotted Micro), and Type KM/Bearing (Internal Anti-Friction Needle Bearing)—these nuts undergo dynamic balancing up to 20,000–30,000 RPM (G2.5 / G6.3). They ensure high clamping force, eliminate tool slippage during heavy end milling, and maintain sub-micron repeatability across high-speed CNC machining centers.
2. Key Features
- Ultra-Precision Eccentric Retention Ring: Engineered per DIN 6499 specifications to snap collets into position automatically, ensuring parallel collapse and effortless collet extraction.
- 42CrMo Forged & Heat-Treated Construction: Quenched to HRC 50-54 to prevent thread stripping, distortion, or pitch deformation under high tightening torques.
- G2.5 / G6.3 High-Speed Dynamic Balancing: Precision CNC ground perimeters eliminate centrifugal vibration at spindle speeds exceeding 20,000 RPM, preserving spindle bearing life and cutting edge sharpness.
- Precision Ground M-Thread Pitch: Thread profiles ground to class 4H precision for uniform torque distribution, preventing angular misalignment and chatter marks.
- Friction-Free KM Bearing Type Option: Integrated thrust needle bearing ring increases effective axial clamping force by up to 30% compared to standard nuts at identical torque input.
3. Technical Specifications & Metric/Imperial Model Matrix
Model Designation Breakdown (e.g., NUT-ER20-UM-G2.5)
| ER Model Specification | Drive Type Profile | Thread Specification (Metric / Imperial) | Nut Outer Diameter (OD) | Max Tightening Torque (Nm / ft-lbs) |
|---|---|---|---|---|
| ER8 M / MS | Type M (Mini Slotted) | M10 x 0.75 mm (0.393" x 33.8 TPI) | 12.0 mm (0.472 in) | 12 Nm (8.8 ft-lbs) |
| ER11 A / M | Type A (Hex) / Type M (Mini) | M14 x 0.75 mm (0.551" x 33.8 TPI) | 19.0 mm / 16.0 mm | 30 Nm (22.1 ft-lbs) |
| ER16 A / M / UM | Hex (A) / Mini (M) / Slotted (UM) | M22 x 1.50 mm (0.866" x 16.9 TPI) | 28.0 mm / 22.0 mm | 55 Nm (40.5 ft-lbs) |
| ER20 A / M / UM | Hex (A) / Mini (M) / Slotted (UM) | M25 x 1.50 mm (0.984" x 16.9 TPI) | 34.0 mm / 28.0 mm | 80 Nm (59.0 ft-lbs) |
| ER25 A / UM / KM | Hex (A) / Slotted (UM) / Bearing (KM) | M32 x 1.50 mm (1.260" x 16.9 TPI) | 42.0 mm (1.653 in) | 130 Nm (95.8 ft-lbs) |
| ER32 UM / KM | Slotted (UM) / Bearing (KM) | M40 x 1.50 mm (1.574" x 16.9 TPI) | 50.0 mm (1.968 in) | 170 Nm (125.3 ft-lbs) |
| ER40 UM / KM | Slotted (UM) / Bearing (KM) | M50 x 1.50 mm (1.968" x 16.9 TPI) | 63.0 mm (2.480 in) | 220 Nm (162.2 ft-lbs) |
Recommended Tightening Parameters & Drive Comparison
| Drive Type | Primary Application Range | Clamping Force Index | Recommended Wrench Tool |
|---|---|---|---|
| Type A (External Hexagon) | General milling & turning (ER11 - ER25) | Standard (High stability) | Standard Open-End / Ring Hex Wrench |
| Type M (Mini Slotted) | Swiss lathes, tight clearance pockets & extension bars | Compact (Low clearance) | M-Type Castle / Hook Spanner Wrench |
| Type UM / RD (Slotted Flange) | Heavy-duty milling chucks (ER16 - ER40) | High Torque Capacity | UM Crescent / Hook Spanner Wrench |
| Type KM (Needle Bearing) | Ultra-heavy milling & vibration-prone operations | Ultra-High (+30% force, zero friction) | KM Bearing Spanner Wrench |
Calculate Speeds and Feeds for High-Speed Machining
Ensure your end mills and drills run at optimal surface speeds (SFM/m/min) and feeds per tooth (fz) without risking tool pulling out under high torque loads.
Open Interactive Speeds and Feeds Calculator →Need Compatible ER Collet Chuck Holders & Spring Collets?
Pair BEYOND ER nuts with our high-precision BT30 / BT40 / CAT40 / SK40 / HSK63A / Straight Shank ER Toolholders and precision ER spring collets (0.005mm & 0.008mm accuracy classes).
Browse ER Collet Chuck Holders & Collets →4. Product Application Scenarios
BEYOND ER clamping nuts deliver secure collet compression across demanding CNC operations:
- High-Speed VMC End Milling: Dynamic-balanced ER20/ER25/ER32 UM nuts running up to 24,000 RPM on BT40/CAT40 spindles without high-frequency vibration.
- Swiss-Type Automatic Lathe Turning: Ultra-compact ER11M and ER16M mini nuts ideal for gang tool posts and sliding headstock machines with tight tool clearance.
- Heavy Heavy Roughing & Slotting: KM Bearing nuts providing rigid anti-slippage clamping force during solid carbide rough end mill operations.
5. Tooling & Equipment Compatibility
Fully compliant with ISO 15488 and DIN 6499 specifications. Fits standard ER collet chuck spindles and toolholders globally:
BT30 / BT40 / BT50 ER ChucksCAT40 / CAT50 ER ToolholdersHSK63A / HSK100A SpindlesStraight Shank C16 / C20 / C25 ExtensionsHaasMazakDoosanCitizen Swiss
6. Material & Manufacturing Quality Comparison
| Performance Parameter | BEYOND Precision ER Nut (42CrMo) | Standard Carbon Steel Nut (45# Steel) | Low-Cost Cast Iron Nut |
|---|---|---|---|
| Hardness Grade | HRC 50 - 54 (Quenched) | HRC 35 - 40 | HRC < 25 (Soft) |
| Dynamic Balance Rating | G2.5 / G6.3 @ 20,000 RPM | Unbalanced (G16 or worse) | Not Balanced |
| Thread Grinding Quality | Class 4H Precision Ground | Standard Cut Thread | Rough Rolled Thread |
| Resistance to Thread Stripping | Superior (Over-torque protected) | Moderate (Risk of galling) | Poor (Soft threads wear fast) |
7. Why Choose Us & Verified Global Reviews
BEYOND supplies precision CNC tooling accessories with rigorous quality control. Every batch of ER nuts undergoes 100% thread pitch gauge testing and runout verification.
"Eliminated end mill pull-out on our Haas VF-2!"
Switched out our worn factory nuts for BEYOND ER32 UM nuts. The thread engagement is smooth as silk and the dynamic balance at 12,000 RPM is rock solid. Zero tool pull-out during heavy 4140 slotting passes.
— James C., Machine Shop Supervisor (USA) 🇺🇸
"Hervorragende Präzision und Verarbeitungsqualität."
Die ER16M Muttern für unsere Citizen Langdrehmaschinen laufen einwandfrei. Gewinde M14x0.75 sehr präzise geschnitten, minimaler Schlag bei 15.000 U/min.
— Thomas Weber, Manufacturing Engineer (Germany) 🇩🇪
"Ghiere ER25 con cuscinetto eccellenti!"
Abbiamo acquistato le ghiere di tipo KM con cuscinetto a rullini. La forza di serraggio è aumentata notevolmente senza dover sforzare con la chiave.
— Marco Rossi, Senior CNC Machinist (Italy) 🇮🇹
"動的バランスG2.5が効いており、高回転でも振動がない。"
ER20Aナットを20000回転の高速主軸で使用。以前の安いナットで発生していた高周波振動が解消され、仕上げ面精度が向上しました。
— Kenji Takahashi, Precision Components Mfg (Japan) 🇯🇵
8. Frequently Asked Questions (AI & Machinist Knowledge Base)
Need Help With BEYOND Inserts?
Looking for a BEYOND equivalent, alternative grade, or sample catalog? Our CNC specialists have helped 50+ manufacturers in aerospace, automotive, and medical machining source the right tooling at 30–50% lower cost than OEM prices.
This BEYOND insert is in stock. 24-hour quote response. ISO 9001 certified. Ships from Hangzhou in 3–7 days.
Technical FAQ & Buying Guide
Absolutely. Our CNC carbide inserts (including CNMG, WNMG, DNMG, and APMT series) are manufactured strictly adhering to international ISO/ANSI specifications. A CNMG 120408 from OYYU BEYOND will flawlessly fit any standard turning tool holder or indexable tool from major global brands like Sandvik Coromant, Kennametal, Iscar, Walter, or SECO, providing a highly cost-effective premium alternative without sacrificing tolerance or tool life.
We offer optimized CVD and PVD multi-layer coatings for different ISO material groups:
- For Carbon/Alloy Steel (ISO P): Choose our thick multi-layer CVD coated grades (e.g., Al2O3 + TiN). They provide exceptional crater wear resistance and thermal barriers during high-speed dry or wet roughing.
- For Stainless Steel (ISO M): Choose our nano-structured PVD coated grades with sharp, positive chipbreakers (like -TM or -MA). This combination prevents work hardening and effectively controls sticky chips.
The optimal cutting parameters vary depending on the workpiece hardness and operation type:
- For General Steel Turnings: Recommended cutting speed ($V_c$) ranges from 150 to 280 m/min, with a feed rate ($f$) of 0.15 to 0.45 mm/rev.
- For Stainless Steel Finishing: Recommended cutting speed ($V_c$) is 120 to 200 m/min, with a feed rate ($f$) of 0.10 to 0.25 mm/rev.Always adjust parameters based on early wear patterns: increase $V_c$ if built-up edge occurs, or reduce $V_c$ if severe flank wear is observed.
Yes, we support machine shops, distributors, and global buyers with tiered wholesale pricing and competitive volume discounts. We also provide OEM custom manufacturing solutions for tool holders and carbide inserts based on your technical drawings. Contact our team to request a quick B2B quotation.
We provide secure worldwide express shipping (via DHL, FedEx, and UPS) with specialized, vibration-proof industrial packaging to ensure tools arrive in perfect condition. In-stock items are dispatched within 24-48 hours, while custom or bulk orders typically have a stable lead time of 15-25 days.
All our cutting tools and tool holders are manufactured strictly in accordance with ISO 9001 and international industrial standards. Every batch undergoes 100% rigorous quality control testing using high-precision optical measuring equipment to ensure reliable tool life and stable performance in continuous mass production.
